Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Front Controls Interface Module (FCIM). Refer to Section 415-00C.
  2. Remove the 4 screws and remove the Front Control/Display Interface Module (FCDIM).
    • Disconnect the electrical connector.
    • To install, tighten to 2.5 Nm (23 lb-in).

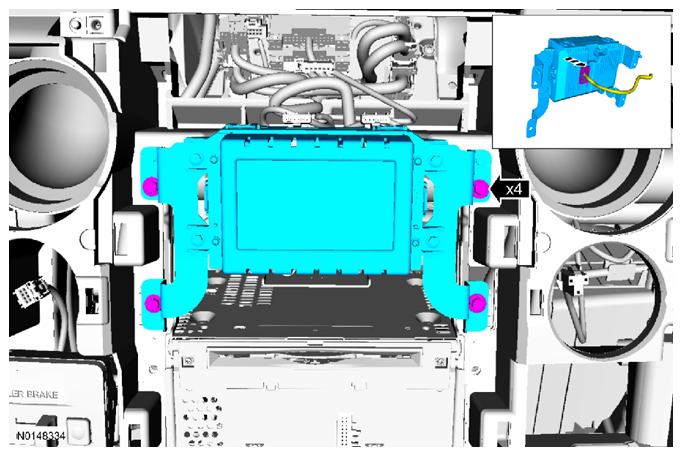

      Fig 1: Removing Front Control/Display Interface Module Electrical Connector
      G08342540Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
