Toe Link: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

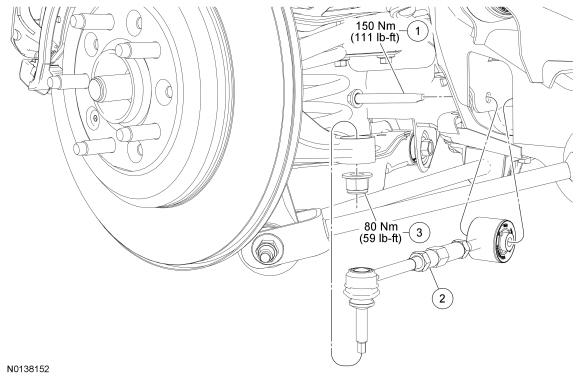

| Item | Part Number | Description |
|---|---|---|
| 1 | W715179 | Toe link-to-subframe bolt |
| 2 | 5A972 | Toe link |
| 3 | W520214 | Toe link-to-wheel knuckle nut |
