Trailing Arm: Notes

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

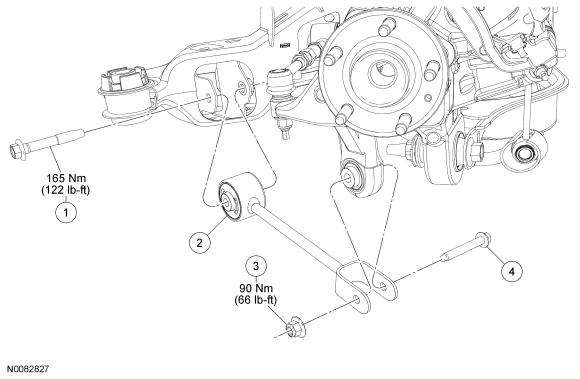

Fig 1: Rear Trailing Arm Replacement Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W715419	Trailing arm-to-subframe bolt
2	5B674	Trailing arm
3	W707246	Trailing arm-to-wheel knuckle nut
4	W500747	Trailing arm-to-wheel knuckle bolt
