Console - Overhead: Notes
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

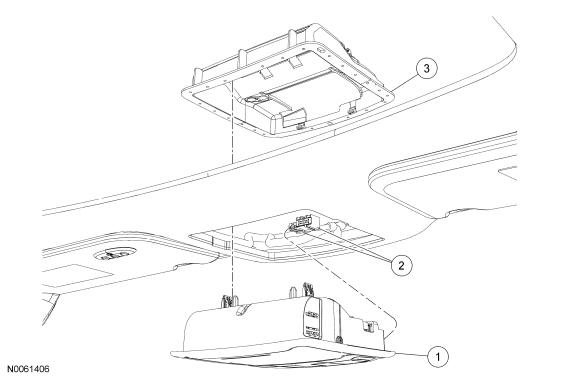

Overhead console with roof opening panel is shown in illustration, overhead console without roof opening panel is similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 519A58 | Overhead console |
| 2 | - | Overhead console electrical connectors |
| 3 | 045B34 | Overhead console bracket |
