Instrument Panel - Exploded View
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

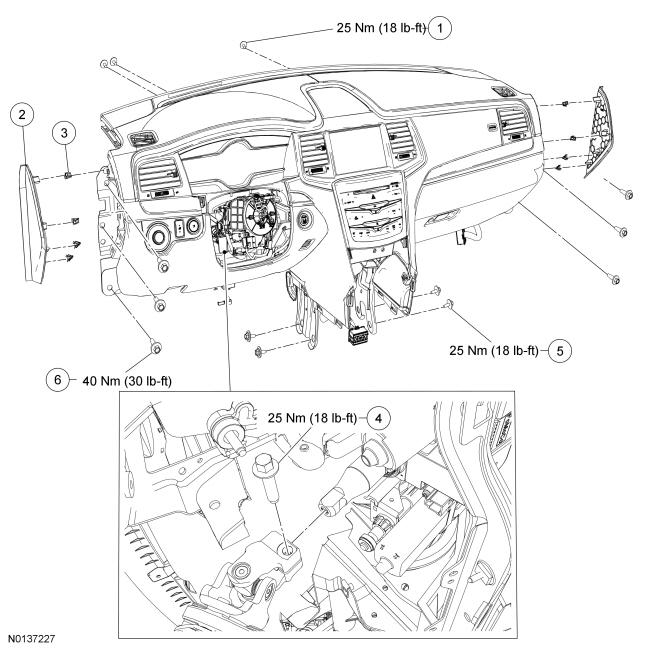

Instrument Panel Trim Panel and Fasteners
| Item | Part Number | Description |
|---|---|---|
| 1 | W709178 | Instrument panel upper cowl bolt (3 required) |
| 2 | 04480 RH 04481 LH RH 04481 LH | Instrument panel side trim panel |
| 3 | W705289 | Instrument panel side finish panel retaining clip (4 required per side) |
| 4 | W712961 | Steering column shaft-to-steering column bolt |
| 5 | W709268 | Instrument panel center support bracket bolt (4 required) |
| 6 | W710259 | Instrument panel side bolt (6 required) |

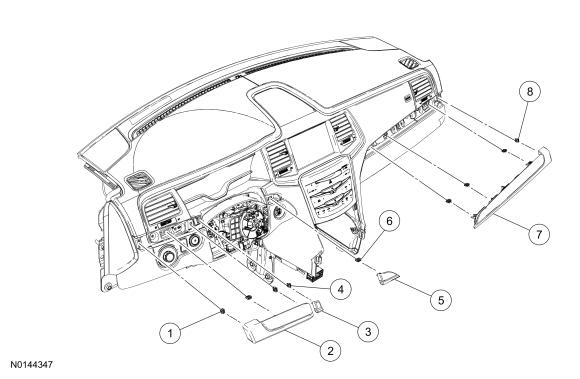

Instrument Panel Finish Mouldings and Appliques
| Item | Part Number | Description |
|---|---|---|
| 1 | W714086 | LH instrument panel finish applique retaining clip (3 required) |
| 2 | 5404388 | LH instrument panel finish applique |
| 3 | 54044A90 | LH instrument panel finish moulding |
| 4 | W714086 | LH instrument panel finish moulding clip (1 required) |
| 5 | 54042A82 | LH instrument panel finish applique (small) |
| 6 | W714086 | LH instrument panel finish applique (small) retaining clip (1 required) |
| 7 | 5404388 | RH instrument panel finish applique |
| 8 | W714086 | RH instrument panel finish applique retaining clip (4 required) |

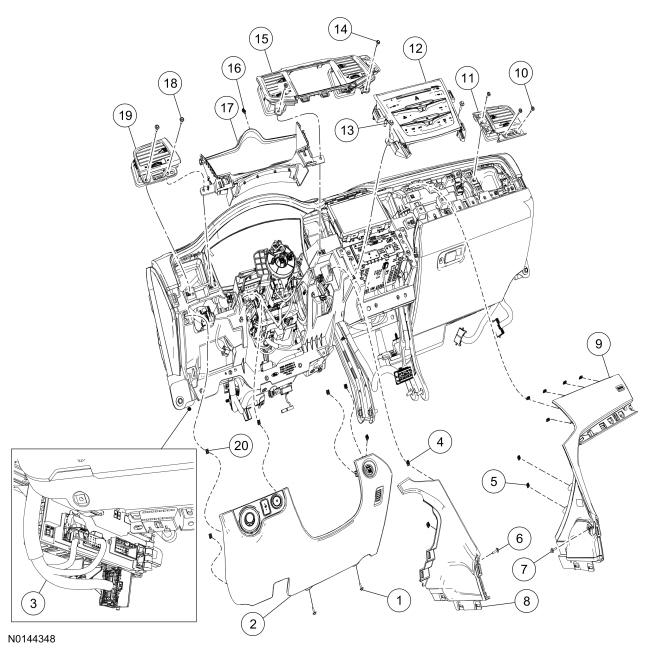

Instrument Panel Finish and Trim Panels
| Item | Part Number | Description |
|---|---|---|
| 1 | N808453 | Steering column opening trim panel screw (2 required) |
| 2 | 5404459 | Steering column opening trim panel |
| 3 | 14401 | LH instrument panel wiring harness |
| 4 | W714086 | LH instrument panel finish panel retaining clip (3 required) |
| 5 | W714086 | RH instrument panel finish panel retaining clip (8 required) |
| 6 | W707628 | LH instrument panel finish panel retaining bolt (1 required) |
| 7 | W707628 | RH instrument panel finish panel retaining bolt (1 required) |
| 8 | 54046A63 | LH instrument panel finish panel |
| 9 | 54046A62 | RH instrument panel finish panel |
| 10 | W707628 | RH instrument panel register screw (3 required) |
| 11 | 19893 | RH instrument panel register |
| 12 | 18A802 | Front Controls Interface Module (FCIM) |
| 13 | W707628 | Front Controls Interface Module(FCIM) bolt (2 required) |
| 14 | W707628 | Center instrument panel finish panel bolt (3 required) |
| 15 | 5404302 | Center instrument panel finish panel |
| 16 | W714972 | Instrument cluster finish panel clip (1 required) |
| 17 | 54044D70 | Instrument cluster finish panel |
| 18 | W707628 | LH instrument panel register screw (2 required) |
| 19 | 19893 | LH instrument panel register |
| 20 | W714086 | Steering column opening trim panel clips (5 required) |

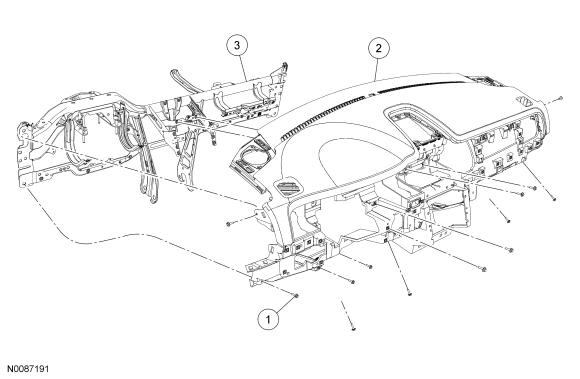

Instrument Panel Upper Section
| Item | Part Number | Description |
|---|---|---|
| 1 | W707628 | Instrument panel upper section screw (13 required) |
| 2 | 04320B | Instrument panel upper section |
| 3 | 04545 | In-vehicle crossbeam |
