Piston Selection
WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Check
- Refer to specifications for piston selection.
Refer to: Specifications - 2.7L .
Refer to: Specifications - 3.5L Duratec .
Refer to: Specifications - 3.5L EcoBoost .
Refer to: Engine - 5.0L 32V Ti-VCT .
-
NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston.

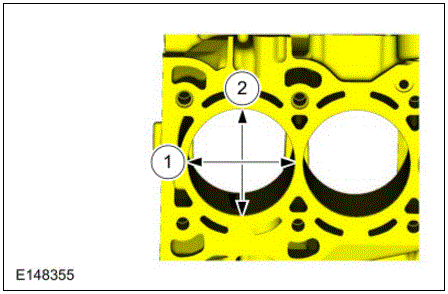

- Measure the cylinder bore in 2 directions.
- Select a piston size based on the cylinder bore.
