Driveshaft - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

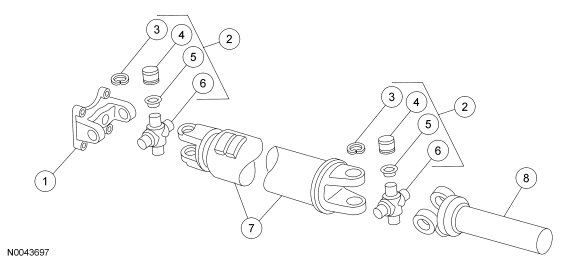

| Item | Part Number | Description |
|---|---|---|
| 1 | 4782 | Flange |
| 2 | 4635 | Universal joint |
| 3 | - | Snap ring (part of 4635) |
| 4 | - | Bearing (part of 4635) |
| 5 | - | Seal (part of 4635) |
| 6 | - | Spider (part of 4635) |
| 7 | 4602 | Driveshaft |
| 8 | 4841 | Driveshaft slip yoke |
| Item | Part Number | Description |
|---|---|---|
| 1 | 4A378 | Rear flange |
| 2 | - | Spider (part of 4635) |
| 3 | - | Bearing cup (part of 4635) |
| 4 | - | Snap ring (part of 4635) |
| 5 | 4602 | Driveshaft |
| 6 | 3B478 | Driveshaft slip-yoke boot clamp |
| 7 | 4421 | Universal joint slip-yoke boot |
| 8 | - | Driveshaft slip-yoke (part of 4602) |
| 9 | 4A378 | Front flange |

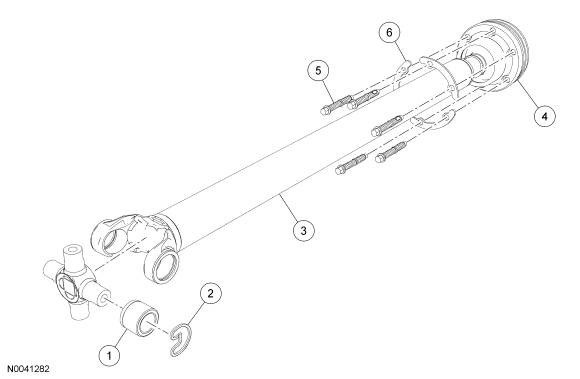

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Universal joint |
| 2 | - | Snap rings |
| 3 | 4A376 | Front driveshaft |
| 4 | - | Constant velocity (CV) joint |
| 5 | - | CV joint bolts and washers |
| 6 | - | CV joint retainers |
- The above graphics show driveshaft complete disassembly.
