Axle Assembly: Notes
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

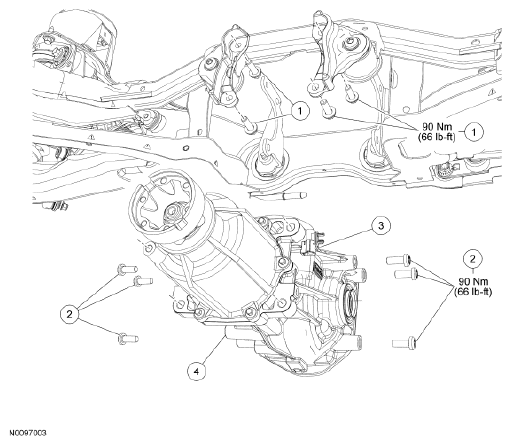

| Item | Part Number | Description |
|---|---|---|
| 1 | W713482 | Differential housing-to-front insulator bracket bolts (4 required) |
| 2 | W709862 | Side insulator bracket-to-rear axle differential bolts (6 required) |
| 3 | - | Active Torque Coupling (ATC) electrical connector (part of 4000) |
| 4 | 4000 | Rear axle assembly |
