Lower Valve Body

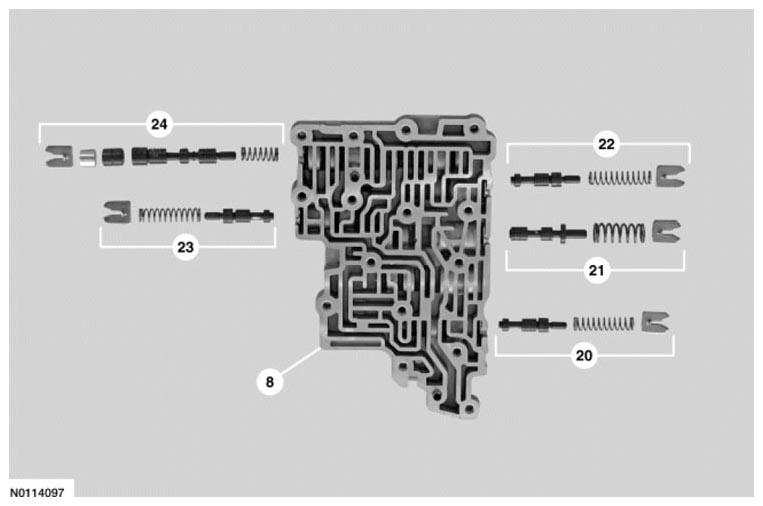

Fig 1: Identifying Lower Valve Body Components Location
G06542507Courtesy of FORD MOTOR CO.
Item Description
1 Bolts - M6 x 63
2 Bolts - M6 x 35
3 Cover - transfer plate
4 Case-to-valve body transfer plate
5 Separator plate - valve body-to-transfer plate
6 Main control valve body
7 Separator plate - main control valve body-to-lower valve body
8 Lower valve body assembly
9 Check balls
10 Low/reverse and overdrive clutch regulator valve assembly
11 Torque Converter Clutch (TCC) regulator apply valve assembly
12 Intermediate clutch regulator valve assembly
13 Direct clutch regulator valve assembly
14 Pressure regulator valve assembly
15 Isolator valve assembly
16 TCC control valve assembly
17 Multiplex manual valve assembly
18 Multiplex shift valve assembly
19 Manual valve
20 Direct clutch boost valve assembly
21 Solenoid regulator valve assembly
22 Low/reverse and overdrive clutch boost valve assembly
23 Forward clutch boost valve assembly
24 Forward clutch regulator valve assembly
    NOTE: Note the location of the different length bolts for assembly.
    Fig 2: Locating Transfer Plate Cover Assembly Bolts
    G06068472Courtesy of FORD MOTOR CO.
  1. Remove the 6 bolts and remove and discard the transfer plate cover assembly.
    2. NOTE: Note the location of the different length bolts for assembly.
    Fig 3: Locating Transfer Plate Assembly Bolts
    G06068473Courtesy of FORD MOTOR CO.
  2. Remove the 5 valve body bolts and the transfer plate assembly.
  3. Remove and discard the valve body separator plate.
    Fig 4: Locating Valve Body Separator Plate And Gasket
    G06076329Courtesy of FORD MOTOR CO.
    4. NOTE: Note the location of the check balls for assembly.

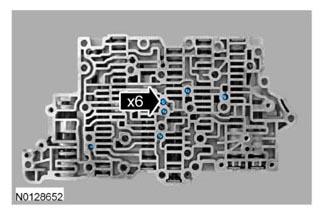

    Fig 5: Locating Check Balls From Valve Body
    G08001220Courtesy of FORD MOTOR CO.
  4. Remove the 6 check balls from the valve body.
  5. Remove the lower valve body assembly.
    Fig 6: Locating Lower Valve Body Assembly
    G06068482Courtesy of FORD MOTOR CO.
  6. Remove and discard the lower valve body separator plate and gasket.
    Fig 7: Locating Lower Valve Body Separator Plate And Gasket
    G06068477Courtesy of FORD MOTOR CO.
  7. Remove the manual valve from the valve body.
    Fig 8: Locating Manual Valve
    G06068478Courtesy of FORD MOTOR CO.
    8. NOTE: Remove the valves by tapping the valve body on the palm of the hand to slide the valves out of the bores. It may be necessary to remove the valves and springs using a pick. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups. Take special care when handling the main control components, since they are the most precise and delicate parts of the transaxle. Neatly arrange the parts as they are removed to avoid mixing similar pieces.
    NOTE: Do not stone or polish any valves. If the valves do not move freely, install a new assembly.
    Fig 9: Identifying Valve And Spring
    G06068479Courtesy of FORD MOTOR CO.
  8. Remove the individual valves and springs from the main control valve body and lower valve body by removing the retaining clips. See the VALVE BODY  and LOWER VALVE BODY  illustrations at the beginning of this procedure for valve and spring locations. Clean valves, springs, main control valve body and lower valve body.
    9. NOTE: Do not stone or polish any valves. If the valves do not move freely during assembly, install a new valve body.
  9. Install the valve body valves, springs and retaining clips in the main control valve body and lower valve body. See the VALVE BODY  and LOWER VALVE BODY  illustrations at the beginning of this procedure for valve and spring locations.
  10. Install the manual valve in the valve body.
    Fig 10: Locating Manual Valve
    G06068478Courtesy of FORD MOTOR CO.
  11. Position a new lower valve body separator plate and gasket on the main control valve body.
    Fig 11: Locating Lower Valve Body Separator Plate And Gasket
    G06068477Courtesy of FORD MOTOR CO.
  12. Position the lower valve body on the main control valve body.
    Fig 12: Locating Lower Valve Body Assembly
    G06068482Courtesy of FORD MOTOR CO.
    13. NOTE: Install the check balls in the correct location as noted during disassembly.
    Fig 13: Locating Check Balls
    G08001220Courtesy of FORD MOTOR CO.
  13. Install the 6 check balls.
  14. Install a new valve body separator plate and gasket.
    Fig 14: Locating Valve Body Separator Plate And Gasket
    G06076329Courtesy of FORD MOTOR CO.
    15. NOTE: Install the different length bolts in the correct location as noted during disassembly.
  15. Install the transfer plate assembly and hand-tighten the 5 bolts.
    1. 63 mm (2.48 in) bolts
    2. 35 mm (1.377 in) bolts
      Fig 15: Installing Transfer Plate Assembly
      G06068485Courtesy of FORD MOTOR CO.
  16. Tighten the 5 valve body bolts.
    • Tighten to 12 Nm (106 lb-in).
      Fig 16: Identifying Valve Body Bolts
      G06068486Courtesy of FORD MOTOR CO.
    17. NOTE: Install the different length bolts in the correct location as noted during disassembly.
  17. Install the new transfer plate cover assembly and hand-tighten the 6 bolts.
    1. 63 mm (2.48 in) bolts
    2. 35 mm (1.377 in) bolts
      Fig 17: Installing Transfer Plate Cover Assembly Bolts
      G06068487Courtesy of FORD MOTOR CO.
  18. Tighten the 6 bolts.
    • Tighten to 12 Nm (106 lb-in).
      Fig 18: Locating Valve Body Bolts
      G06068488Courtesy of FORD MOTOR CO.
