Transaxle Support Insulator - 3.5L GTDI: Notes

SPECIAL TOOLS

G06260116
 Bar, Engine Spreader
303-1454
G08000578
 Eye, Engine Lift
303-1245
G06068086
 Support Bar, Engine
303-F072
MATERIAL SPECIFICATIONS

Item Specification
Threadlock and Sealer
TA-25		 WSK-M2G351-A5

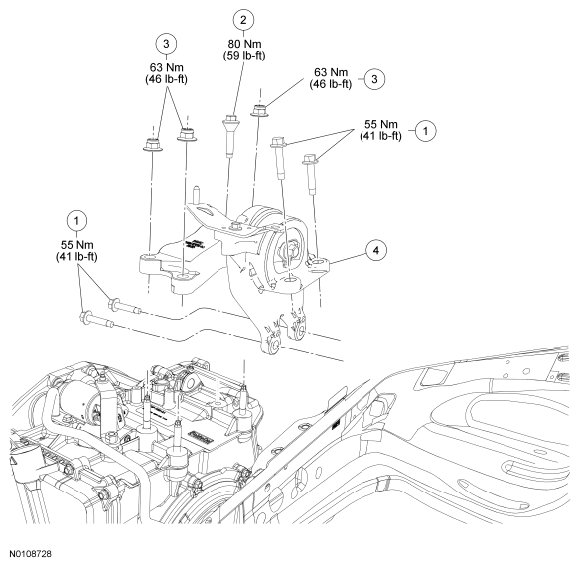

Fig 1: Exploded View Of Transaxle Support Insulator - 3.5L GTDI With Torque Specifications
G06260119Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W709234 Transaxle support insulator bolts
2 W712711 Transaxle support insulator bracket bolt
3 W714682 Transaxle support insulator bracket nuts
4 6F020 Transaxle support insulator
