Removal And Installation

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

Manual Seat

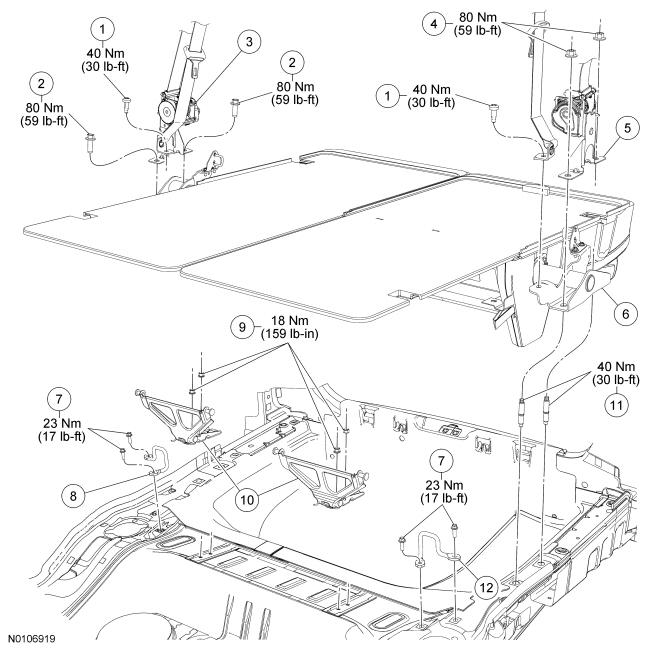

Fig 1: Manual Seat With Torque Specifications
GFD95648Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W700883 Safety belt anchor bolts (2 required)
2 W505285 Seat mounting bracket-to-floor bolts
3 611B68 Safety belt retractor, RH
4 N800937 Seat mounting bracket-to-floor nuts
5 611B69 Safety belt retractor, LH
6 - Seat assembly
7 W505264 Cushion floor striker-to-floor pan bolts
8 62440 RH cushion floor striker
9 N804796 Load floor support-to-floor pan nuts
10 60592 Load floor supports
11 W714446 Seat mounting floor studs
12 62441 LH cushion floor striker

Power Seat

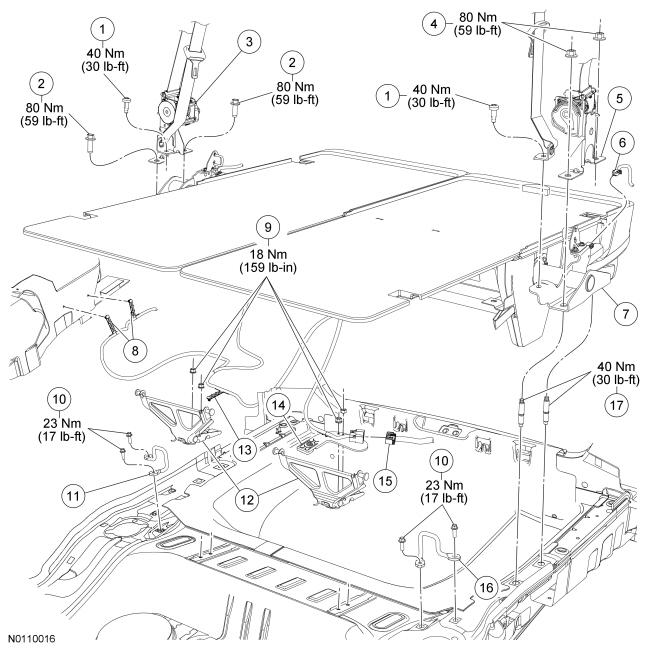

Fig 2: Power Seat With Torque Specifications
GFD95649Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W700883 Safety belt anchor bolts (2 required)
2 W505285 Seat mounting bracket-to-floor bolts
3 611B68 Safety belt retractor, RH
4 N800937 Seat mounting bracket-to-floor nuts
5 611B69 Safety belt retractor, LH
6 - LH stow motor electrical connector (part of 14A005)
7 - Seat assembly
8 - Wire harness retainers (part of 14B719)
9 N804796 Load floor support-to-floor pan nuts
10 W505264 Cushion floor striker-to-floor pan bolts
11 62440 RH cushion floor striker
12 60592 Load floor supports
13 - Wire harness retainer (part of 14B719)
14 - Wire harness retainer (part of 14B719)
15 - Seat main feed electrical connector (part of 14A005)
16 62441 LH cushion floor striker
17 W714446 Seat mounting floor studs
NOTE: The accessory delay system (courtesy lamps) will time-out after 10-minutes and disable power-fold seat operation (if equipped). To enable the system, open any vehicle door.

All seats

  1. 1.

    Remove the LH and RH quarter trim panels. For additional information, refer to Interior Trim and Ornamentation .
    • Connect the third row power fold seat control switch, if equipped.

  1. 2.

    Position both seats to the load floor position.
GFD95650Courtesy of FORD MOTOR COMPANY

Power seat with inoperable seat latch

  1. 3.

    NOTE: RH seat shown, LH similar.

    Push the cushion cover and foam pad back and locate the power seat latch by-pass cut-out in the bracket.

GFD95651Courtesy of FORD MOTOR COMPANY

  1. 4.

    Slide a screwdriver through the latch bracket until it bottoms out on the latch mechanism.
    • The screwdriver must be straight up and down and not on an angle or the screwdriver will not come in contact with the latch release lever.
GFD95652Courtesy of FORD MOTOR COMPANY

  1. 5.

    Pivot the screwdriver handle toward the front of the seat, releasing the latch.
GFD95653Courtesy of FORD MOTOR COMPANY

Power seat with inoperable stow motor

  1. 6.

    NOTE: LH shown, RH similar.

    Pry to release the clips and remove the backrest latch outer cover.

GFD95654Courtesy of FORD MOTOR COMPANY

  1. 7.

    NOTE: Make sure the wire harness is not damaged while positioning the release lever or the power-fold seat will not operate correctly.
    NOTE: LH seat shown, RH similar.

    Position the pivot release lever down and pivot the seat away from the floor striker.

    • When installing, make sure the pivot lever is engaged.
GFD95655Courtesy of FORD MOTOR COMPANY

All seats

  1. 8.

    NOTE: If equipped with a power seat, do not lift the load floor flapper panels too far or damage to the wire harness retainers will occur.

    Separate the 2 load floor supports (1 shown).

    • Push the load floor support rearward and slightly lift the load floor to disengage.
      • For manual seat, fold the 2 load floor flapper panels back on top of the seat.
GFD95656Courtesy of FORD MOTOR COMPANY

Power seat

  1. 9.

    Detach the wire harness retainers.

    1. 1.

      Slightly raise the LH load floor flapper panel and detach the wire harness retainer attached to the load floor support studs.

    1. 2.

      Slightly raise the RH load floor flapper panel and detach the wire harness pin-type retainer from the load floor support.
GFD95657Courtesy of FORD MOTOR COMPANY

  1. 10.

    Disconnect the main feed and LH power stow seat motor electrical connectors.
GFD95658Courtesy of FORD MOTOR COMPANY

  1. 11.

    Detach the 2 wire harness retainers on the RH side.
GFD95659Courtesy of FORD MOTOR COMPANY

All seats

  1. 12.

    NOTE: Note the location of the safety belt anchor for correct installation.

    Remove the LH and RH third row safety belt anchor bolts.

    • To install, tighten to 40 Nm (30 lb-ft).

  1. 13.

    Remove the third row seat.

    1. 1.

      Remove the 2 RH bolts and the safety belt retractor.
      • To install, tighten to 80 Nm (59 lb-ft).

    1. 2.

      Remove the 2 LH nuts and the safety belt retractor.
      • To install, tighten to 80 Nm (59 lb-ft).

    1. 3.

      Remove the 2 studs on the LH side.
      • To install the studs, tighten to 40 Nm (30 lb-ft) before installing the nuts.

    1. 4.

      With the aid of an assistant, remove the third row seat.
      • Lift the LH mounting bracket over the auxiliary climate control housing and move forward.
      • Lift the RH side of the seat and pull out through the rear hatch opening.

  1. 14.

    To install, reverse the removal procedure.
    • Before installation, make sure the safety belt buckles are accessible to the occupants.

  1. 15.

    Check the active restraint system for correct operation. For additional information, refer to the appropriate Functional Test procedure in the Diagnosis and Testing portion of Safety Belt System .
