Fuel Level Sender: Notes

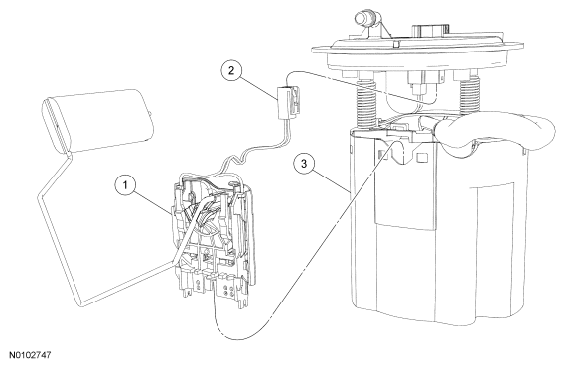

Fig 1: Identifying Fuel Level Sender, Fuel Pump (FP) Module And Electrical Connector
G06293389Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9A299 Fuel level sender
2 - Fuel level sender electrical connector (part of 9A299)
3 9H307 Fuel Pump (FP) module
