Component Location Views

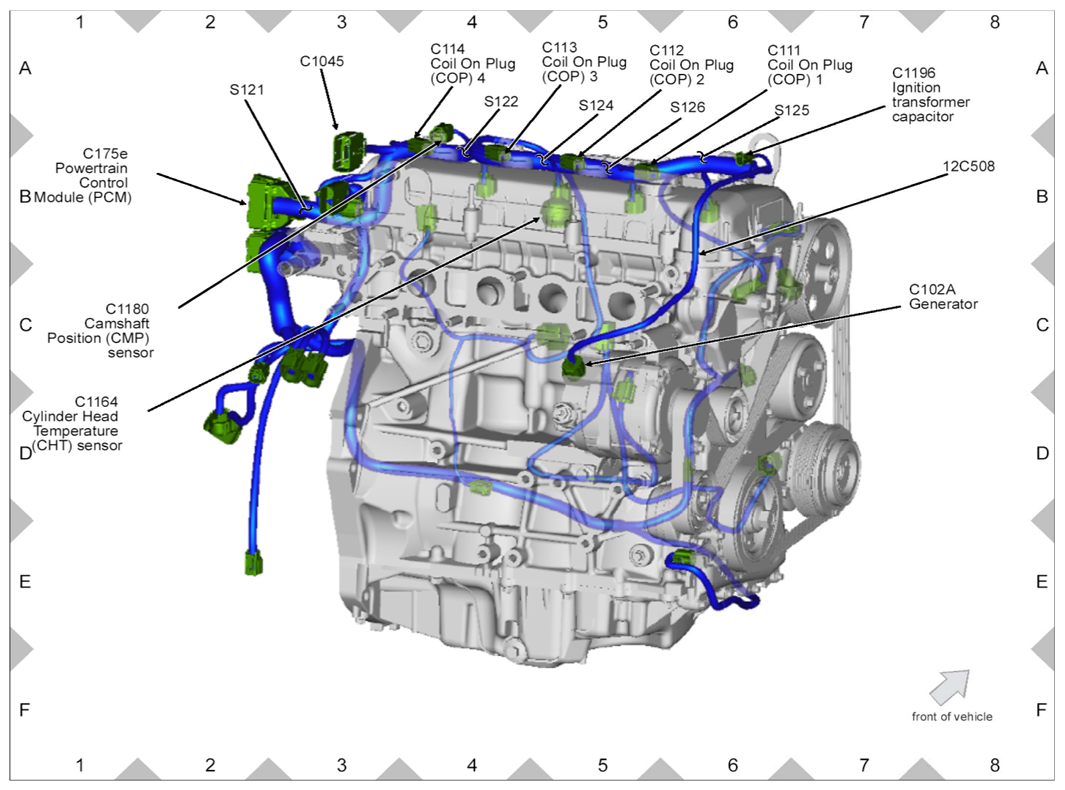

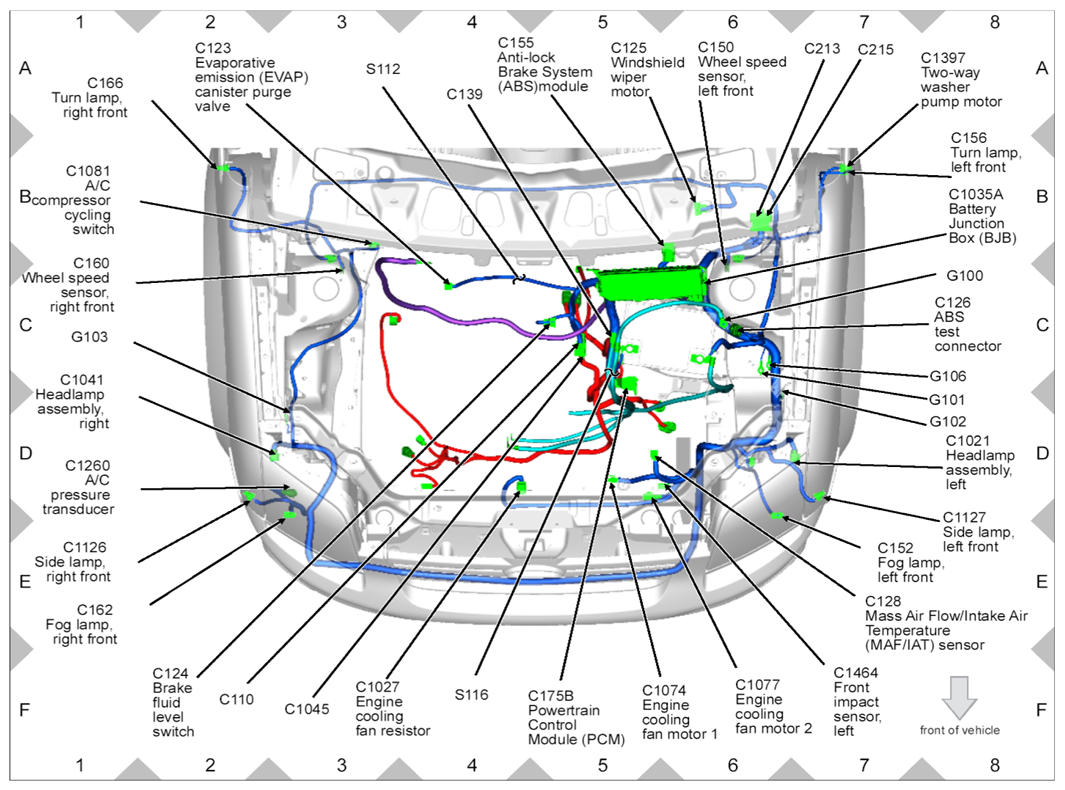

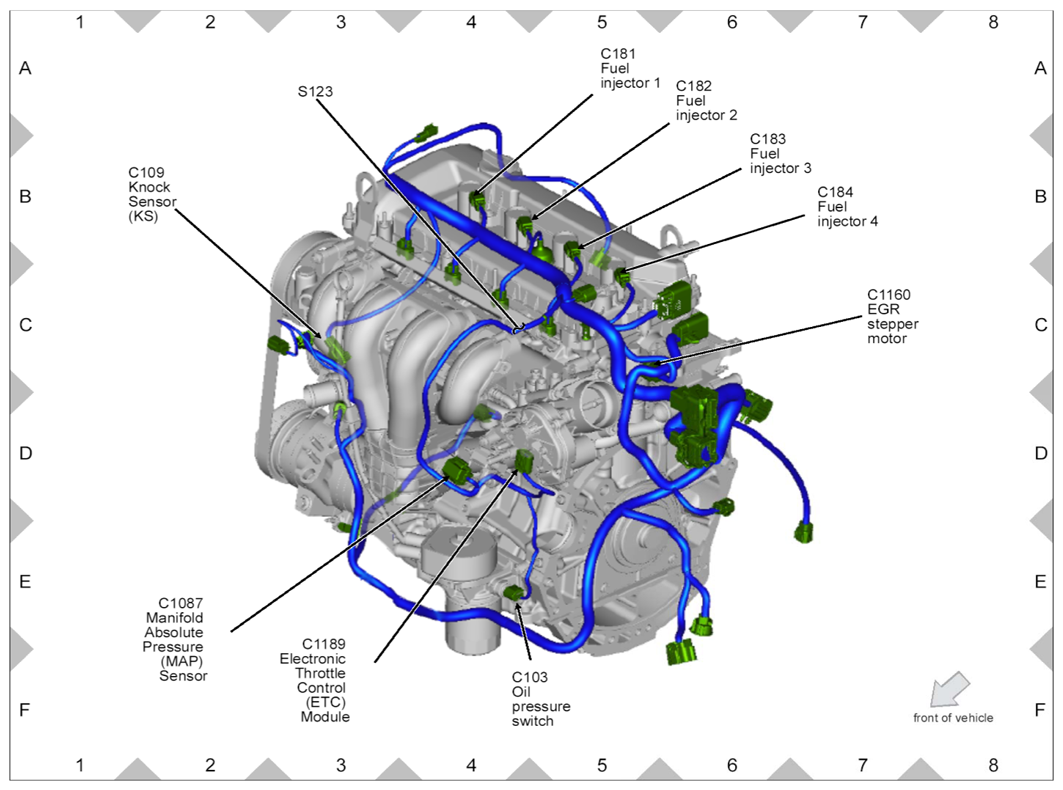

Fig 1: Engine Compartment Wiring Harness Components Location (1 Of 4)
Courtesy of FORD MOTOR CO.

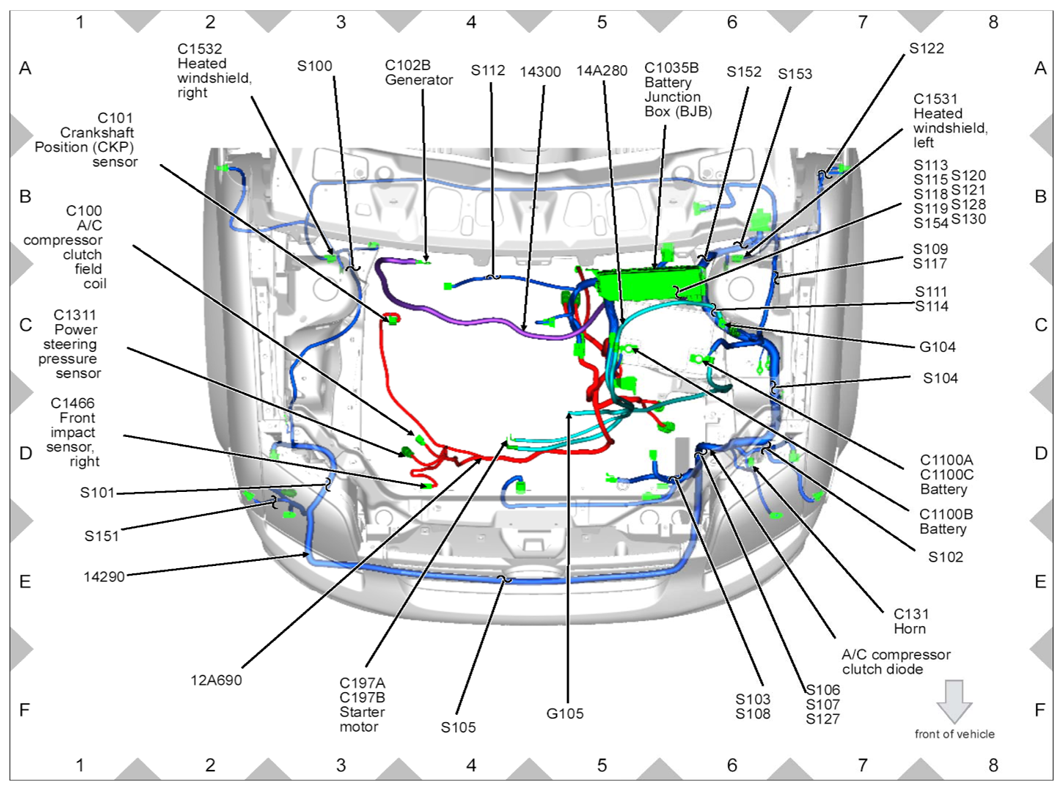

Fig 2: Engine Compartment Wiring Harness Components Location (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 3: Engine Compartment Wiring Harness Components Location (4 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Engine Compartment Wiring Harness Components Location (4 Of 4)
Courtesy of FORD MOTOR CO.

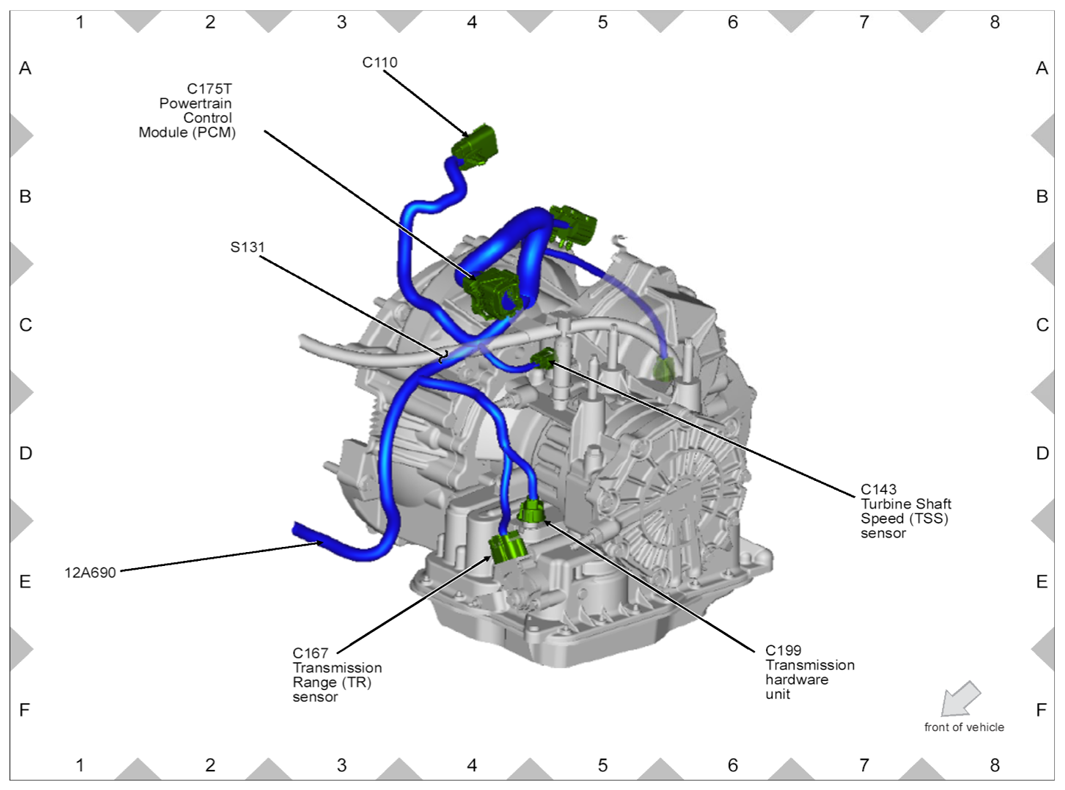

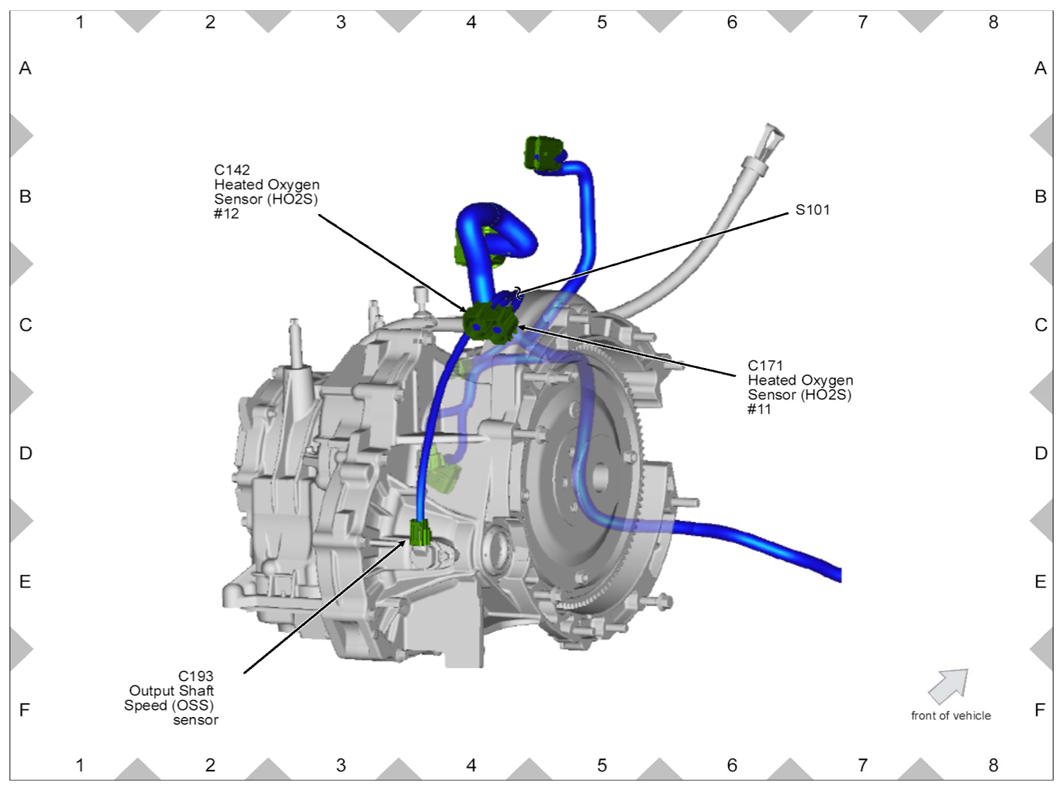

Fig 5: Transmission Wiring Harness Components Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 6: Transmission Wiring Harness Components Location (2 Of 2)
Courtesy of FORD MOTOR CO.

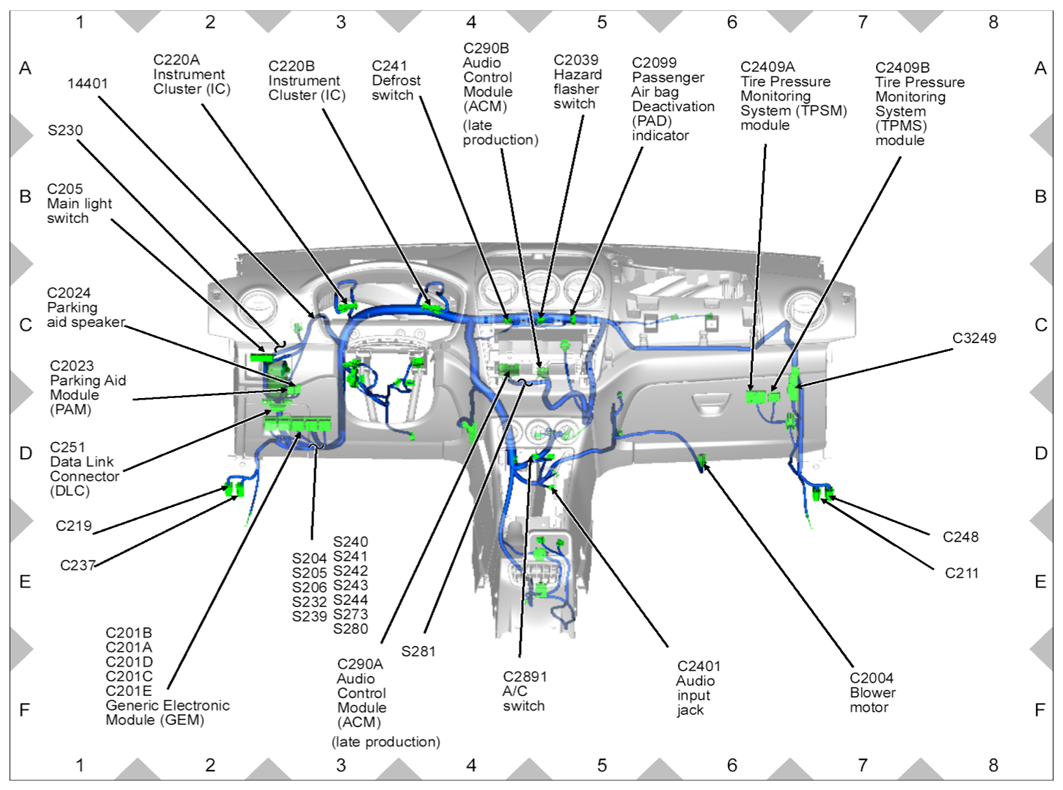

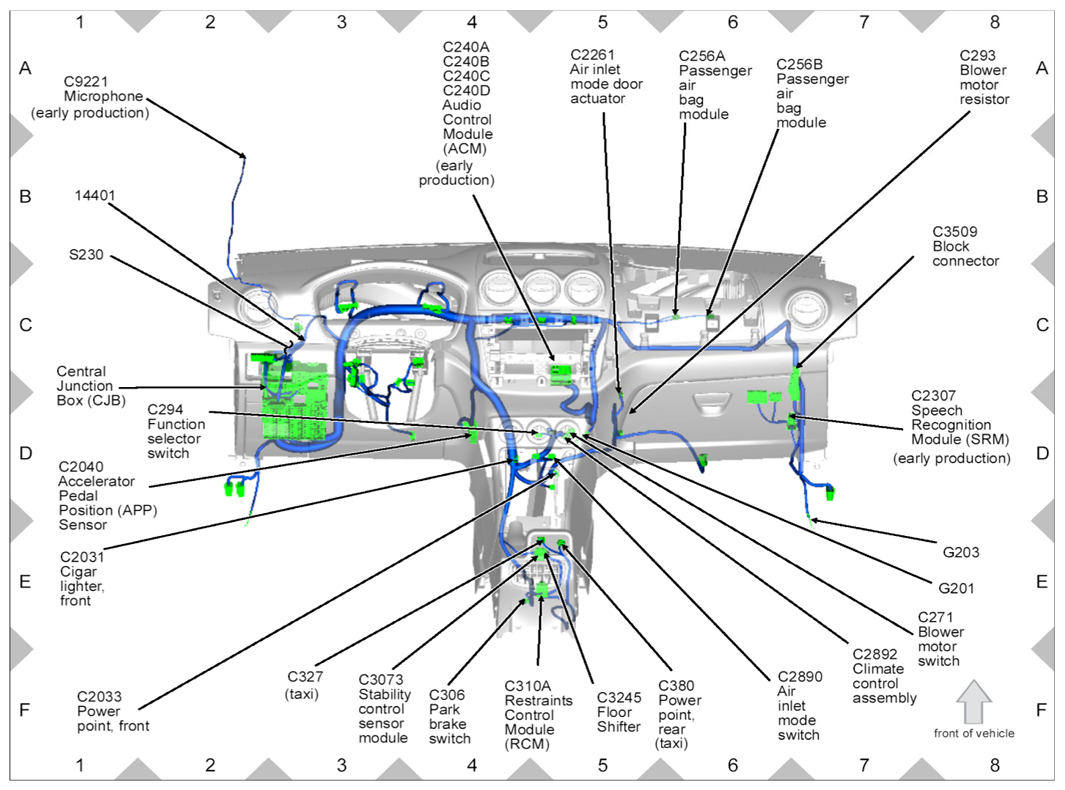

Fig 7: Dash Panel Wiring Harness Components Location (1 Of 3)
Courtesy of FORD MOTOR CO.

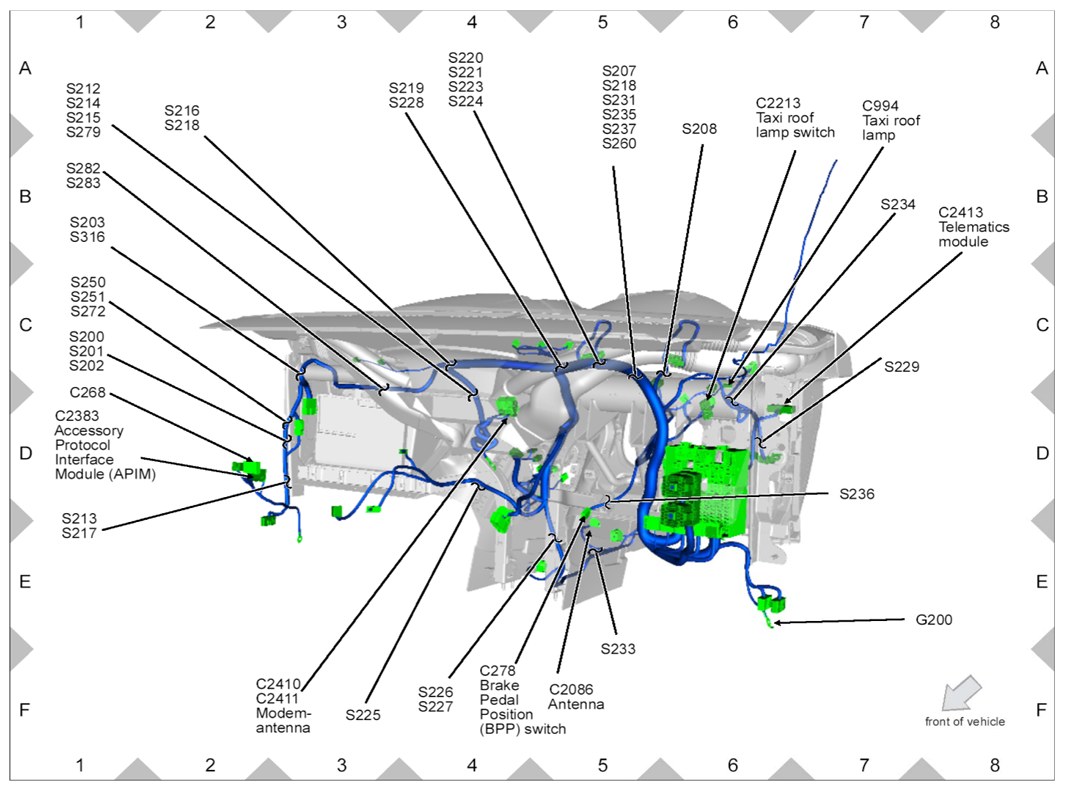

Fig 8: Dash Panel Wiring Harness Components Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 9: Dash Panel Wiring Harness Components Location (3 Of 3)
Courtesy of FORD MOTOR CO.

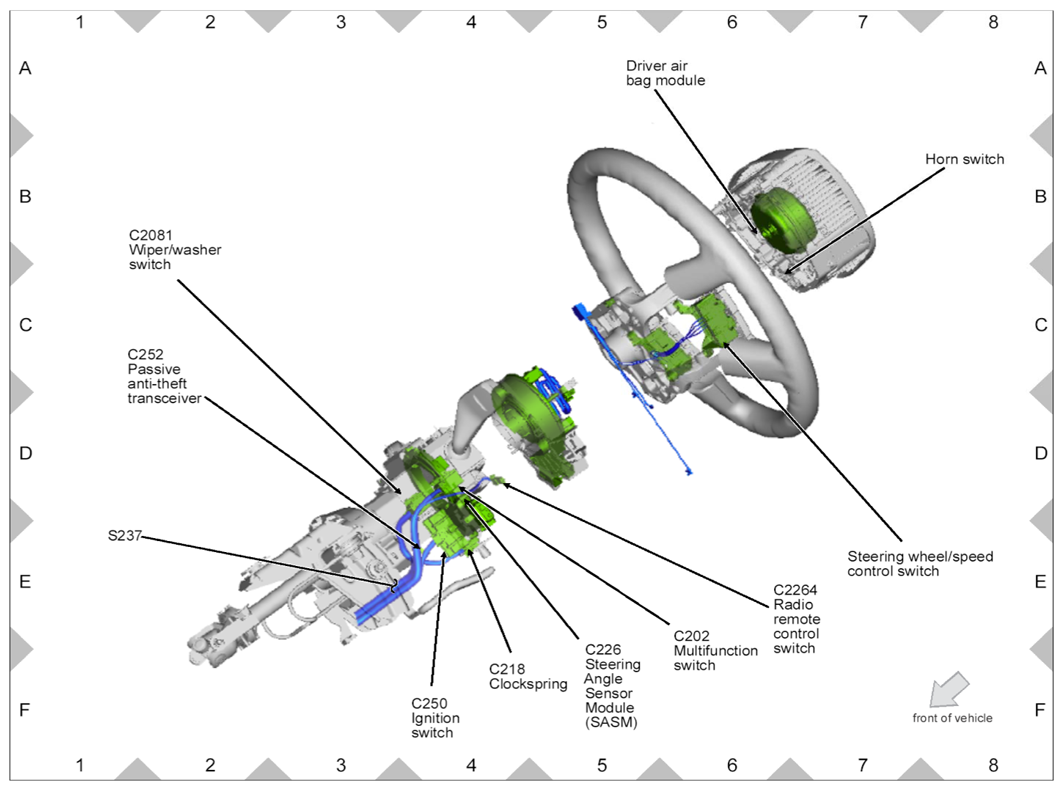

Fig 10: Steering Column Wiring Harness Components Location
Courtesy of FORD MOTOR CO.

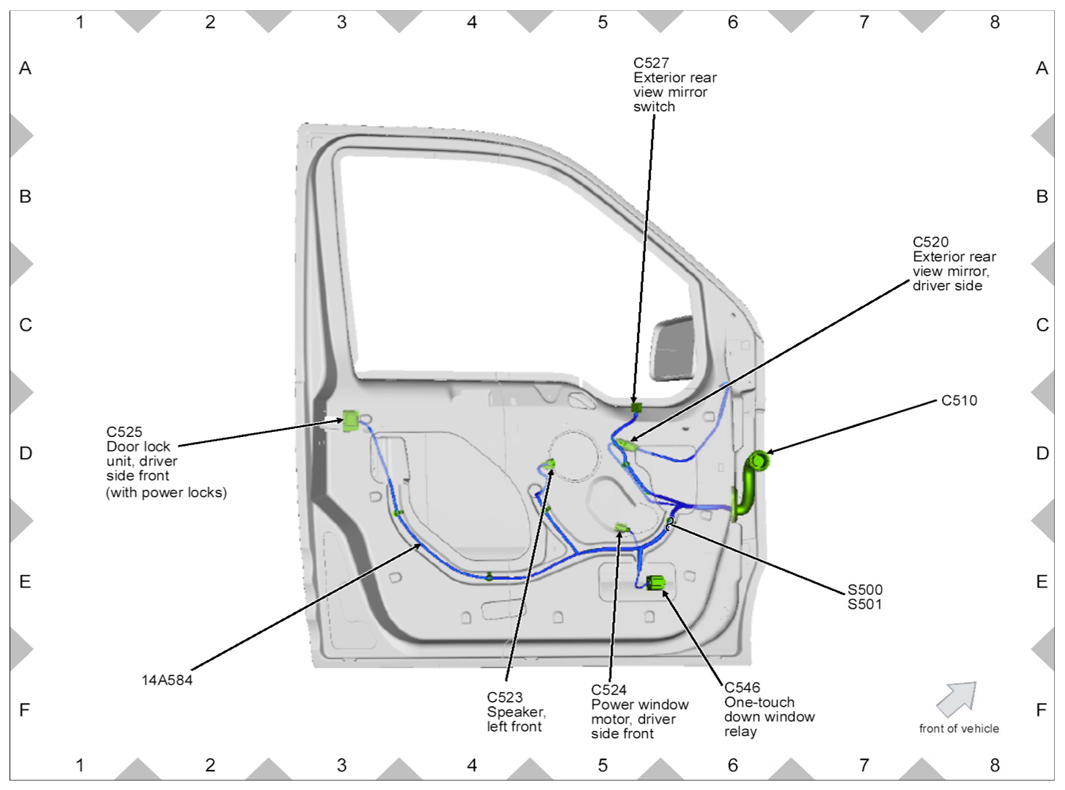

Fig 11: Door Wiring Harness Components Location (1 Of 2)
Courtesy of FORD MOTOR CO.

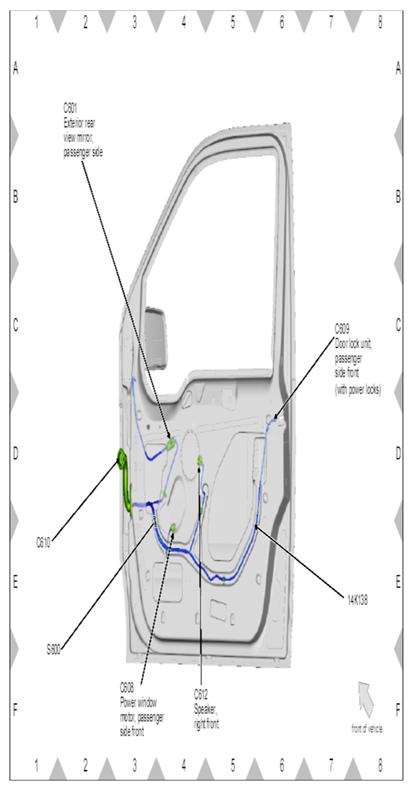

Fig 12: Door Wiring Harness Components Location (2 Of 2)
Courtesy of FORD MOTOR CO.

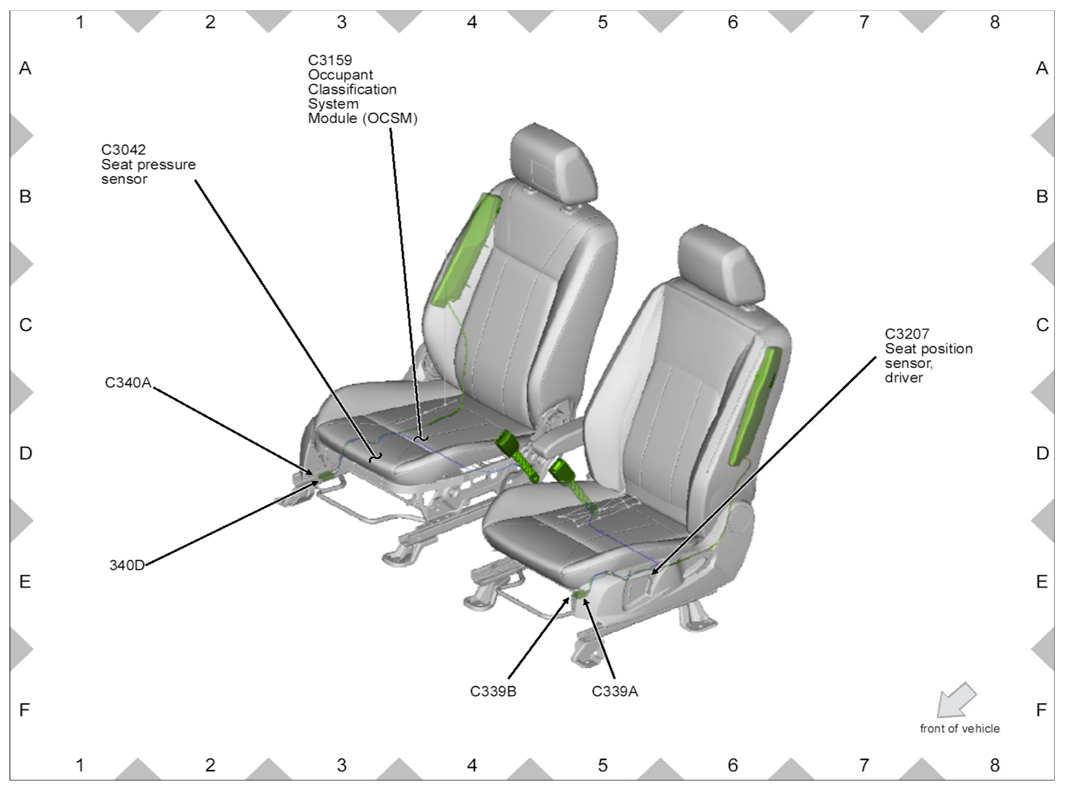

Fig 13: Seat Wiring Harness Components Location
Courtesy of FORD MOTOR CO.

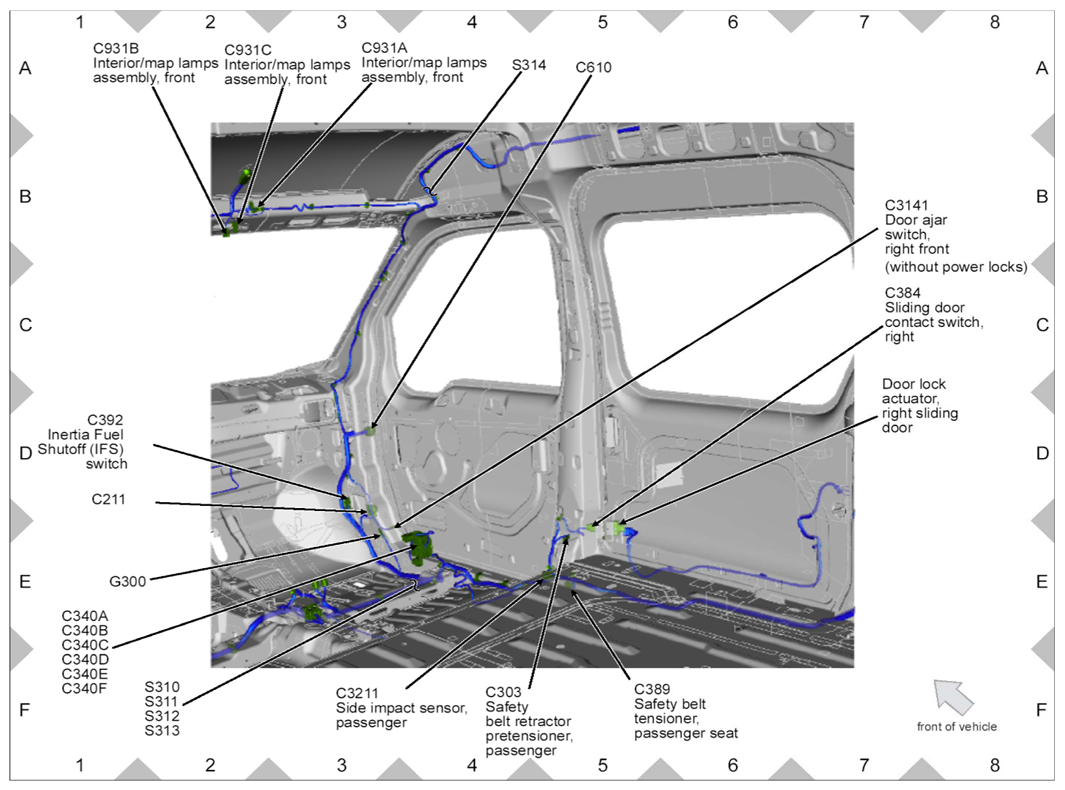

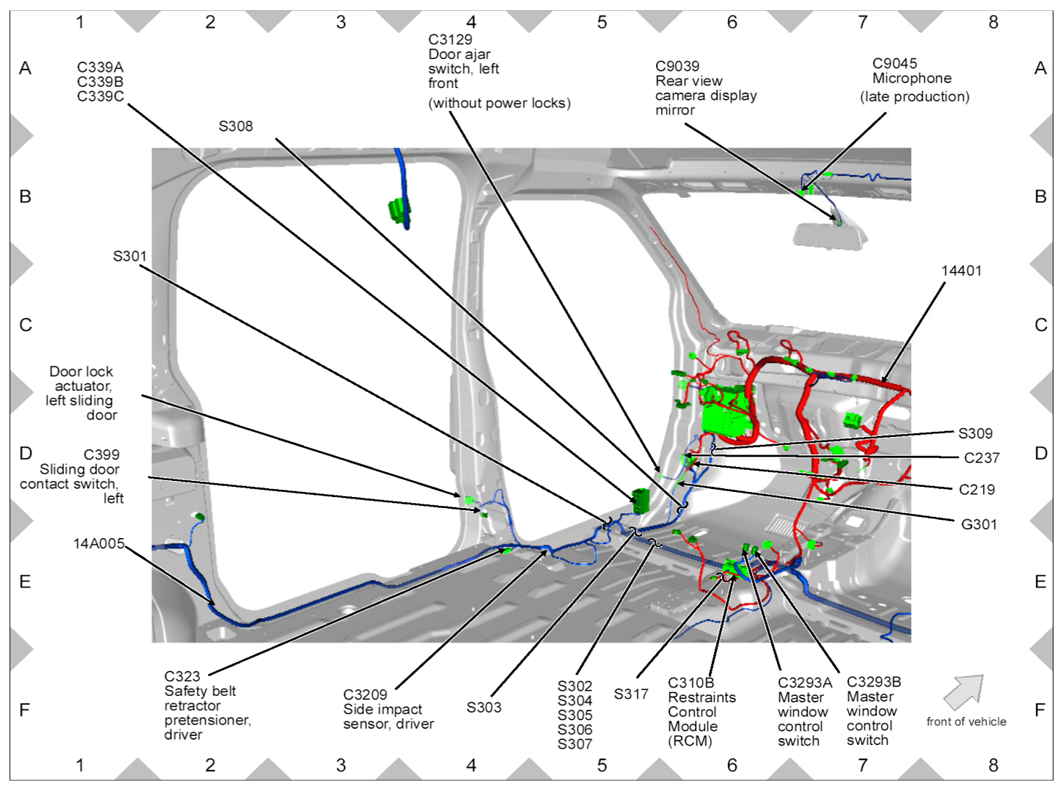

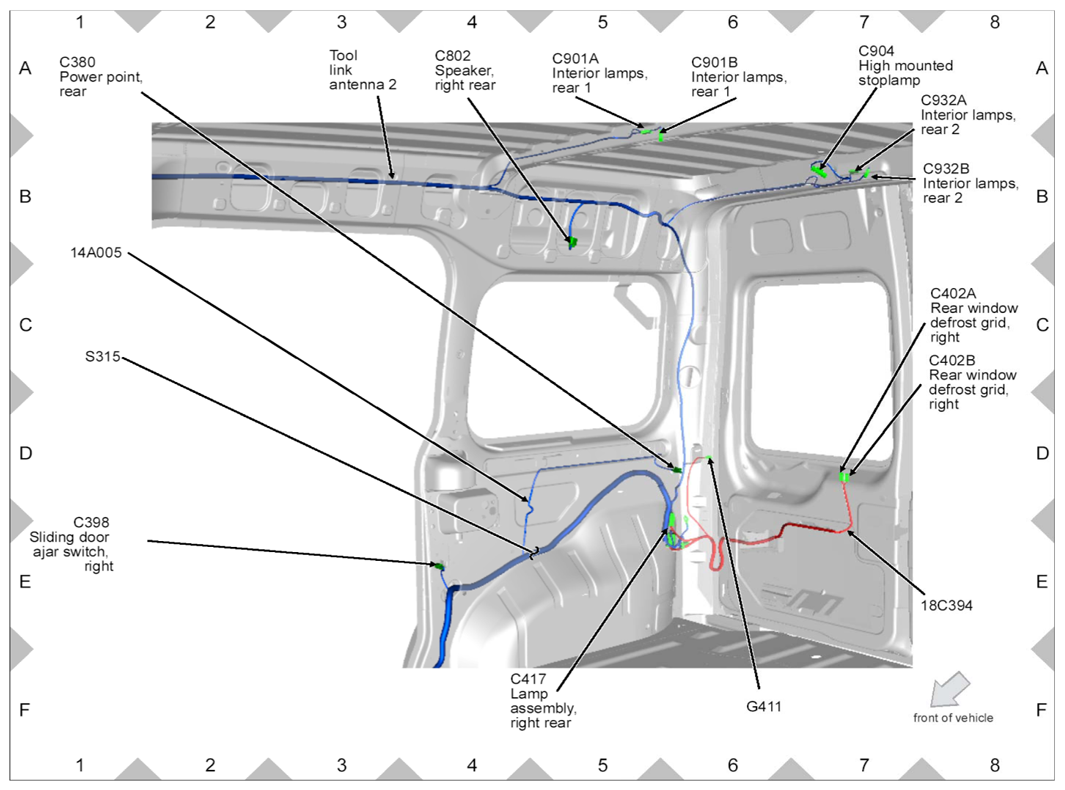

Fig 14: Vehicle Interior Compartment Wiring Harness Components Location (1 Of 4)
Courtesy of FORD MOTOR CO.

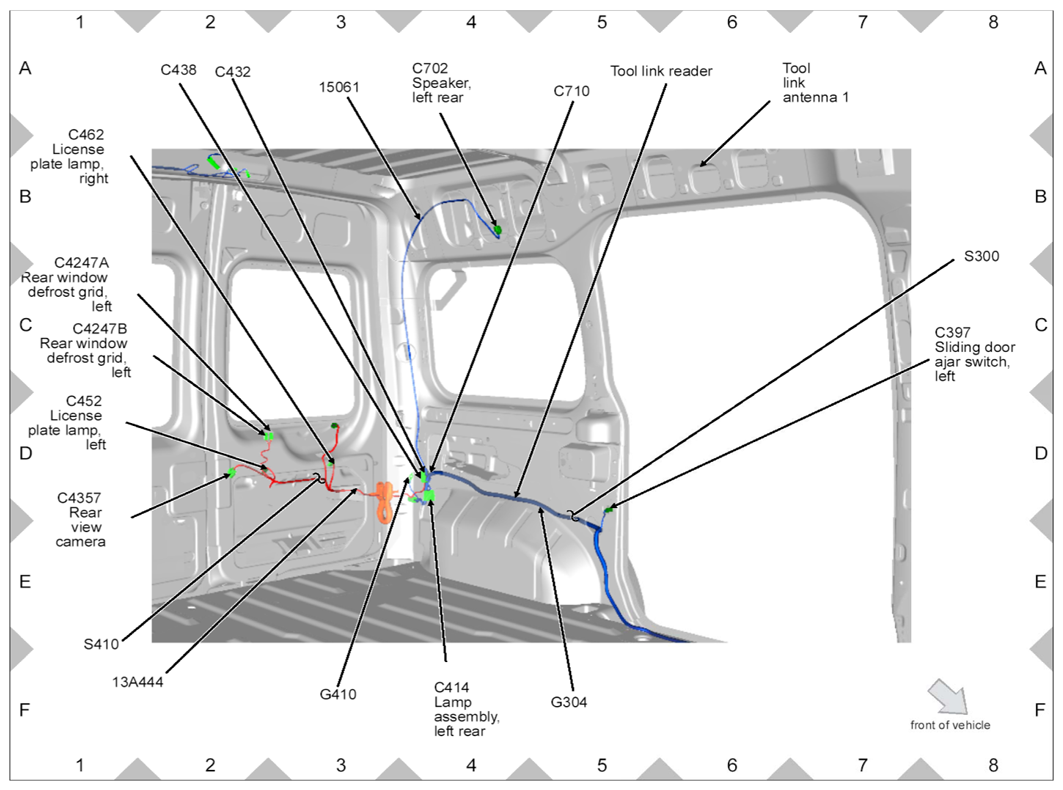

Fig 15: Vehicle Interior Compartment Wiring Harness Components Location (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 16: Vehicle Interior Compartment Wiring Harness Components Location (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 17: Vehicle Interior Compartment Wiring Harness Components Location (4 Of 4)
Courtesy of FORD MOTOR CO.

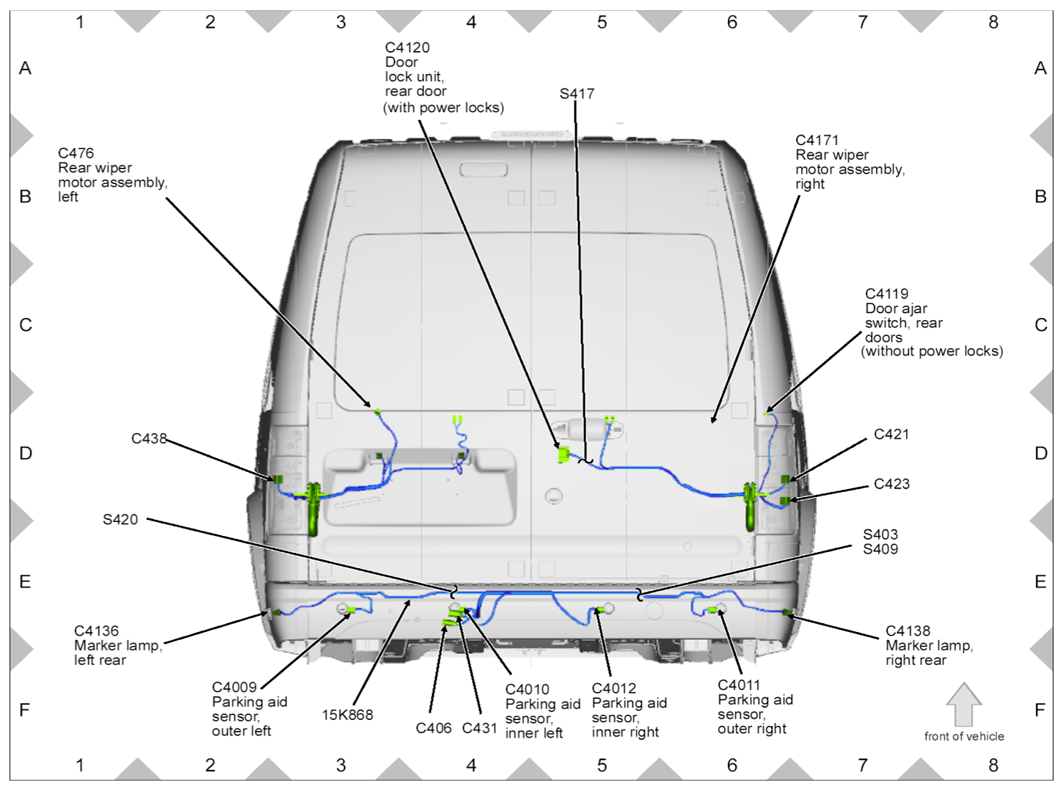

Fig 18: Body Corner Wiring Harness Components Location
Courtesy of FORD MOTOR CO.

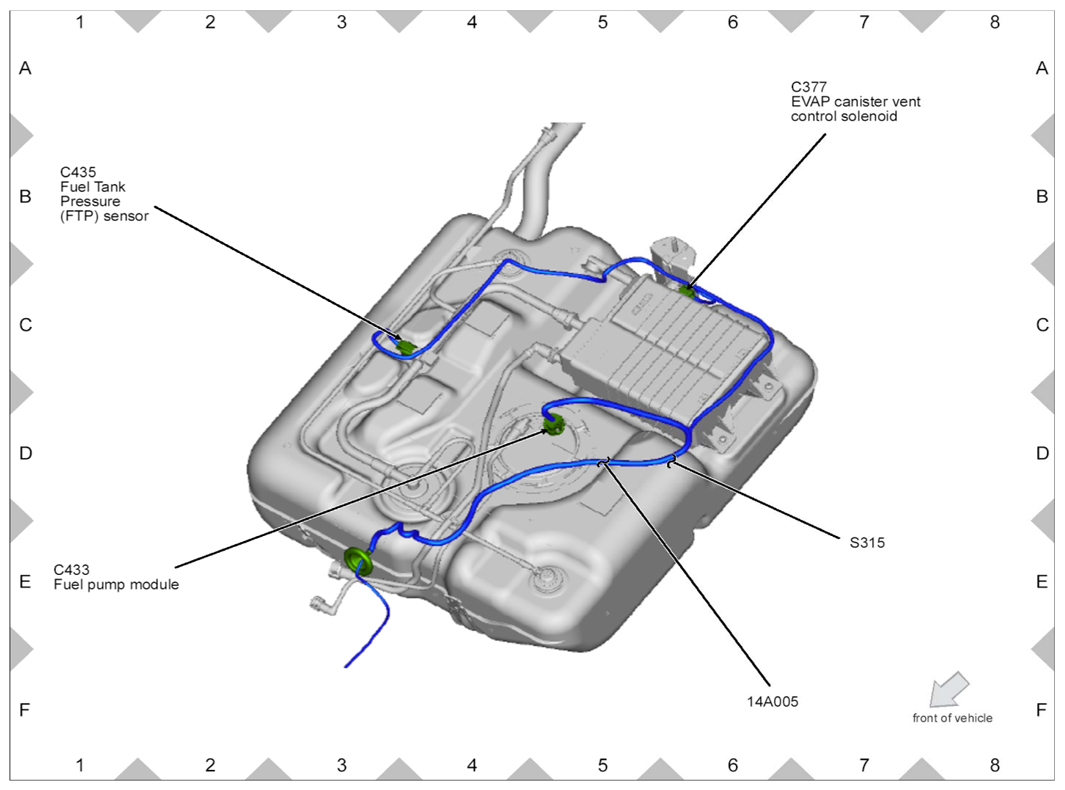

Fig 19: Fuel Pump Module Wiring Harness Components Location
Courtesy of FORD MOTOR CO.

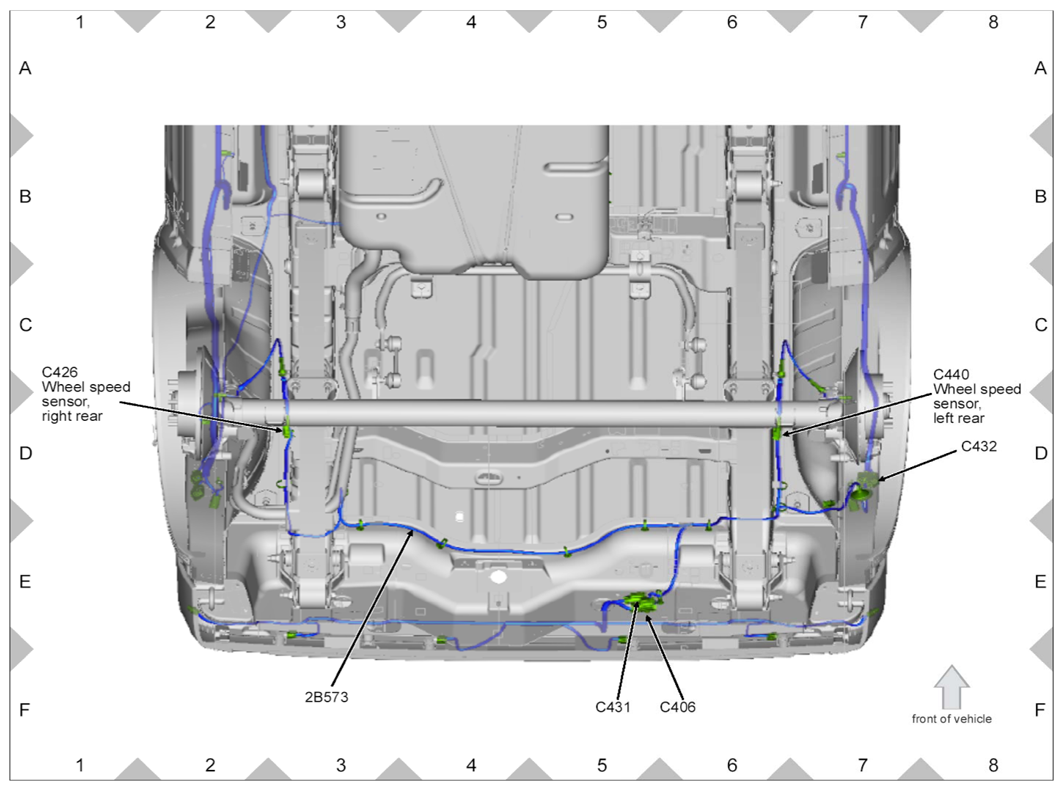

Fig 20: Wheel Speed Sensor Wiring Harness Components Location
Courtesy of FORD MOTOR CO.

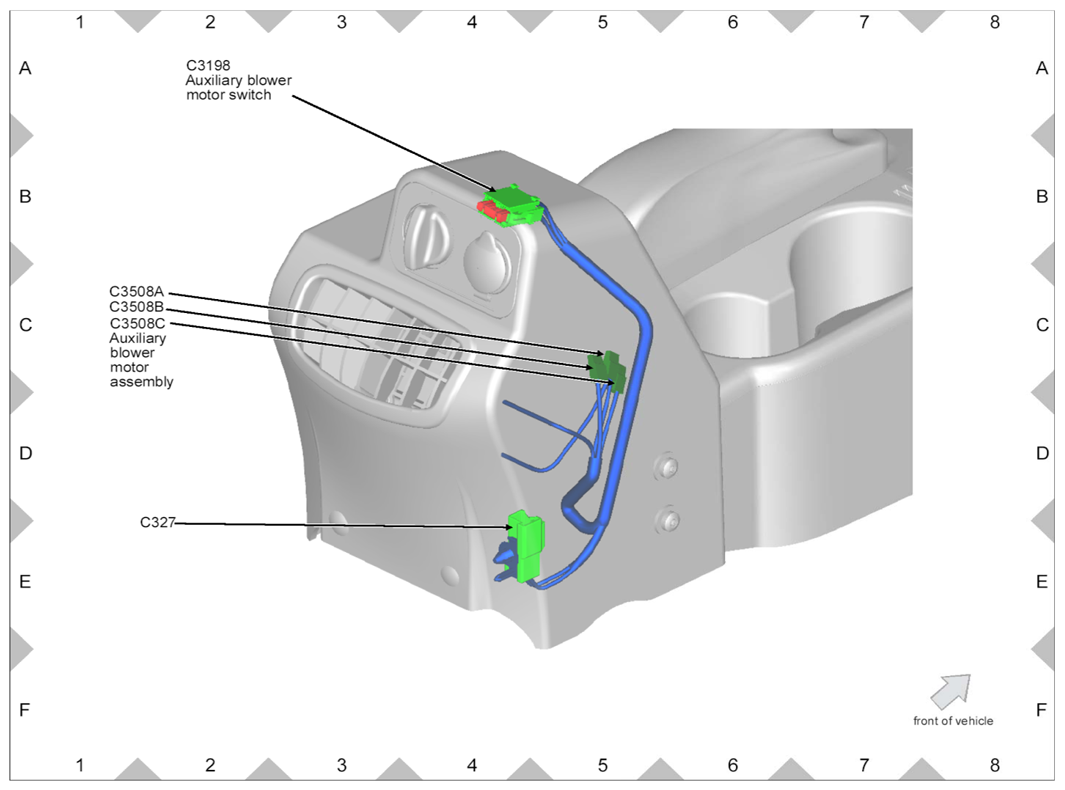

Fig 21: Auxiliary Blower Motor Switch Wiring Harness Components Location
Courtesy of FORD MOTOR CO.
