Defective insulation stripping

  1. = Proper crimp
  2. = Insulation not removed
  3. = Wire strands missing
  4. = Intermittent signals through pierced insulation

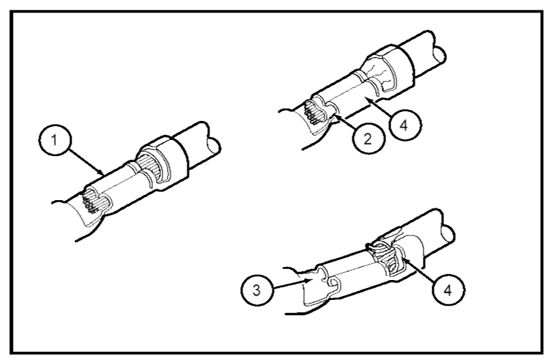

Fig 1: Example - Defective Insulation Stripping
G07909209Courtesy of FORD MOTOR CO.
