Shifter A/T: Service and Repair

Selector Lever Bezel









Removal

1. Remove the selector lever knob. For additional information, refer to Selector Lever Knob .

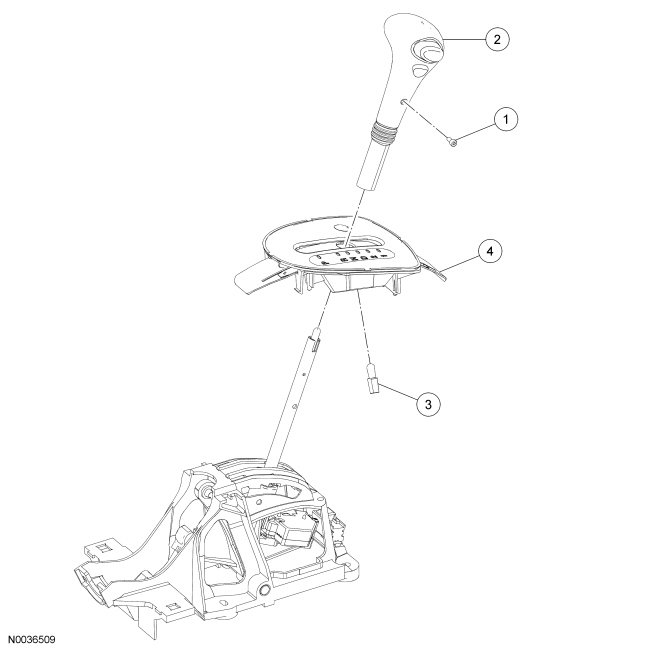

2. NOTE: Selector lever assembly removed for clarity.
Remove the selector lever bezel.

- Unclip the bezel.

- Unclip the lamp.






Installation

1. NOTE: Selector lever assembly removed for clarity.
Install the selector lever bezel.

- Clip in the lamp.

- Clip in the bezel.






2. Install the selector lever knob. For additional information, refer to Selector Lever Knob .
