Light Sensor Connector End View (C287)

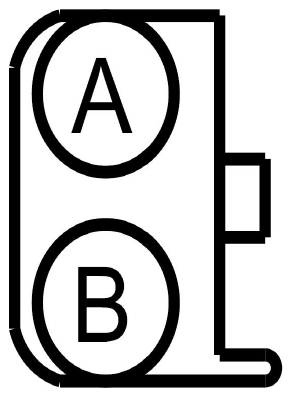

Fig 1: Identifying Light Sensor Connector (C287)
G08727879Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
A VLF14 (BU-BN) 22 SENSOR - AUTOLAMP DAY/NIGHT
B GD115 (BK-GY) 22 GROUND - CROSS CAR BEAM # 2ND POINT
Available Pigtail Kits
Pigtail Kit Part Number WPT-233

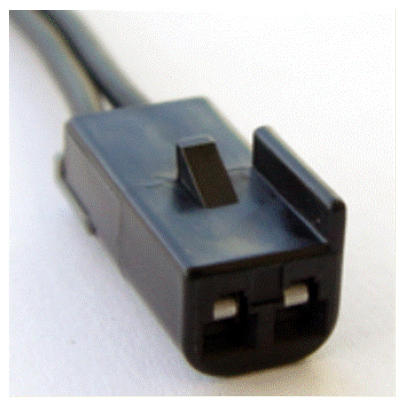

G08727880
 Service Part Number: 3U2Z-14S411-CZA
Gauge: 18
Pin material: Tin
Cavities: 2
Vehicle Uses
  • Module - Auto Lamps
  • Sensor - EATC In Car Temperature
  • Sensor - Sunload
  • Switch - Overdrive Cancel
Pigtail Kit Part Number WPT-967

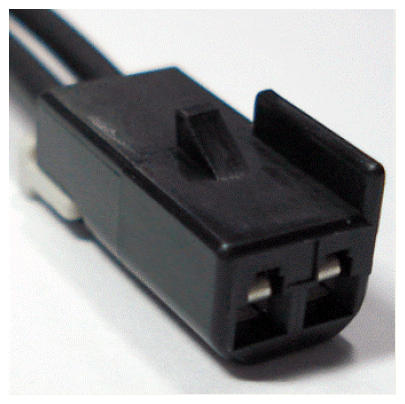

G08727881
 Service Part Number: 3U2Z-14S411-CZB
Gauge: 16
Pin material: Tin
Cavities: 2
Vehicle Uses
  • Module - Auto Lamps
  • Sensor - EATC In Car Temperature
  • Sensor - Sunload
  • Switch - Overdrive Cancel
