Body Control Module (BCM): Removal

NOTE: If installing a new Body Control Module (BCM), verify at least 2 of the vehicle keys are available prior to carrying out this procedure.
  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Upload the module configuration information from the BCM into the scan tool by following the scan tool on-screen instructions. Refer to MODULE CONFIGURATION .

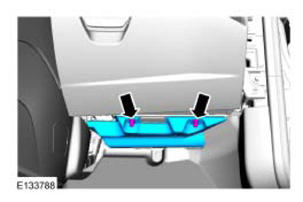

  2. Remove the 2 instrument panel insulator retainers and the instrument panel insulator.
    G08065306

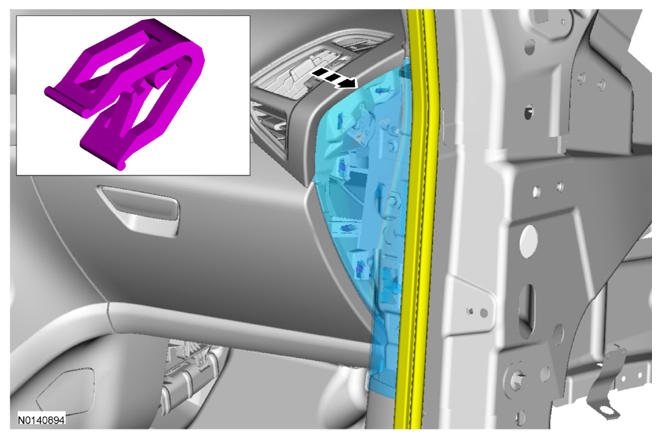

  3. Remove the RH instrument panel side trim panel.
    G08618202

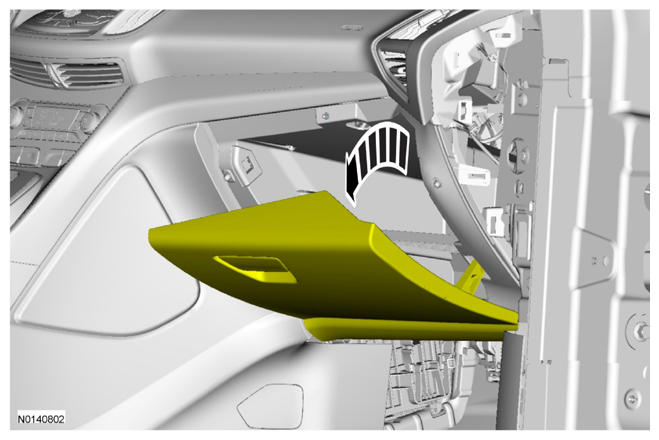

  4. Open the glove compartment door.
    G08618203

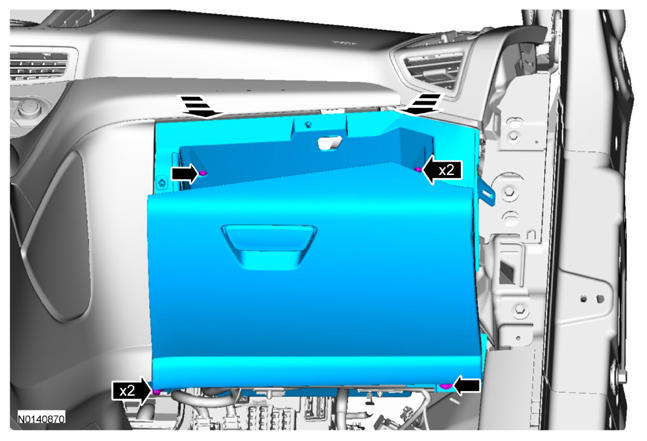

  5. Remove the 4 glove compartment retainers and the glove compartment.
    G08618204

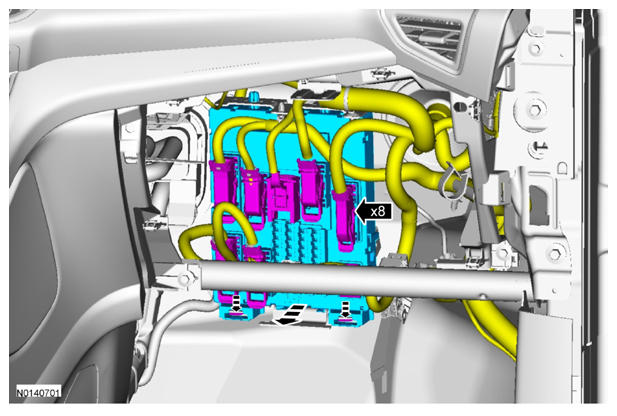

  6. Disconnect the 8 BCM electrical connectors, release the 2 clips and remove the BCM.
    G08618205
