Body Control Module (BCM)

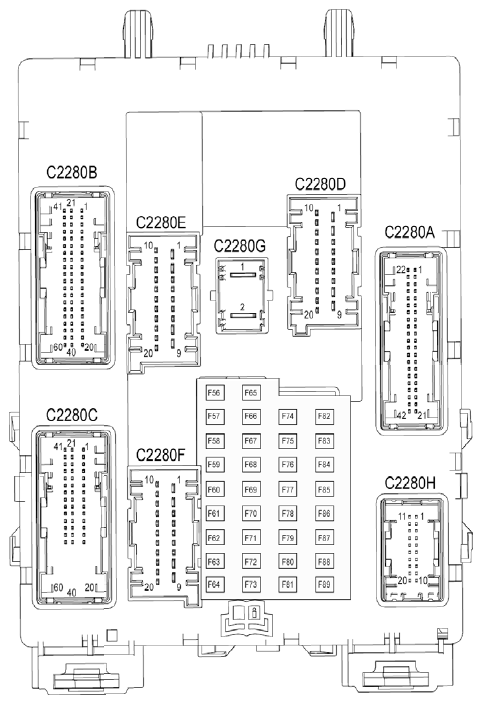

BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F56 | 20 | Fuel pump relay. Fuel Pump Control Module (FPCM). Battery Junction Box (BJB) - F28 |
| F57 | - | Not used |
| F58 | - | Not used |
| F59 | 5 | Passive anti-theft transceiver |
| F60 | 10 | Luggage compartment lamp. Courtesy lamps, right and left footwells Master window control switch Vanity mirror lamp, right and left. Manor/map lamps assemblies, Overhead console switch assembly. Dome lamp, rear Glove box lamp |
| F61 | 20 | Not used |
| F62 | 5 | Auto-dimming interior mirror. Rain sensor module |
| F63 | - | Not used |
| F64 | - | Not used |
| F65 | 10 | Litigate latch. Liftgate/decklid release relay |
| F66 | 20 | Driver door unlock relay. Door latch, left from |
| F67 | 7.5 | Front Control/Display Interface Module (FCDIM). Global Positioning System Module (GPSM). Accessory Protocol interface Module (APIM) |
| F68 | 15 | Spare relay |
| F69 | 5 | Instrument Panel Cluster (IPC) |
| F70 | 20 | Passenger door unlock relay, All lock relay Door latch, right front, Door latch, right rear, Door latch, left rear, Door latch, right front, Door latch, left from, Door latch, right rear, Door latch, left rear |
| F71 | 10 | HVAC module, EMTC and DATC |
| F72 | 7.5 | Steering Angle Sensor Module (SASM) |
| F73 | 5 | Data Link Connector (DLC) |
| F74 | 15 | High beam relay, Headlamp assembly, light and left |
| F75 | 15 | Fog lamp relay, Fog lamp, right front, Fog lamp, led front |
| F76 | 10 | Reversing lamp relay, Auto-dimming interior minor, Reversing lamp, right and left |
| F77 | 20 | Front washer relay, Rear washer relay, Windshield washer pump motor |
| F78 | 5 | Ignition switch - without IA, Start/stop switch - with IA |
| F79 | 15 | Audio Control Module (ACM), Front Controls Interface Module (FCIM) |
| F80 | 20 | Roof Opening Panel Module |
| F81 | 5 | Remote Functions Receiver (RFR) module |
| F82 | 20 | Front washer relay. Rear washer relay |
| F83 | 20 | Passenger door unlock relay, All look relay |
| F84 | 20 | Driver door unlock relay. Spare relay |
| F85 | 7.5 | Seal heater switches, passenger and driver seats In-vehicle temperature/humidity sensor, Electric booster heater, Heated seat modules |
| F86 | 10 | Restraints Control Module (RCM) |
| F87 | - | Not used |
| F88 | - | Not used |
| F89 | - | Not used |
