Remote Function Actuator (RFA) Module: Removal

WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new RFA module, verify at least 2 of the vehicle keys are available prior to carrying out this procedure.

All vehicles

Remove the LH loadspace trim panel.
Refer to: LOADSPACE TRIM PANEL .

Sony® sound
Remove the subwoofer.
Refer to: SUBWOOFER SPEAKER .

All vehicles

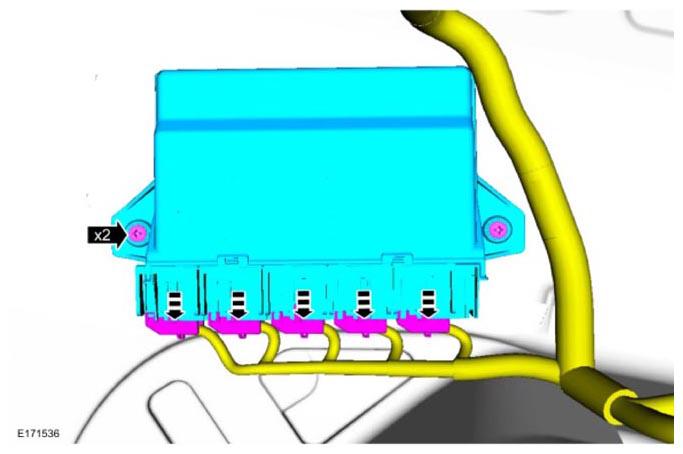

Torque : 89 lb.in (10 Nm)
