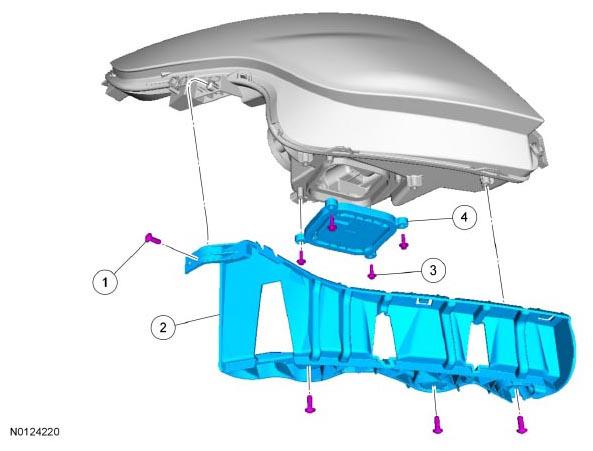

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Part Number |
Description |
| 1 |
- |
Front bumper cover support bolt (4 required part of 17C972/17C973) |
| 2 |
17C972/17C973 |
Front bumper cover support (Right Hand (RH)/Left Hand (LH)) |
| 3 |
W715133 |
Ballast bolt (4 required) |
| 4 |
13C170 |
Ballast assembly |
