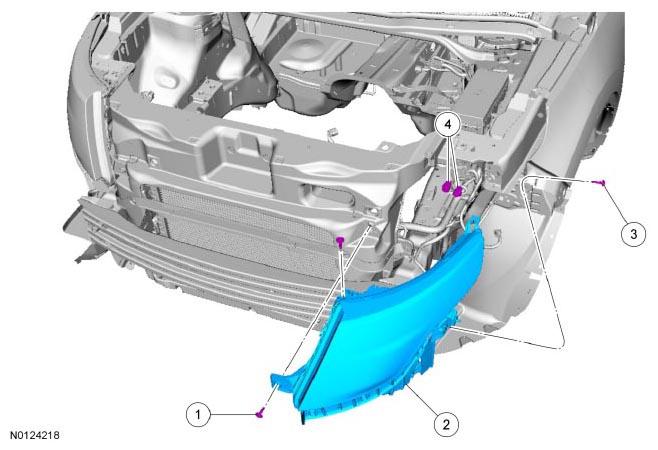

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W711158 | Headlamp assembly bolts (2 required) | - | - | - |
| 2 | 13008 | Headlamp assembly (Right Hand (RH)/LH) | - | - | - |
| 3 | W715226 | Front fender-to-headlamp assembly bolt | 7 Nm (62 lb-in) | - | - |
| 4 | - | Headlamp assembly electrical connectors (part of 14290) | - | - | - |
