Module Communications Network

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

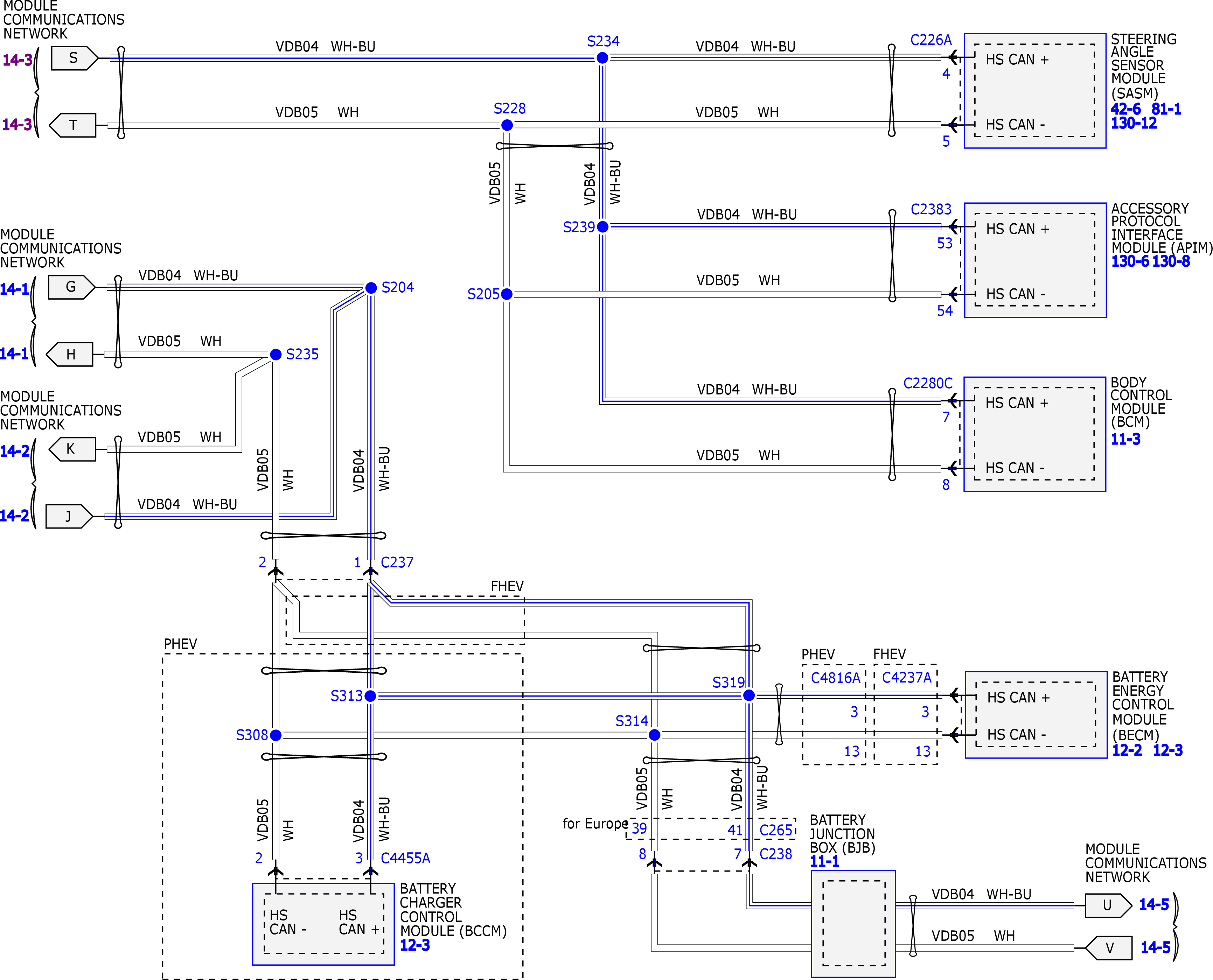

Fig 1: Module Communications Network Wiring Diagram (1 Of 8)

Courtesy of FORD MOTOR COMPANY

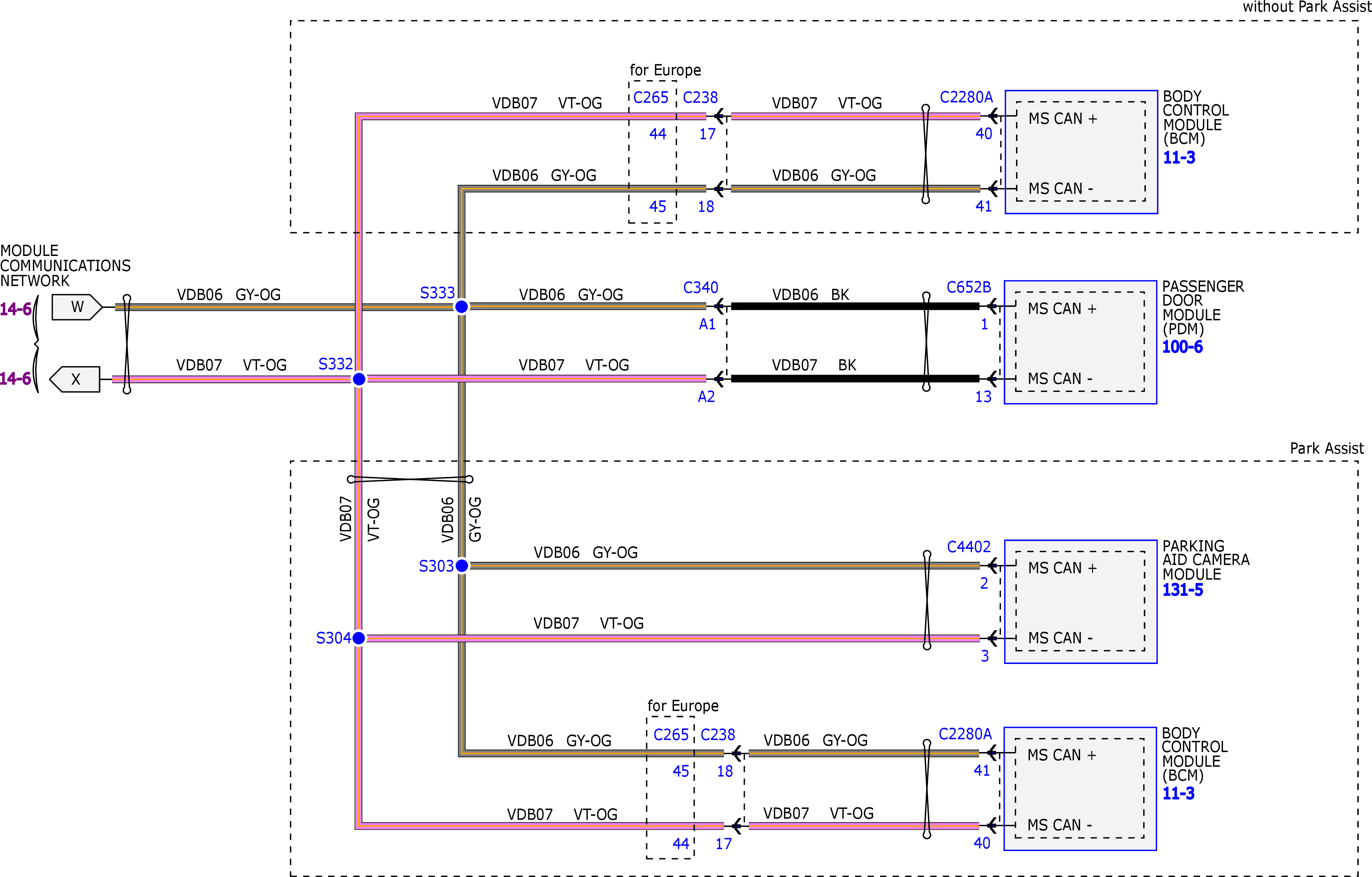

Fig 2: Module Communications Network Wiring Diagram (2 Of 8)

Courtesy of FORD MOTOR COMPANY

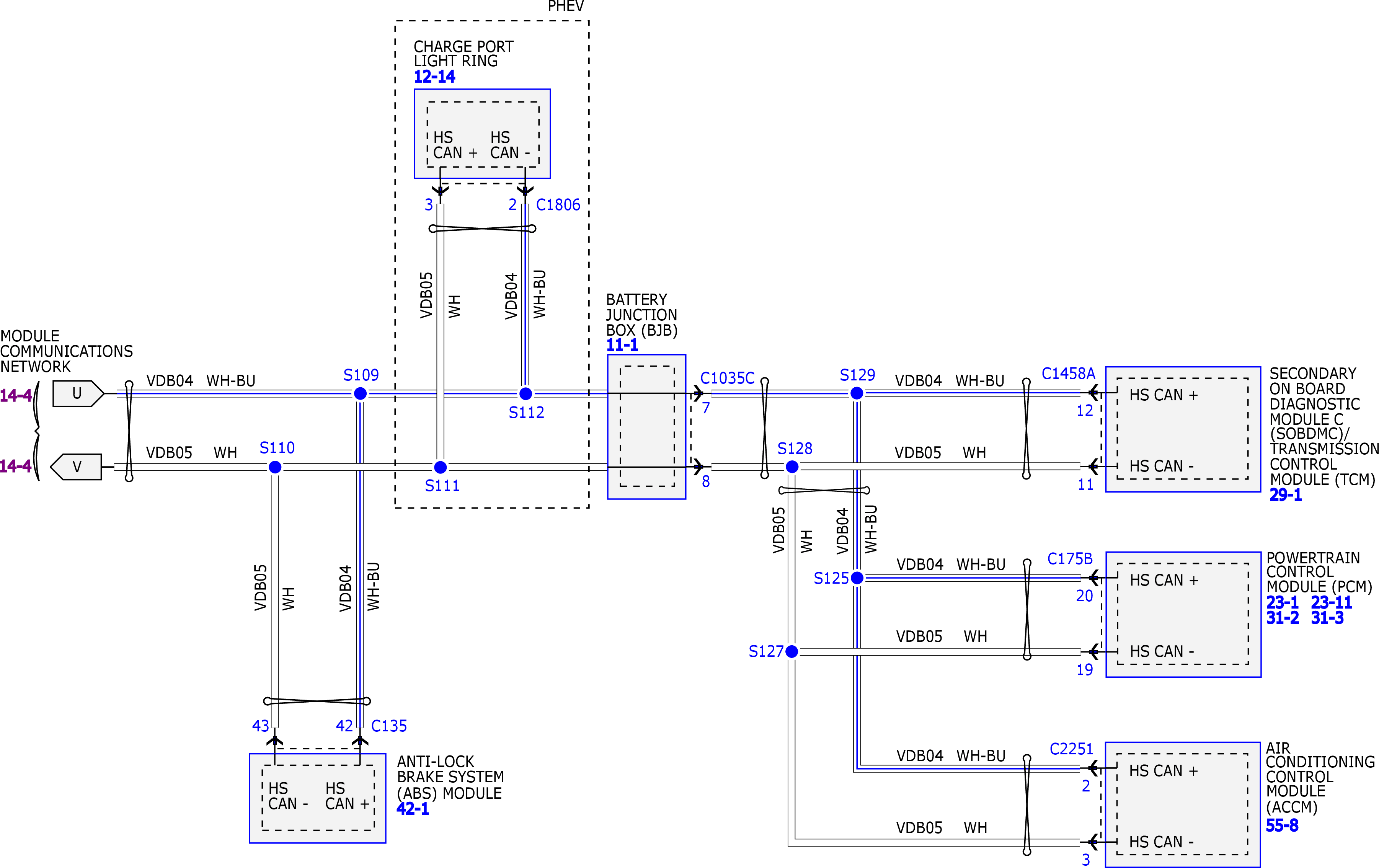

Fig 3: Module Communications Network Wiring Diagram (3 Of 8)

Courtesy of FORD MOTOR COMPANY

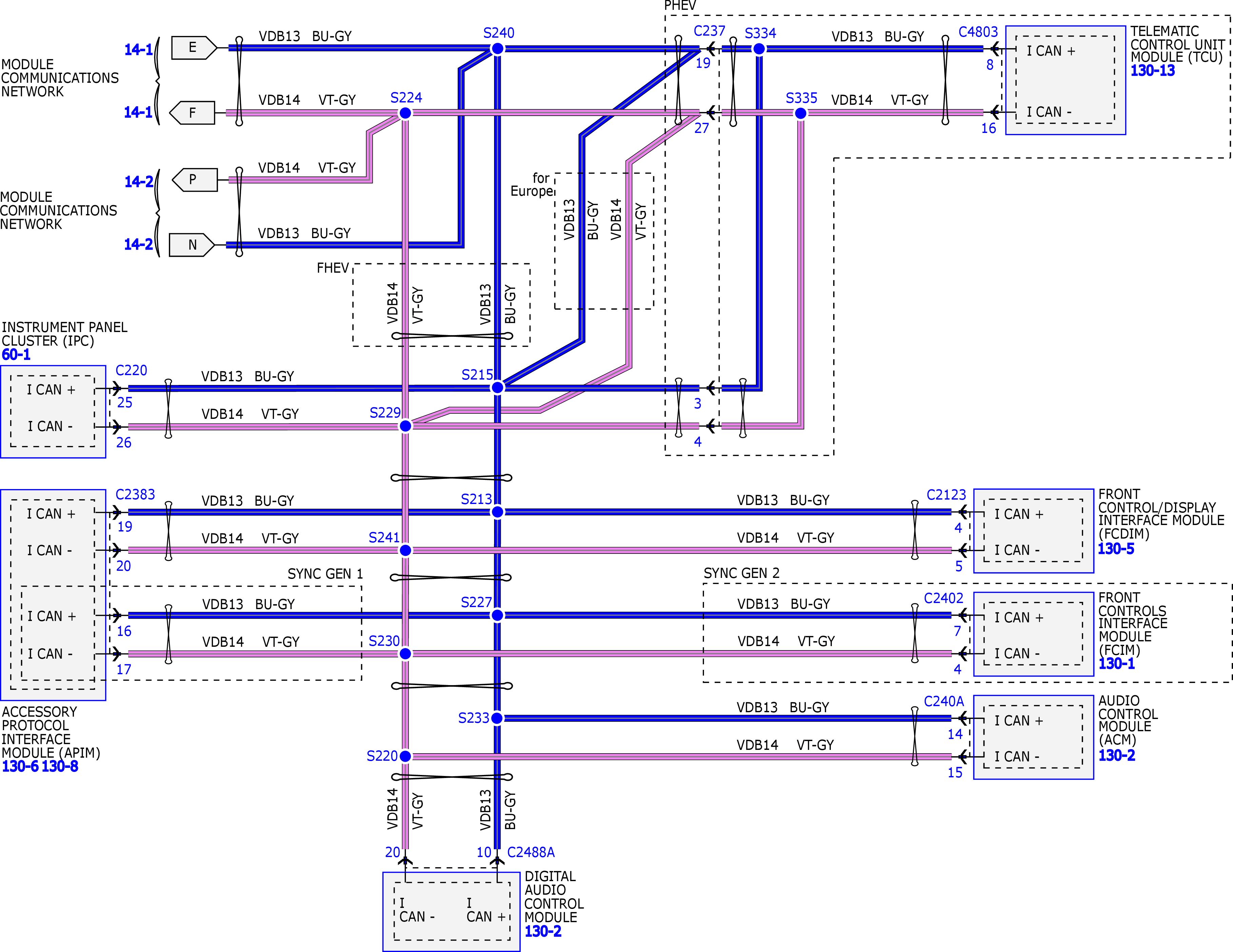

Fig 4: Module Communications Network Wiring Diagram (4 Of 8)

Courtesy of FORD MOTOR COMPANY

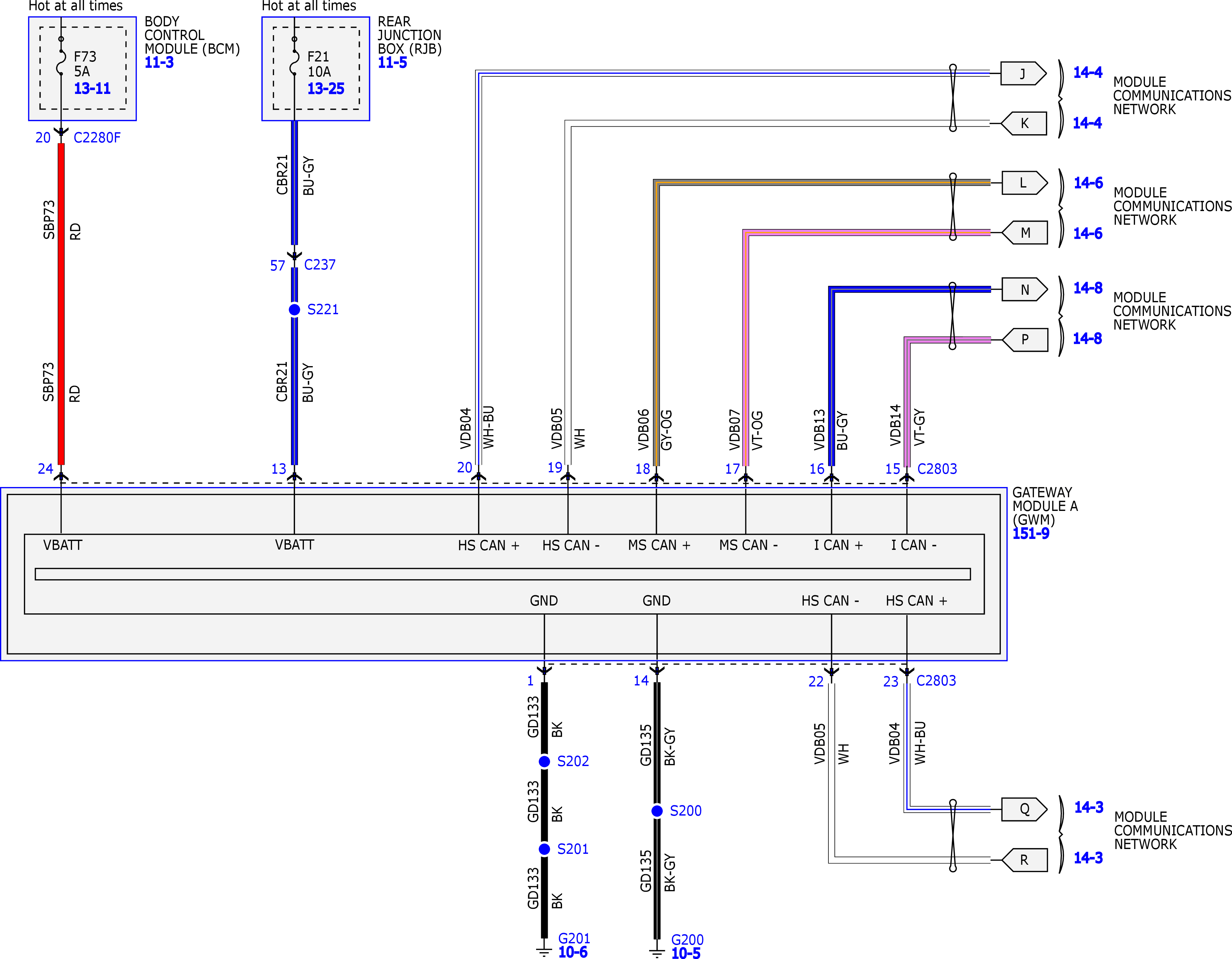

Fig 5: Module Communications Network Wiring Diagram (5 Of 8)

Courtesy of FORD MOTOR COMPANY

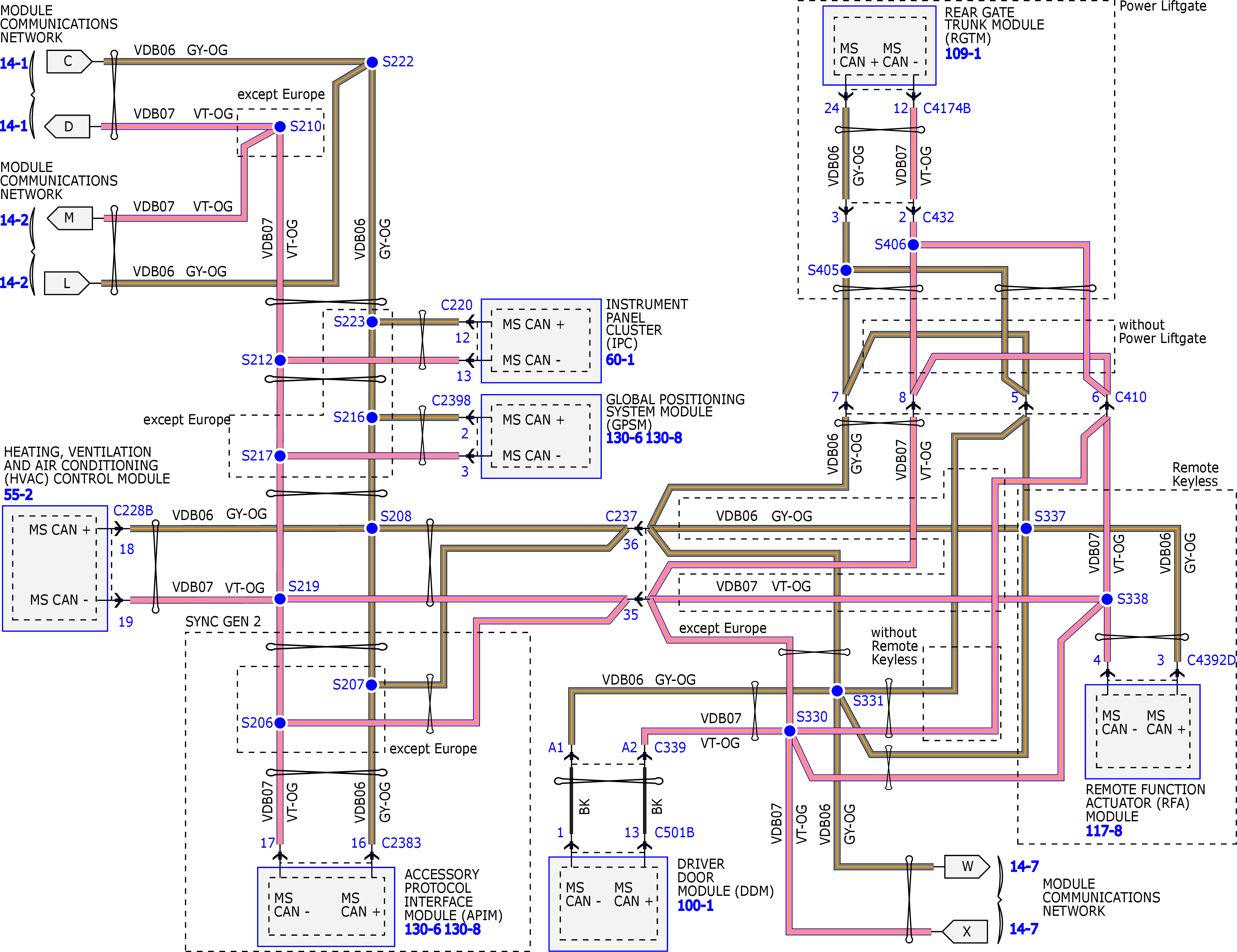

Fig 6: Module Communications Network Wiring Diagram (6 Of 8)

Courtesy of FORD MOTOR COMPANY

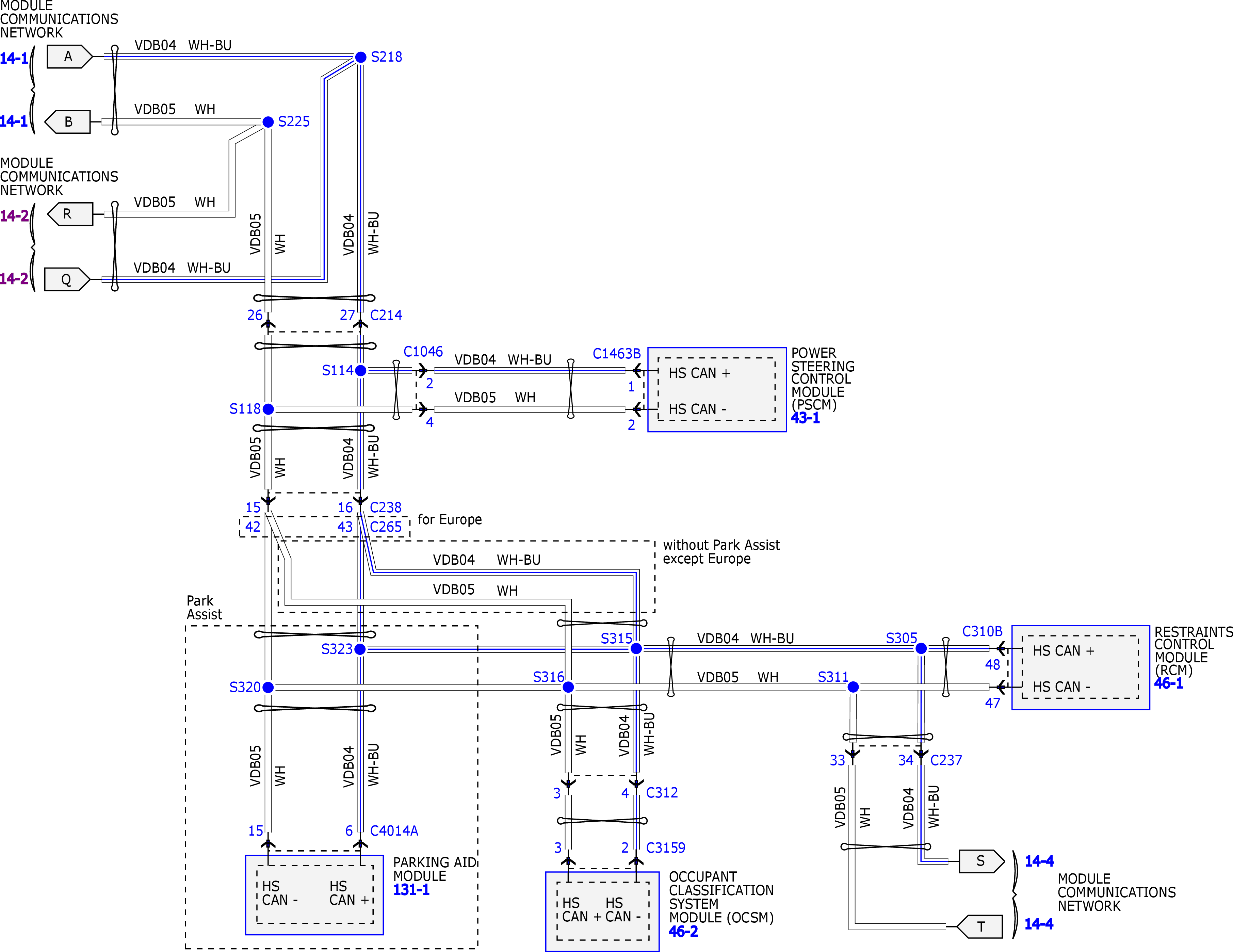

Fig 7: Module Communications Network Wiring Diagram (7 Of 8)

Courtesy of FORD MOTOR COMPANY

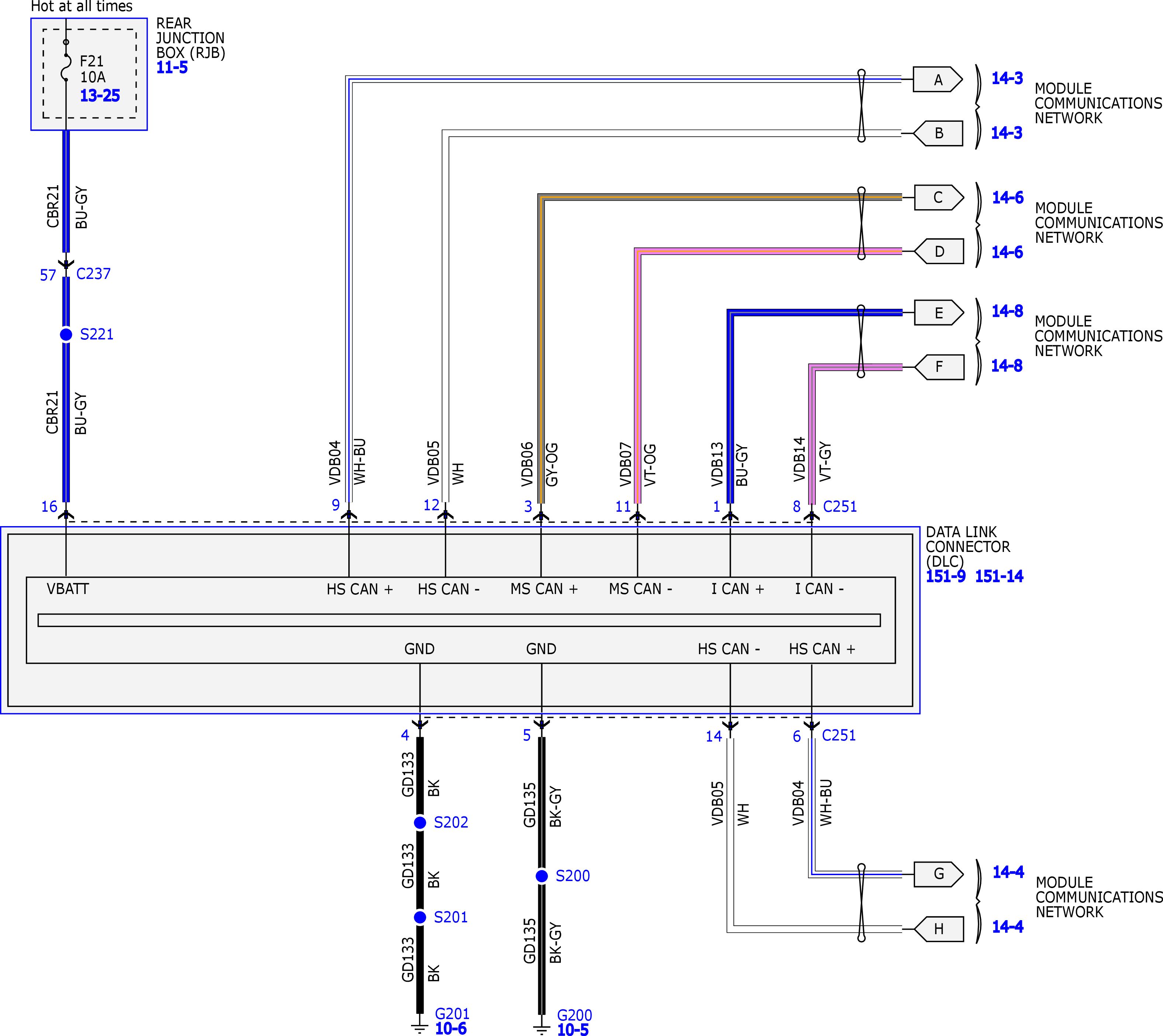

Fig 8: Module Communications Network Wiring Diagram (8 Of 8)

Courtesy of FORD MOTOR COMPANY
