Liftgate Alignment

Inspection

1. 1.

   Check liftgate to body dimensions. Refer to: Body and Frame .

1. 2.



   1. 1.

      If dimensions are ok, liftgate alignment is not necessary. Continue to Striker Adjustment. Refer to: Liftgate Striker Adjustment .

   1. 2.

      If liftgate alignment is necessary continue to

      Adjustment  .

Adjustment

Liftgate left and right, up and down alignment

1. 1.



   1. 1.

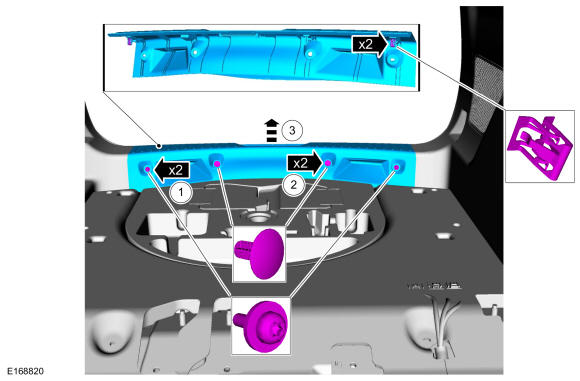

      Remove the screws.

   1. 2.

      Remove the push-pins and release the clips.

   1. 3.

      Remove the luggage compartment opening trim panel.

Courtesy of FORD MOTOR COMPANY

1. 2.

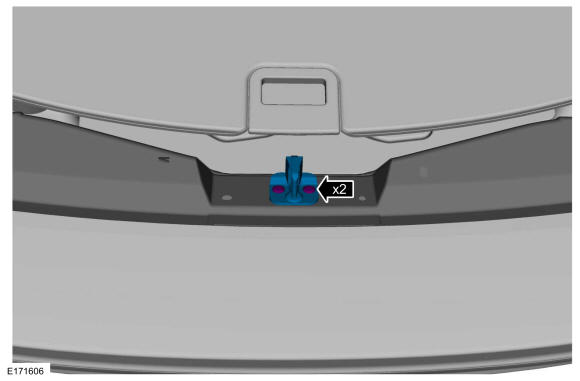

   Remove the bolts and the liftgate striker.

Courtesy of FORD MOTOR COMPANY

1. 3.

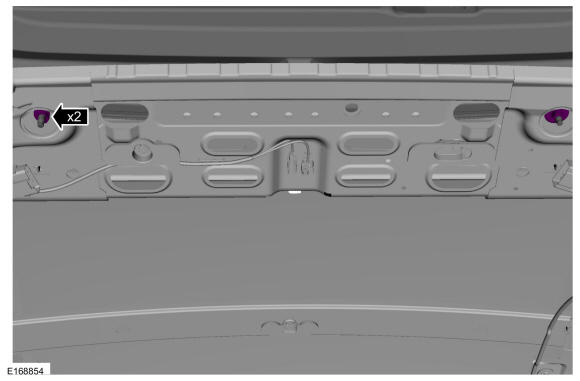

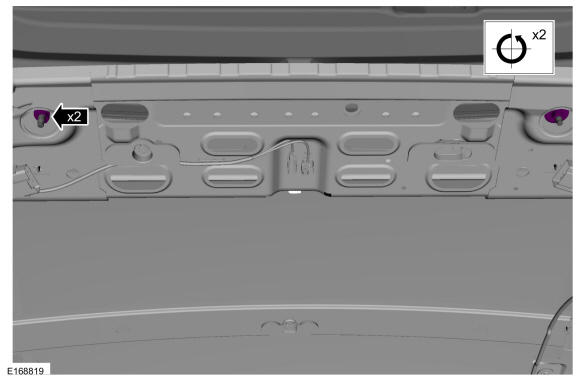

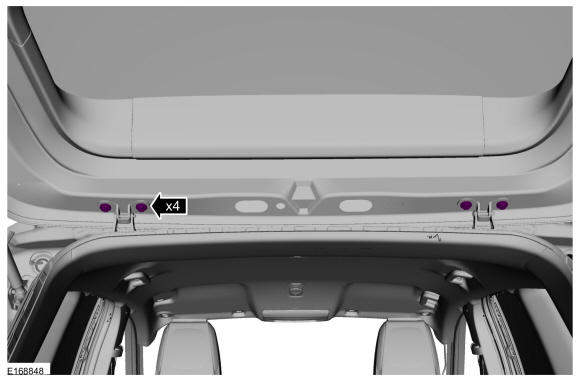

   Loosen the bolts.

   Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

1. 4.

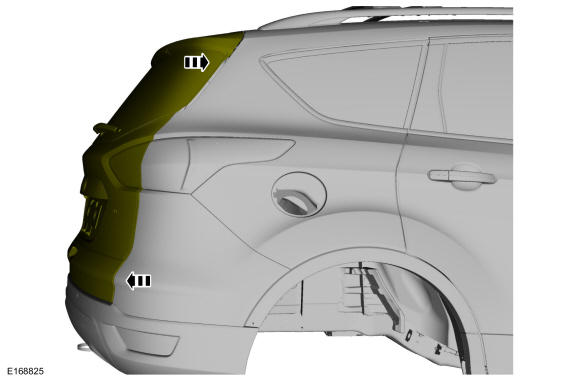

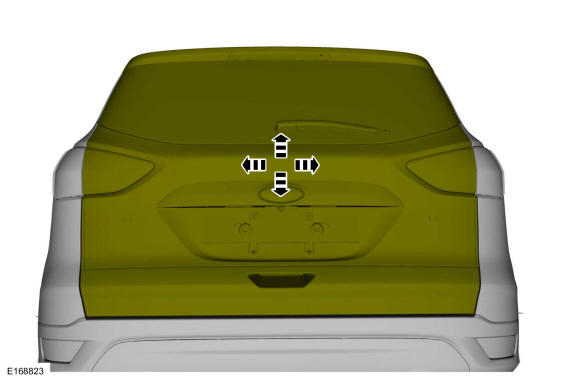

   Adjust the liftgate to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY

1. 5.

   Tighten the bolts.

   Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

1. 6.

   Install the liftgate striker and tighten the bolts.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Adjust the liftgate striker to specification. Refer to: Liftgate Striker Adjustment .

1. 8.

   Install the removed components.

Liftgate in and out alignment

1. 9.

   Lower the headliner. Refer to: Headliner - Lowering .

1. 10.

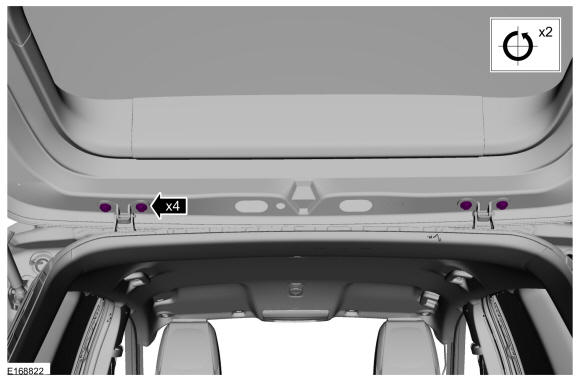

   Loosen the nuts.

   Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

1. 11.



   1. 1.

      Remove the screws.

   1. 2.

      Remove the push-pins and release the clips.

   1. 3.

      Remove the luggage compartment opening trim panel.

Courtesy of FORD MOTOR COMPANY

1. 12.

   Remove the bolts and the liftgate striker.

Courtesy of FORD MOTOR COMPANY

1. 13.

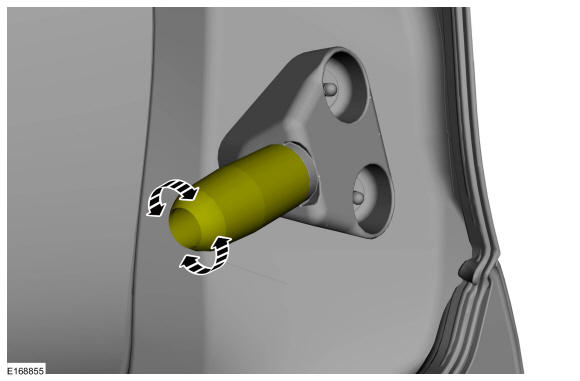

   On both sides. Adjust the nominal overslam bumpers.

Courtesy of FORD MOTOR COMPANY

1. 14.

   Adjust the liftgate to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY

1. 15.

   Tighten the nuts.

   Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

1. 16.

   Install the liftgate striker and tighten the bolts.

Courtesy of FORD MOTOR COMPANY

1. 17.

   Adjust the liftgate striker to specification. Refer to: Liftgate Striker Adjustment .

1. 18.

   Install the removed components.

Power Liftgate

1. 19.

   If equipped, carry out the power liftgate initialization. Refer to: Power Liftgate Initialization .
