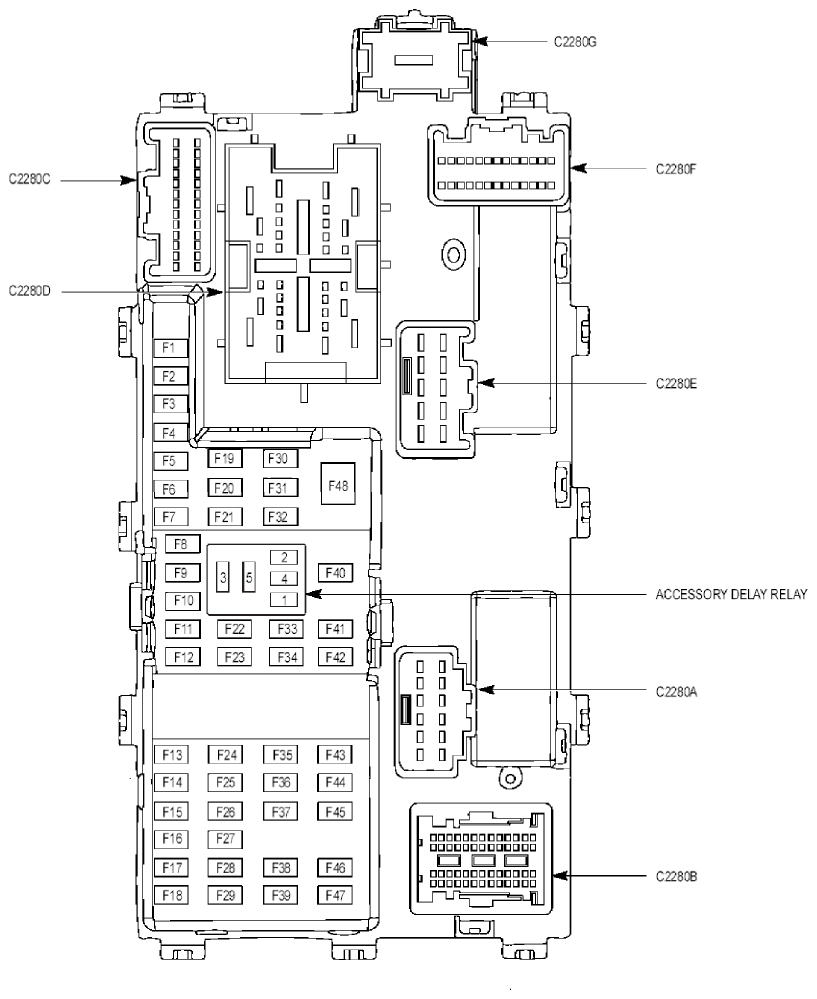

Body Control Module (BCM)
BODY CONTROL MODULE RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Accessory Delay Relay |
BODY CONTROL MODULE (BCM) FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuit protected |
|---|---|---|
| F1 | 30 | Power window motor, left front - XLT, Limited, Sport |
| F2 | 15 | Police option |
| F3 | 30 | Power window motor, right front - XLT, Limited, Sport |
| F4 | 10 | Third row power seat relay, Third row seat control switch, Second row seat control switches, Glove box, lamp, overhead console, Vanity mirror lamps, Rail lamps, Second row interior lamp, Cargo lamp, Task lamp - Police option, Cargo task lamp - Police option |
| F5 | 20 | Audio Digital Signal processing (DSP) module - with SONY® sound, Police option |
| F6 | 5 | Not used |
| F7 | 7.5 | Driver Seat Module (DSM) |
| F8 | 10 | Not used |
| F9 | 10 | Front Controls Interface Module (FCIM), Liftgate / Trunk Module (LTM), Front Control / Display Interface Module (FCDIM) - without SYNC, Accessory Protocol Interface Module (APIM) - with SYNC |
| F10 | 10 | Front wiper relay, Rear washer relay, Battery Junction Box (BJB) - F45 |
| F11 | 10 | Instrument Panel Cluster (IPC), Head Up Display (HUD) module |
| F12 | 15 | Exterior rear view mirrors - puddle lamp, Scuff plates, Backlighting, Overhead console, Rail lamps, Second row interior lamp, Cargo lamp |
| F13 | 15 | Headlamp assembly, right - turn lamp, Lamp assembly, right rear - turn lamp, Right turn trailer tow relay |
| F14 | 15 | Headlamp assembly, left - turn lamp, Lamp assembly, left rear - turn lamp, Left turn trailer tow relay |
| F16 | 10 | Headlamp assembly, right - low beam |
| F17 | 10 | Headlamp assembly, left - low beam |
| F18 | 10 | Power-Fold Seat Module (PFSM), Brake shift interlock, Powertrain Control Module (PCM), Keyless entry keypad - without IA, Passive anti-theft transceiver - without IA, Start / Stop switch - with IA |
| F19 | 20 | Seat control switch, driver side front - with memory, Police option |
| F20 | 20 | Door latch actuators |
| F21 | 10 | Keyless entry keypad |
| F22 | 20 | Horn |
| F23 | 15 | Remote Function Actuator (RFA) module - with IA, Front Lighting control Module (FLM), Steering Column Control Module (SCCM) |
| F24 | 15 | Date Link Connector (DLC), Steering Column Control Module (SCCM) |
| F25 | 15 | Liftgate latch - without IA, with manual liftgate, Liftgate release relay, - without IA, with manual liftgate - Police option, Liftgate / Trunk Module (LTM) - without IA, with power liftgate |
| F26 | 5 | Tire Pressure Monitor (TPM) module |
| F27 | 20 | Remote Function Actuator (RFA) module - with IA |
| F28 | 15 | Ignition switch - without IA, Start / Stop switch - with IA |
| F29 | 20 | Audio Control Module (ACM), Global Position System Module (GPSM) - with SYNC |
| F30 | 15 | Headlamp assemblies - park lamp |
| F32 | 15 | Master window control switch - XLT, Limited, Sport, Passenger window control switch - XLT, Limited, Sport, Front window motors - XLT, Limited, Sport, Door lock control switches, DC/AC inverter module, Police option |
| F33 | 10 | Occupant Classification System Module (OCSM) |
| F34 | 10 | Parking Aid Module (PAM), Video camera, Left Side Obstacle Detection control Module (SOD-L), Right side Obstacle Detection control module (SOD-R), Auto-dimming interior mirror |
| F35 | 5 | Head Up Display (HUD) module, Front Lighting control Module (FLM) In-vehicle temperature / humidity sensor, All Terrain Control Module (ATCM), Low gear selector switch - column shifter |
| F36 | 10 | Heated Steering Wheel Module (HSWM) |
| F37 | 10 | Restraints Control Module (RCM) |
| F38 | 10 | Auto-dimming interior mirror, Roof opening panel control switch, roof opening panel module |
| F39 | 15 | Headlamps - high beam |
| F40 | 10 | Parking lamp trailer tow relay, Rear lamp assemblies - park lamp, License plate lamps |
| F41 | 7.5 | Center stack switch assembly, Brake shift interlock |
| F42 | 5 | Generic Function Module (GFM) - Police option |
| F43 | 10 | Not used |
| F44 | 10 | Not used |
| F45 | 5 | Not used |
| F46 | 10 | HVAC module |
| F47 | 15 | Fog lamps, Exterior rear view mirrors - cornering lamp |
| F48 | 30 c.b | Master window control switch - Base / Police, Passenger window control switch - Base / Police, Rear window control switches |
