OEM Ground Distribution: Grounds: G103

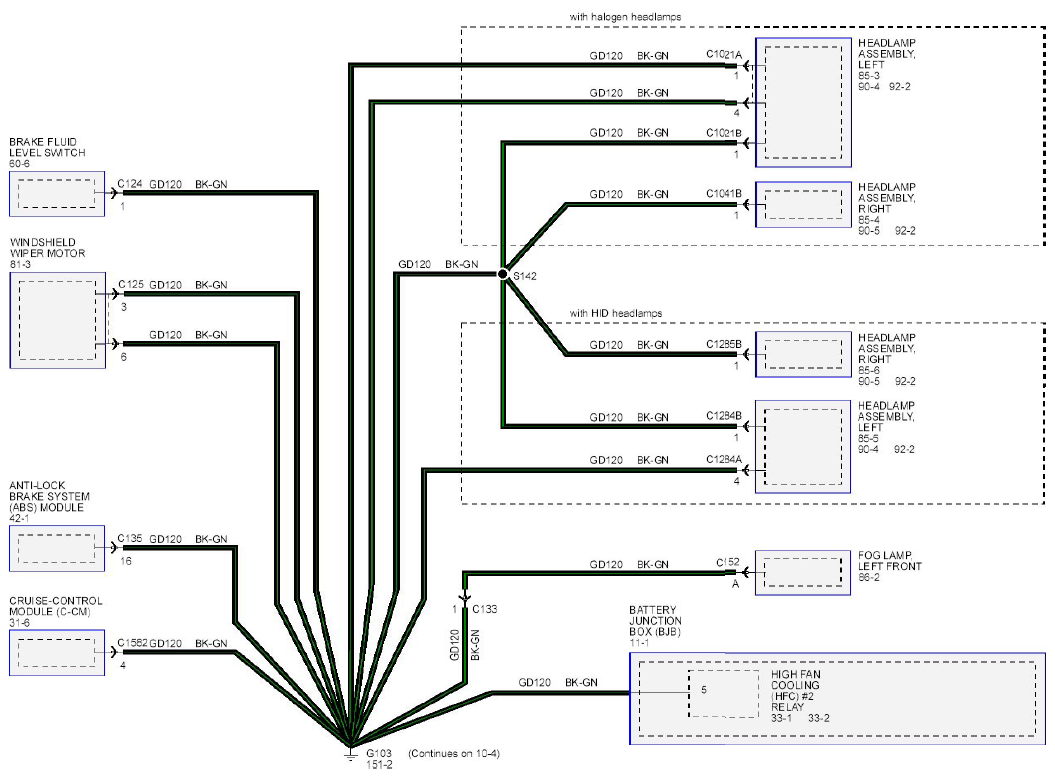

Fig 1: Grounds System Wiring Diagram (G103)
G08748275Courtesy of FORD MOTOR CO.
