OEM Ground Distribution: Grounds: G201

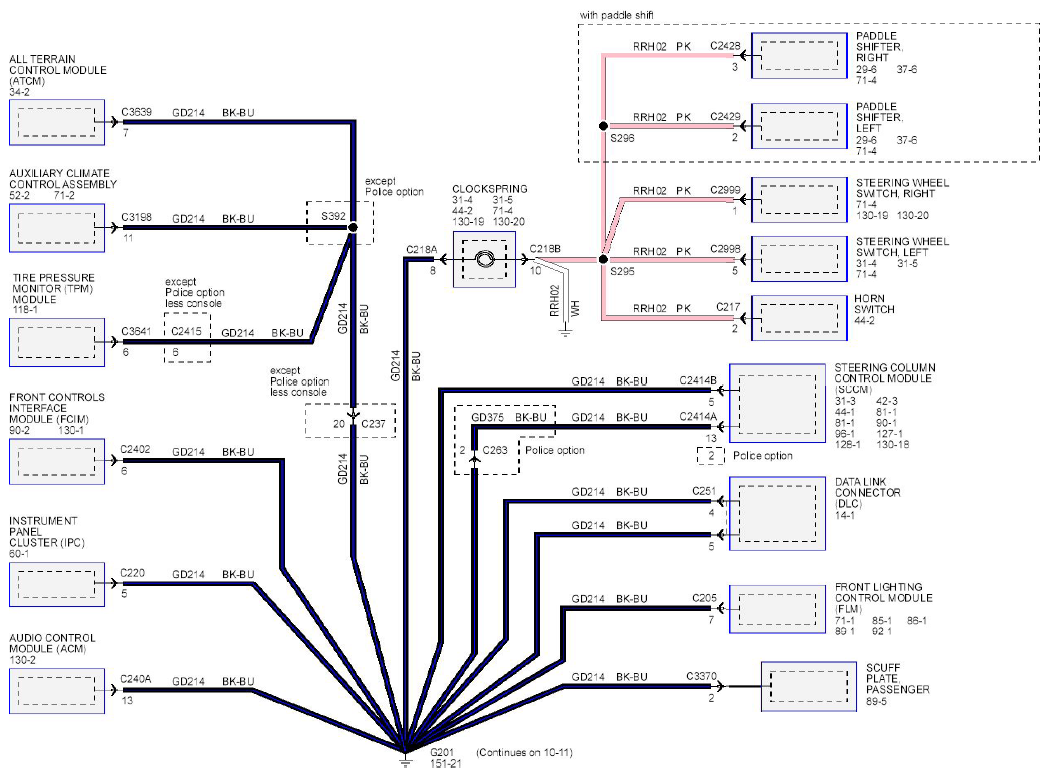

Fig 1: Grounds System (G201) Wiring Diagram (1 Of 2)
G08748282Courtesy of FORD MOTOR CO.

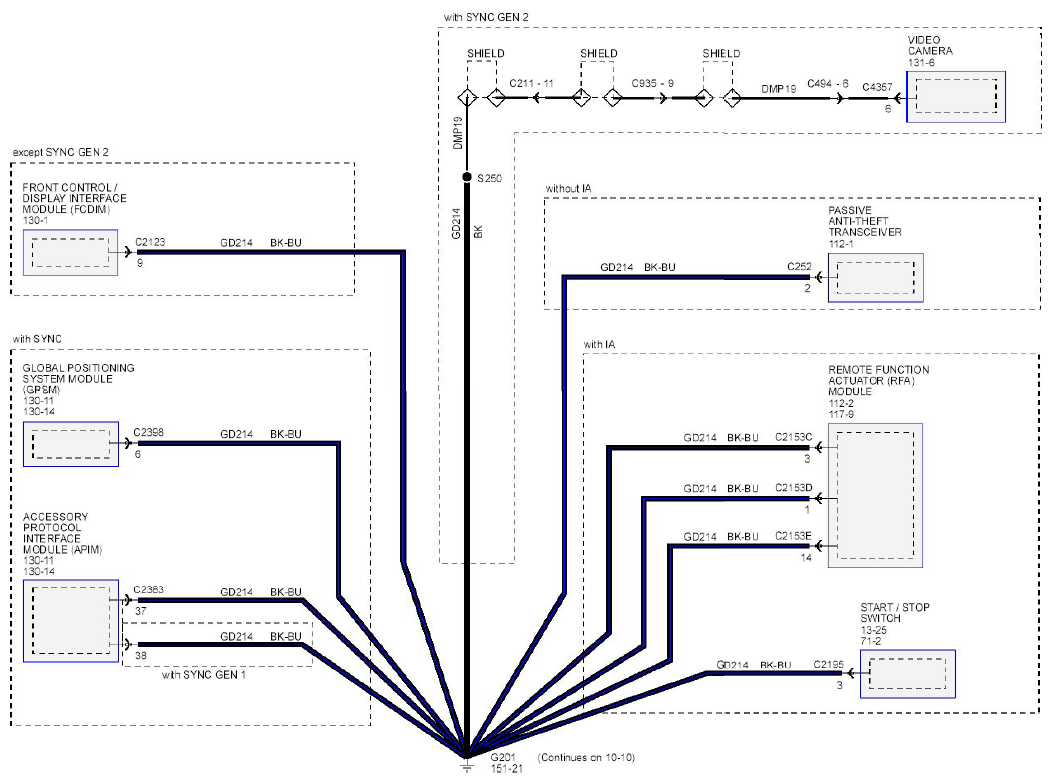

Fig 2: Grounds System (G201) Wiring Diagram (2 Of 2)
G08748283Courtesy of FORD MOTOR CO.
