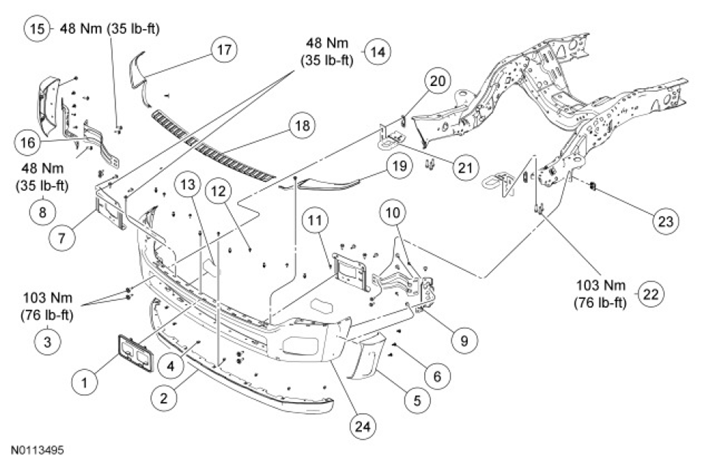

Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17A385 | License plate bracket |
| 2 | 17626 | Valance (2WD/4WD) |
| 3 | 17C756 | Front bumper retaining bolt (4 required) |
| 4 | W520822 | Valance to bumper nut (7 required) |
| 5 | 16038/16039 | Front bumper extentions (RH/LH 450/550 only) |
| 6 | 17C756 | Front bumper extension side retainers (6 required 450/550 only) |
| 7 | 17B984/17B985 | Front bumper mounting plate (RH/LH) |
| 8 | W705201 | Inner bumper mounting bracket bolts (4 required) |
| 9 | 17754/17755 | Inner bumper mounting bracket (RH/LH) |
| 10 | W503924 | Front bumper extension inner bolts (4 required 450/550 only) |
| 11 | W503924 | Front bumper to valance bolts (7 required) |
| 12 | 17C756 | Front bumper to valance pushpins (6 required) |
| 13 | 17754/17755 | Front bumper crush can (RH/LH) |
| 14 | W705201 | Front bumper mounting plate bolts (8 required) |
| 15 | W705201 | Front bumper side bracket bolts (8 required) |
| 16 | 17B836/17B837 | Front bumper side mounting bracket (RH/LH) |
| 17 | 17K832/17K833 | Outer front bumper step pad (RH/LH) |
| 18 | 17C829 | Center front bumper step pad |
| 19 | 17C756 | Outer front bumper step pad retainer (2 required) |
| 20 | W706755 | Front bumper retainer nuts (2 required) |
| 21 | 17A954/17A955 | Front tow hooks (RH/LH) |
| 22 | W713172 | Front tow hook bolts (6 required) |
| 23 | W714663 | Front bumper side mounting bracket retainer nuts (2 required) |
| 24 | 17757 | Front bumper |
- For additional information, refer to the procedures in this article.
