Selector Lever - Column Shift: Notes

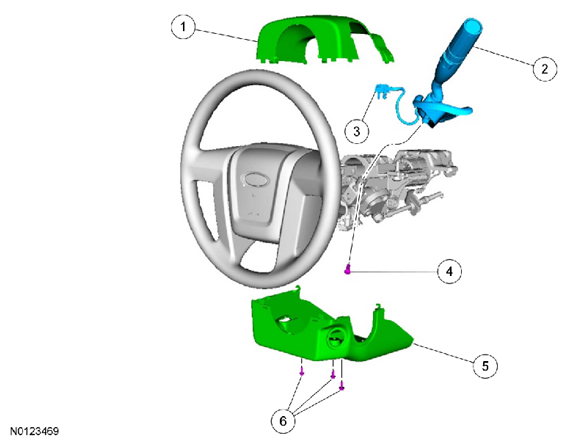

Fig 1: Identifying Selector Lever - Column Shift Components
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
3530
Upper steering column shroud
2
7210A
Selector lever
3
-
Tow/Haul switch electrical connector (part of 7210A)
4
W712000
Selector lever bolt
5
3530
Lower steering column shroud
6
W710485
Lower steering column shroud screws (3 required)
