Passenger Compartment Fuse Panel
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

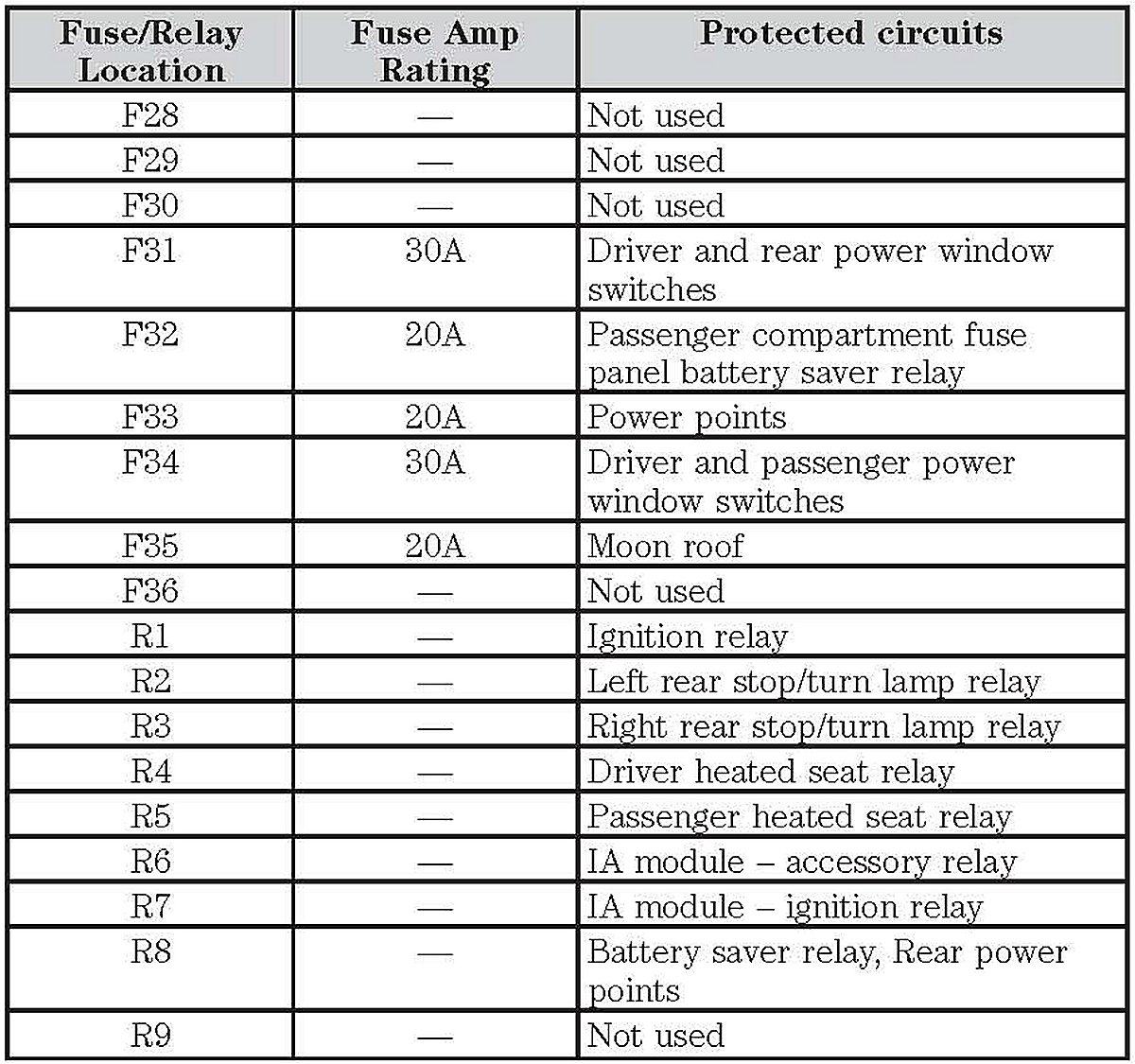

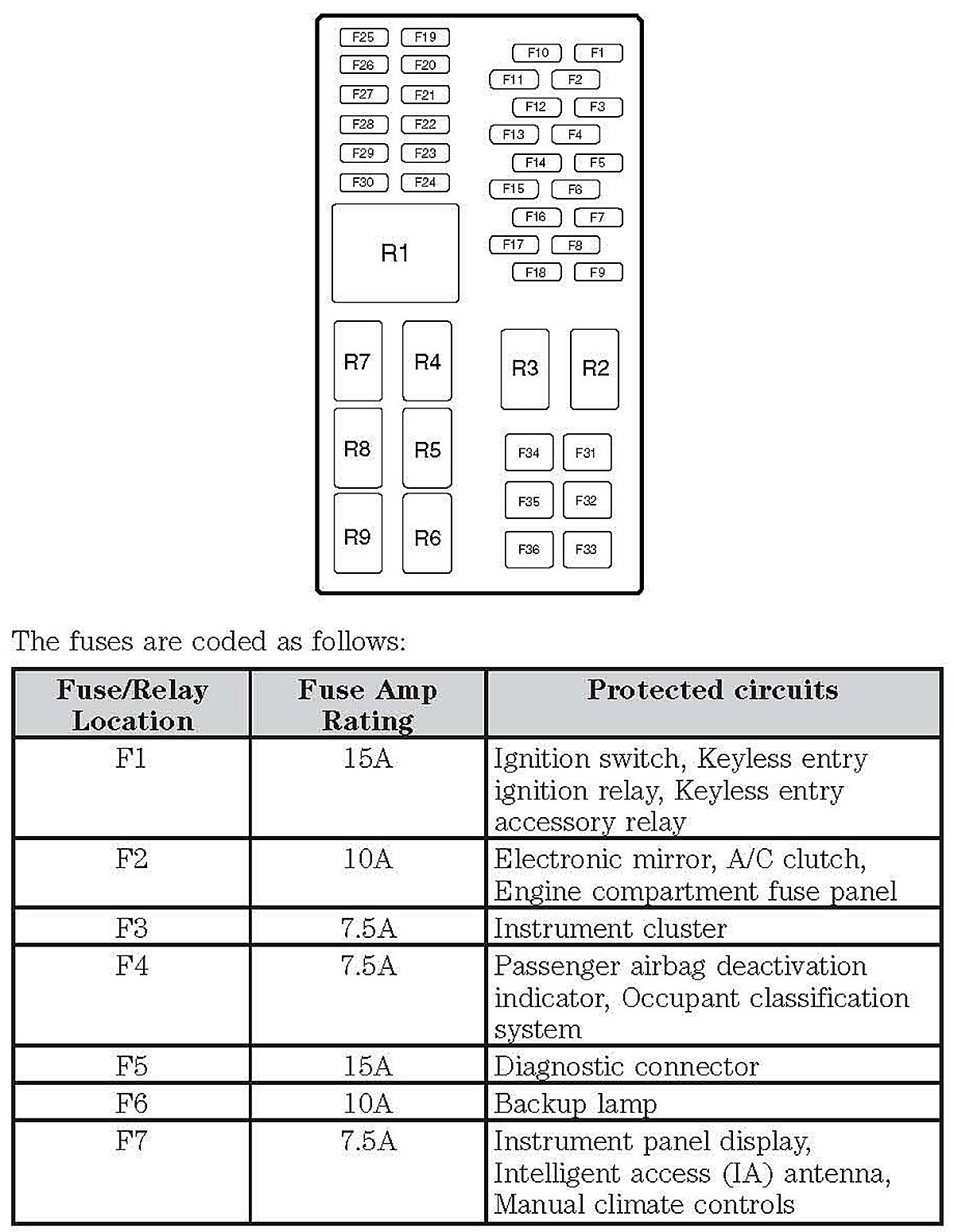

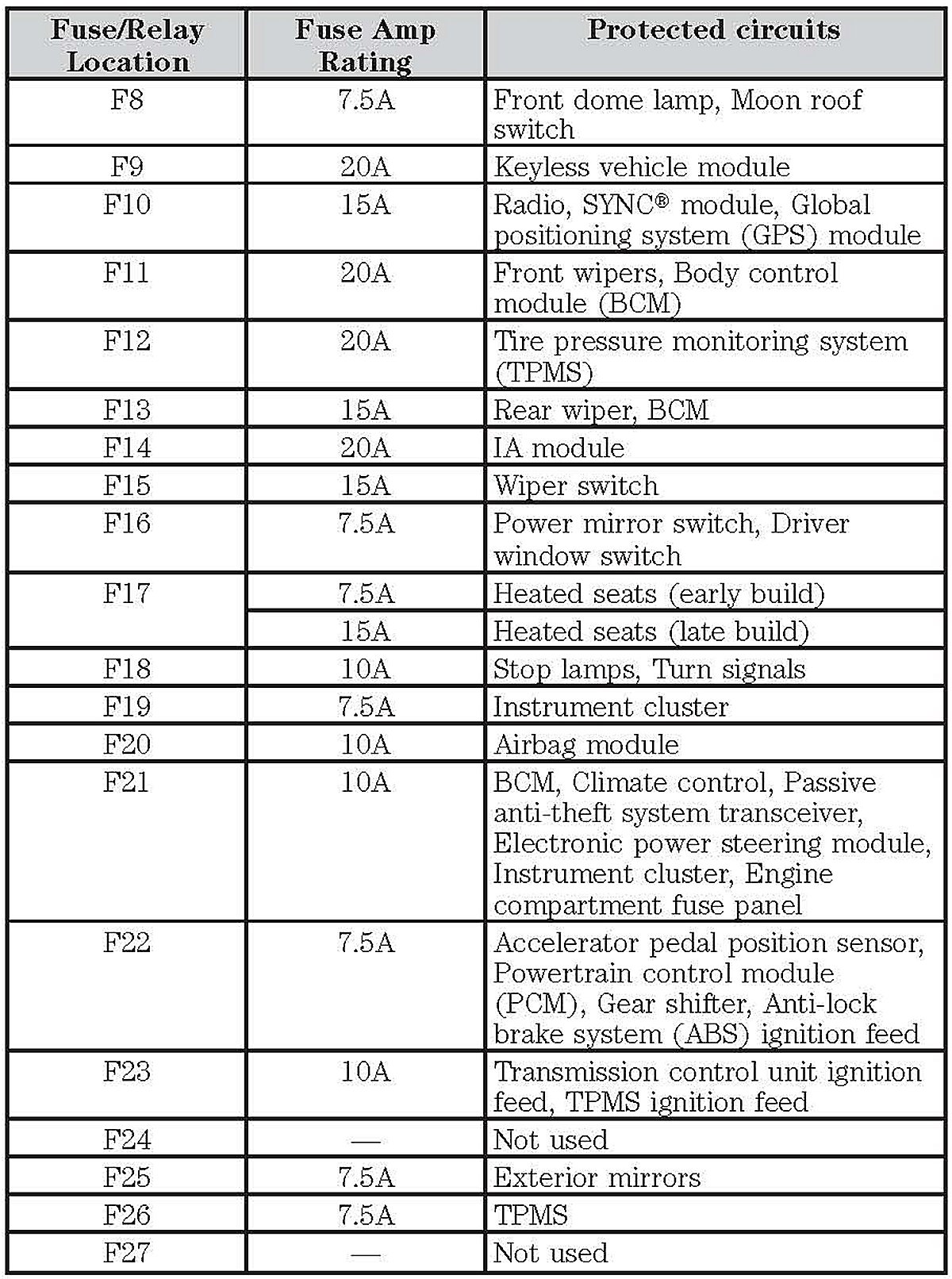

Passenger Compartment Fuse Panel
Passenger Compartment Fuse Panel
The fuse panel is located behind the glove box.
