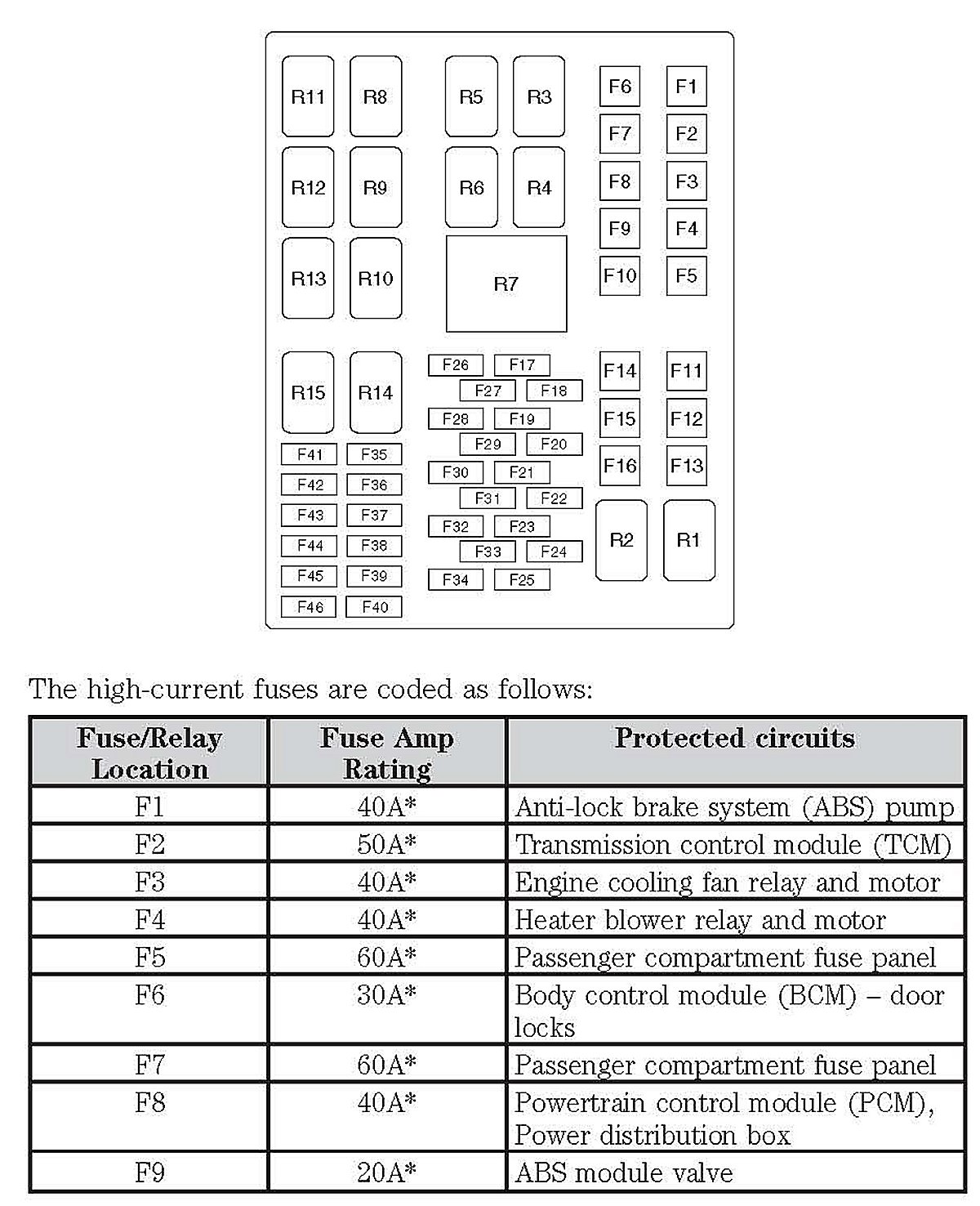

Power Distribution Box
Power Distribution Box
The power distribution box is located in the engine compartment.
