Input Shaft

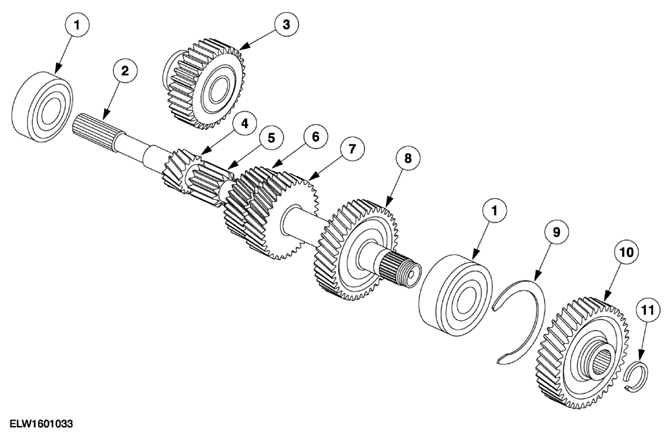

Fig 1: Identifying Input Shaft And Related Components
G08867449Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7025 Bearing
2 7L226 Input shaft
3 7141 Reverse idler gear
4 - 1st gear (part of 7L226)
5 - Reverse gear (part of 7L226)
6 - 2nd gear (part of 7L226)
7 - 3rd gear (part of 7L226)
8 - 4th gear (part of 7L226)
9 7026 Retaining ring
10 - 5th gear (part of 7L226)
11 E860332 Snap-ring
