Transaxle Case: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove and discard the halfshaft seal.

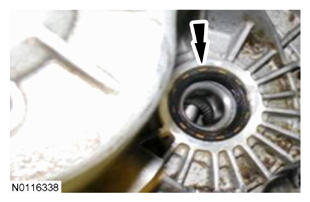

    Fig 1: Locating LH Halfshaft Seal
    G08867308Courtesy of FORD MOTOR CO.
  2. Using the special tools, remove the differential case bearing cup.

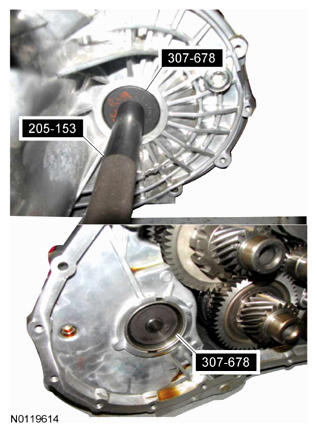

    Fig 2: Removing Differential Case Bearing Cup Using Special Tools
    G08867309Courtesy of FORD MOTOR CO.
