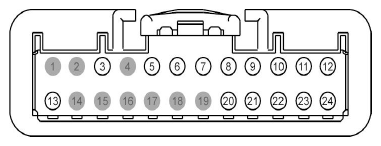

| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
CLF23 (WH-VT) |
22 |
SWITCH - HEADLAMP OFF |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
CRW20 (GY-YE) |
22 |
SWITCH - REAR WIPER INTERVAL (D) |
|
| 6 |
VRW11 (GN-BN) |
22 |
SWITCH - FRONT WIPER INTERVAL VARIABLE RHEOSTAT |
|
| 7 |
CLS39 (VT-WH) |
22 |
SWITCH - TURN LEFT |
|
| 8 |
CLS41 (GY-YE) |
22 |
SWITCH - TURN RIGHT |
|
| 9 |
CLF24 (YE-BU) |
22 |
SWITCH - HEADLAMP ON |
|
| 10 |
CRD09 (BU-GY) |
22 |
SWITCH - HEATER REAR WINDOW |
|
| 11 |
CLN56 (BN-VT) |
22 |
DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN |
|
| 12 |
CLN55 (YE-VT) |
22 |
DIMMER - IP/SWITCH ILLUMINATION # DIM UP |
|
| 13 |
CLF18 (BU-WH) |
22 |
SWITCH - BEAM LOW |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
CLN04 (BU-BN) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
| 21 |
CRH03 (BN) |
22 |
CTRL MOD. - STEERING WHEEL # HORN |
|
| 22 |
CLF27 (GN-BN) |
22 |
SWITCH - FLASH TO PASS |
|
| 23 |
CPL22 (GN-VT) |
22 |
SWITCH - LIFTGATE/DECKLID/CARGO # LOCK |
|
| 24 |
CLN02 (VT-BN) |
20 |
CTRL MOD. - ENTRY ILLUM. (FRONT) |
|
