Power Fold Module (PFM) Connector End View (C4250E)

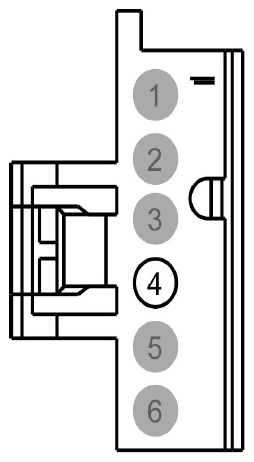

Fig 1: Identifying Power Fold Module (PFM) Connector (C4250E)
G08671747Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 * * Not Used
2 * * Not Used
3 * * Not Used
4 CPS48 (BU) 20 CTRL MOD. - RELAY(S) 3RD ROW SEAT (ENABLE)
5 * * Not Used
6 * * Not Used
