Audio System/Navigation
>>
With Redundant Audio Controls / Sync Without Navigation
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
With Redundant Audio Controls / Sync Without Navigation

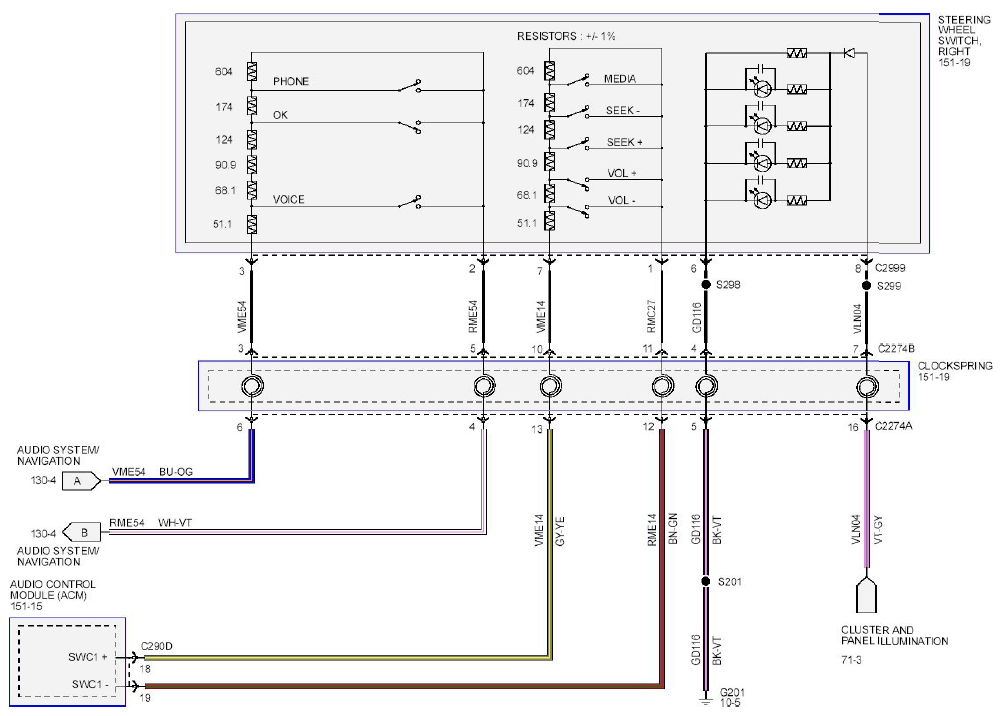

Fig 1: Audio System/Navigation - Wiring Diagram (With Redundant Audio Controls/Sync Without Navigation)
Courtesy of FORD MOTOR CO.
