Structural Brace: Service and Repair

Side Impact Reinforcement - Police Package

WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Special Tool(s)

Material(s)

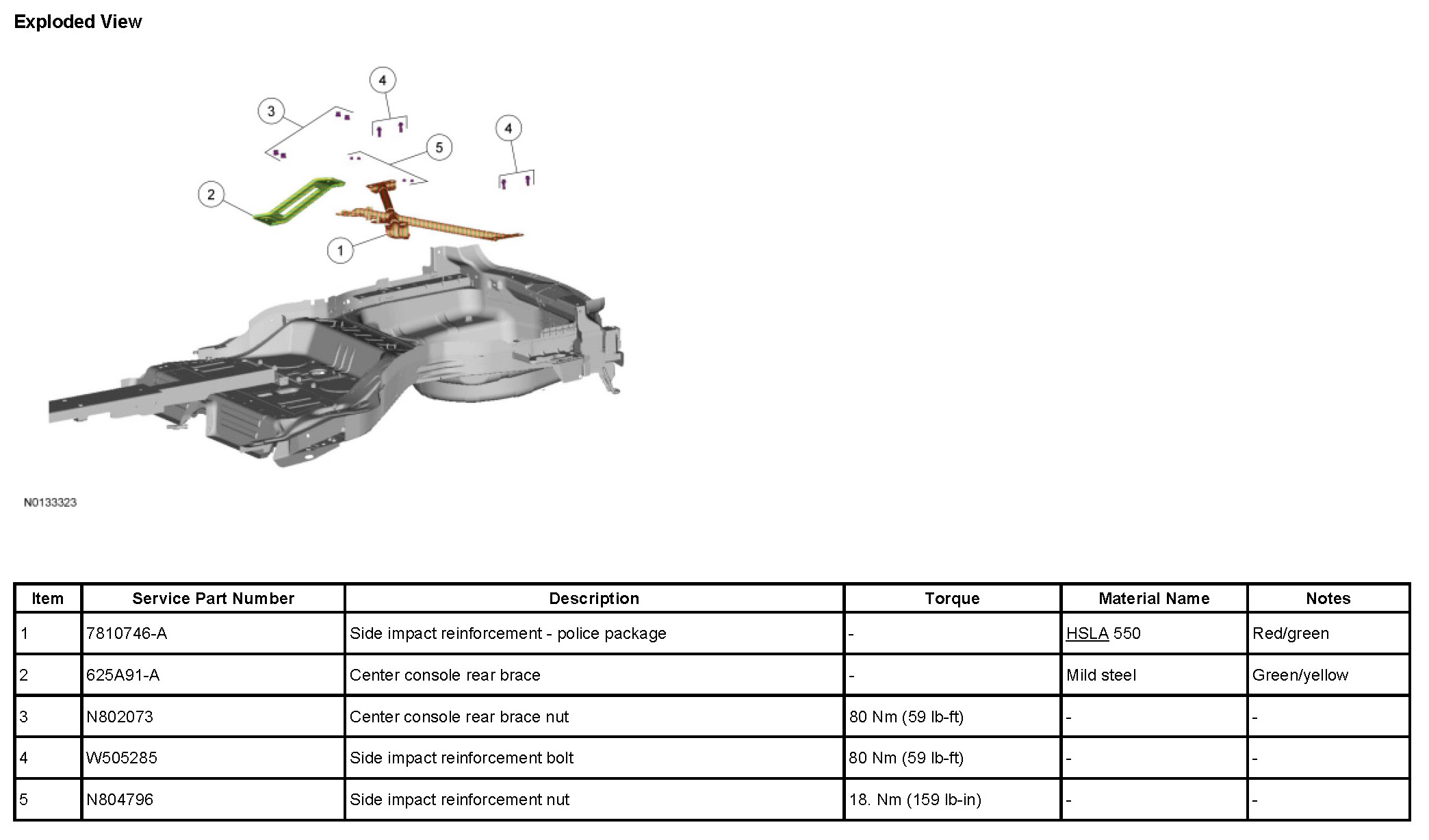

Exploded View

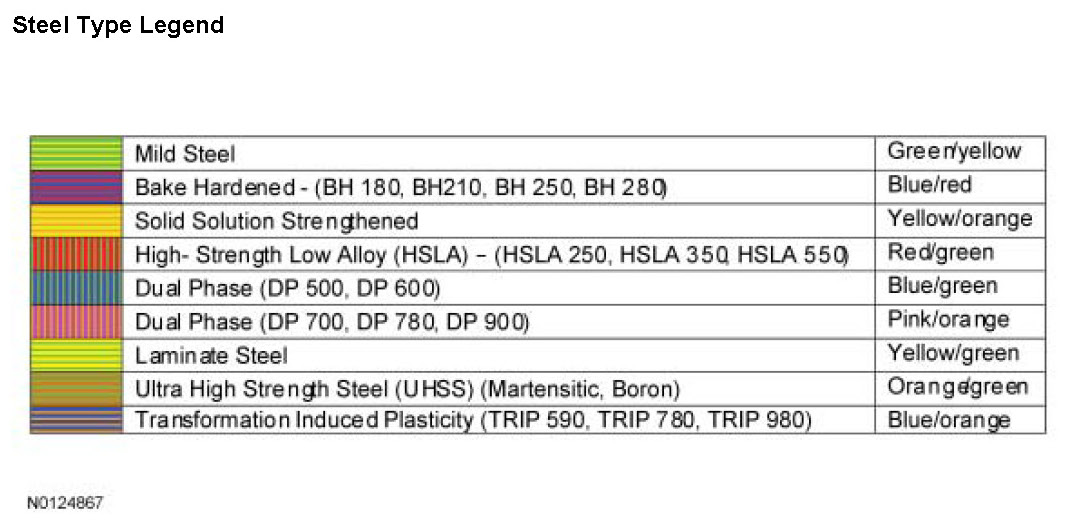

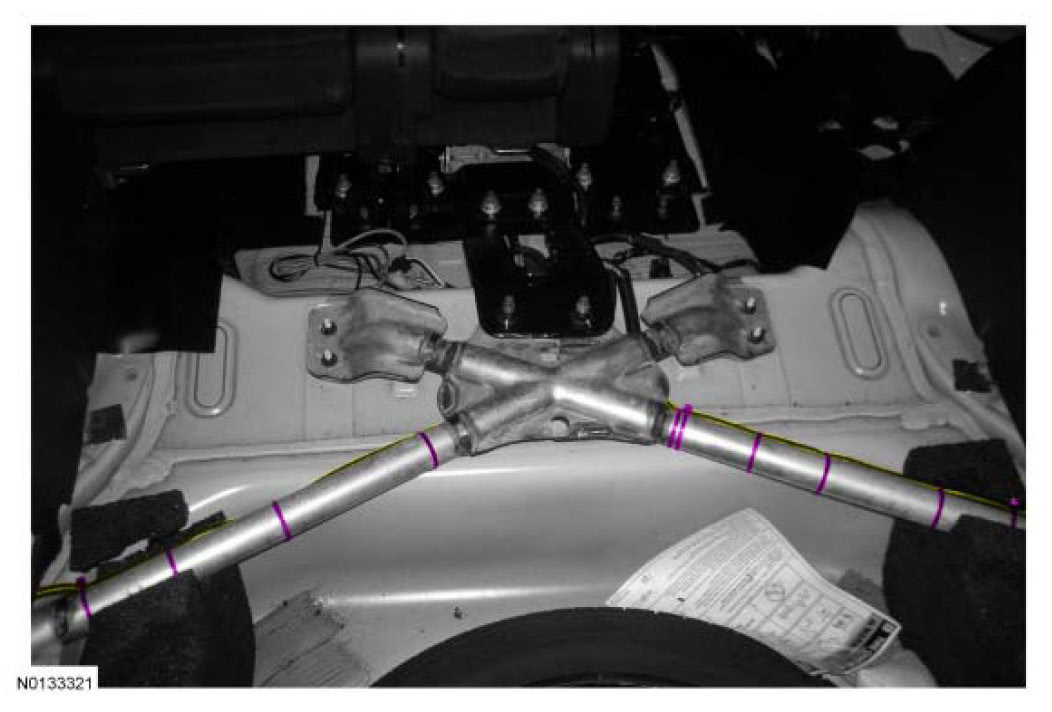

Steel Type Legend







Removal

NOTE: Removal steps in this procedure may contain installation details.

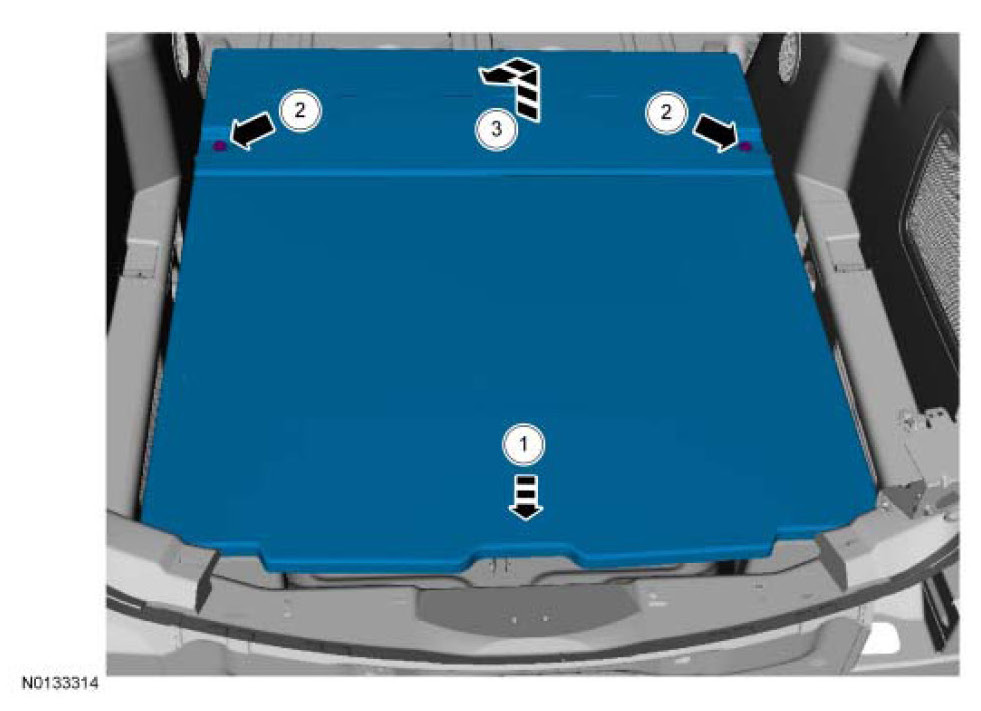

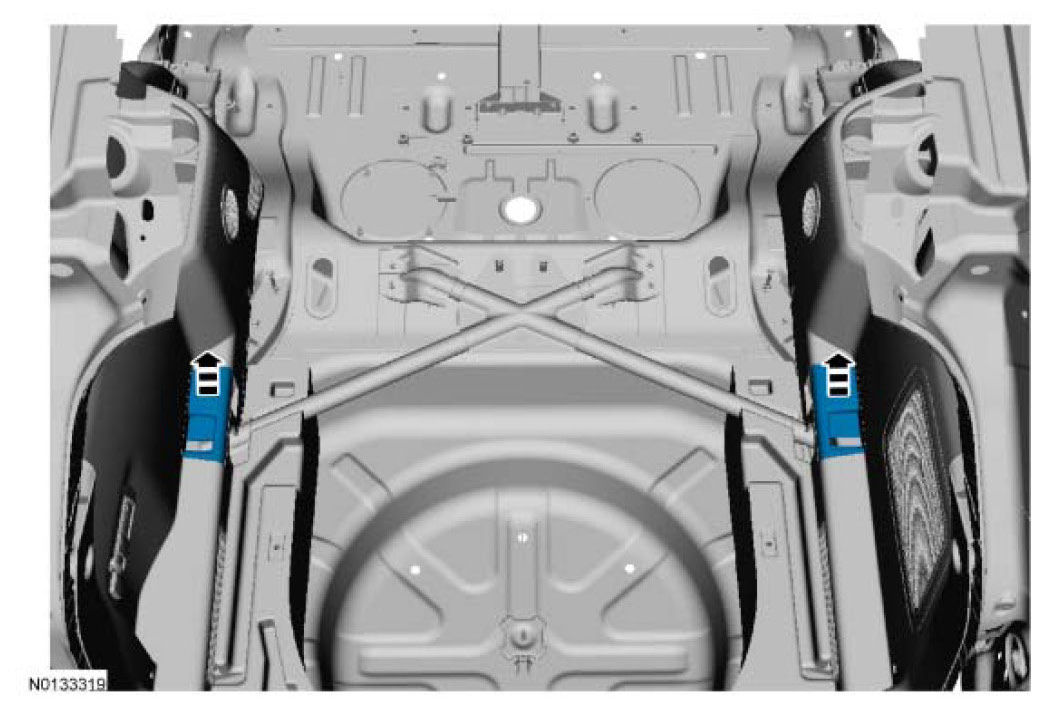

1.







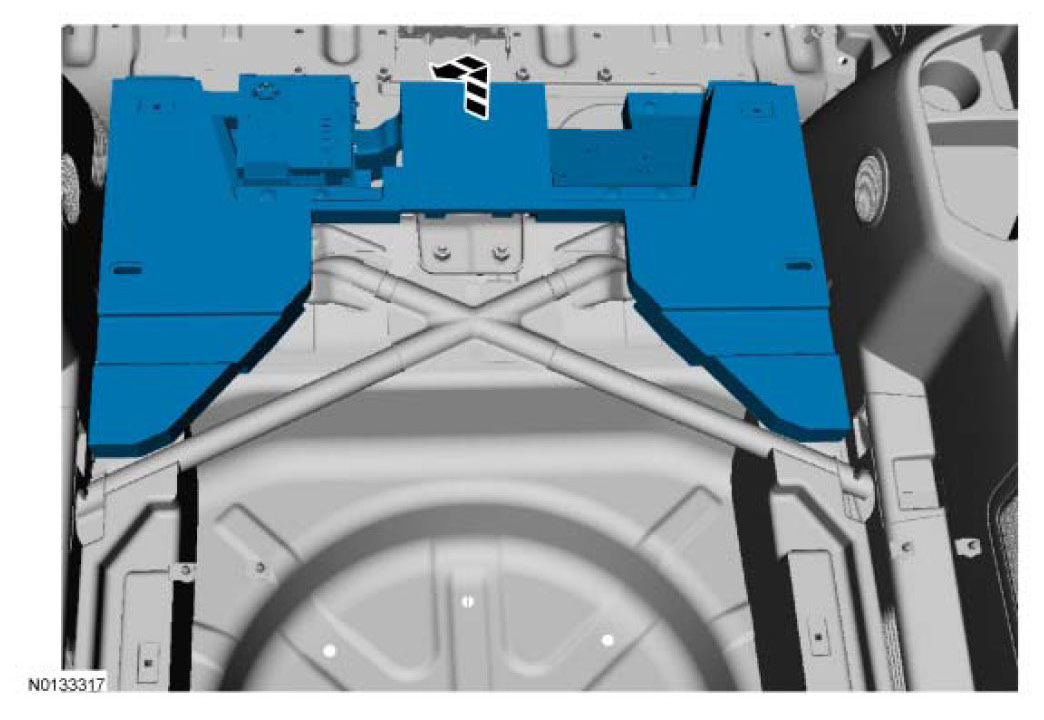

2.







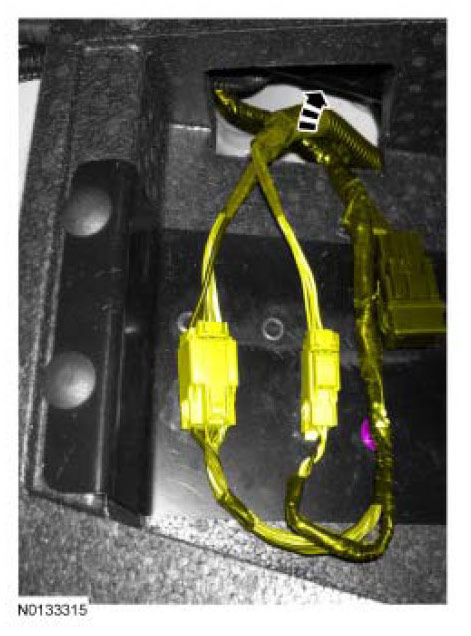

3.







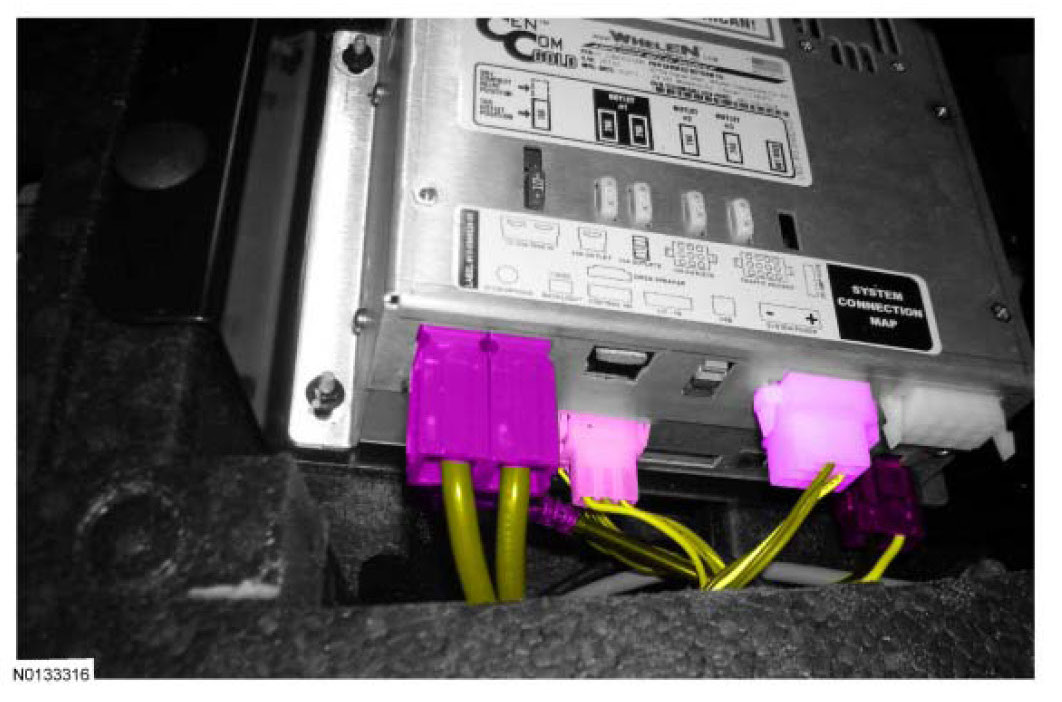

4.







5.







6.







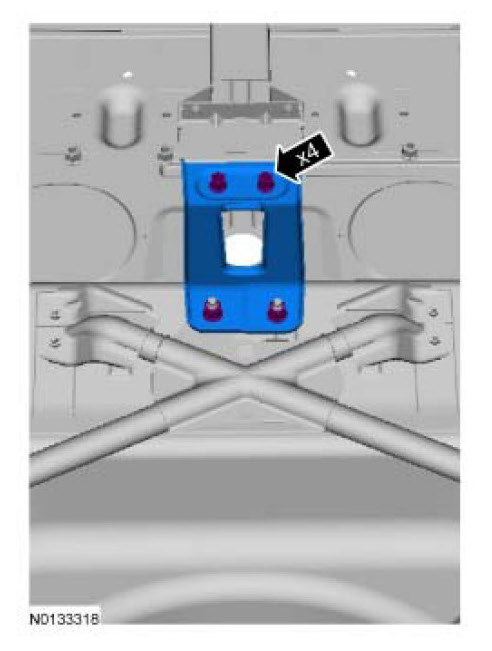

7.
- 80 Nm (59 lb-ft)







8.

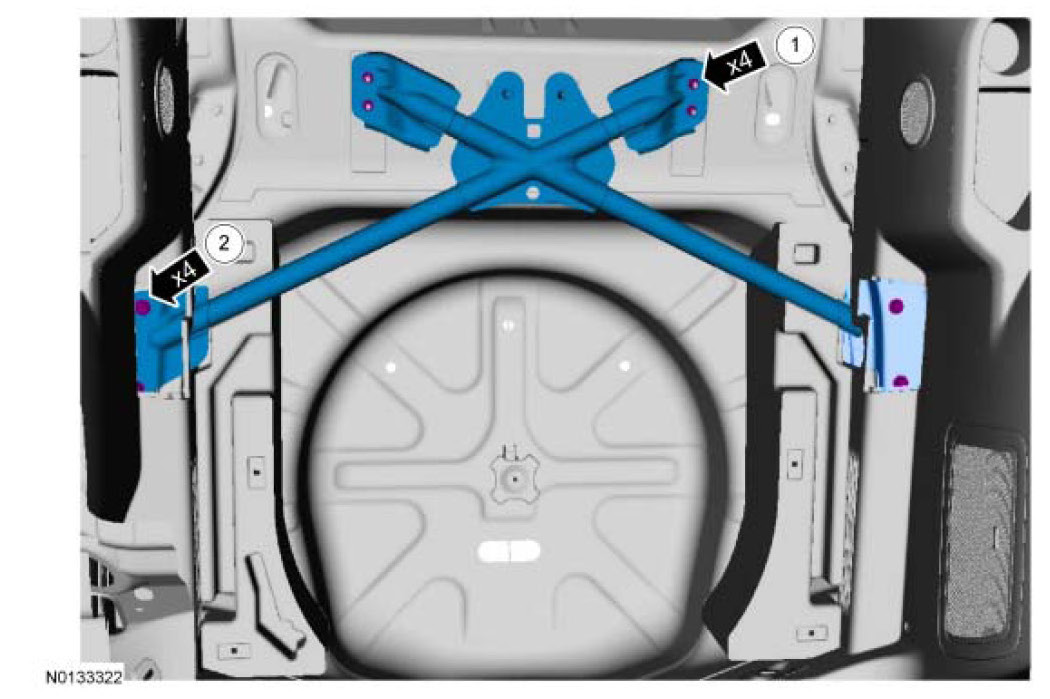

1.
- 18 Nm (159 lb-in)
2.
- 80 Nm (59 lb-ft)







Installation

1. To install, reverse the removal procedure.
