Differential Assembly and Final Drive Input

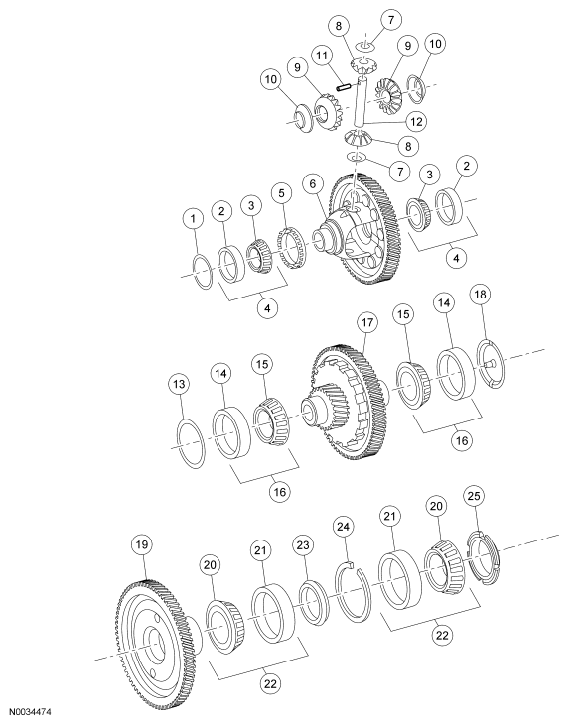

Fig 1: Exploded View Of Differential Assembly And Final Drive Input

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	4067	Shim - differential bearing
2	4222	Cups - differential bearing
3	4221	Cone and roller assemblies
4	4221	Bearing assemblies
5	7H150	Wheel - Output Shaft Speed (OSS) sensor
6	7F465	Differential and gear assembly - transaxle
7	4230	Pinion thrust washers (2 required)
8	4215	Differential pinion gears (2 required)
9	4236	Differential side gears (2 required)
10	4228	Side gear thrust washers (2 required)
11	4241	Pin
12	4211	Differential pinion shaft
13	7H367	Shim - transfer shaft roller bearing
14	7H344	Cups - transfer shaft roller
15	7170	Cone and roller assemblies
16	7H338	Bearing assemblies - transfer shaft (2 required)
17	7H348	Transfer shaft gear assembly
18	7L267	Funnel - transfer shaft
19	7F342	Gear - final drive input
20	7M102	Cone and roller assemblies
21	7C236	Bearing cups
22	7F403	Bearing assemblies (2 required)
23	7H369	Spacer
24	7H106	Retainer ring
25	7B364	Nut
