Transaxle Support Insulator - Anti-Roll: Notes

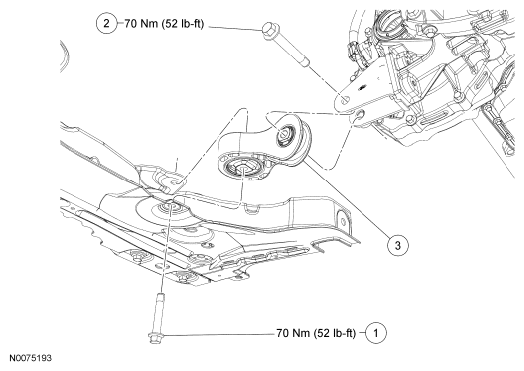

Fig 1: Transaxle Support Insulator Related Replacement Components With Torque Specifications -- Anti-Roll
G06292850Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W702826 Roll restrictor-to-subframe bolt
2 W702801 Roll restrictor-to-transaxle bracket bolt
3 6P082 Roll restrictor
