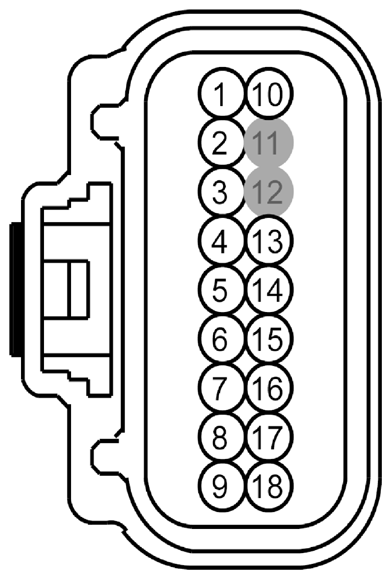

Occupant Classification System Module (OCSM) Connector End View (C3159)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP41 (BU) | 20 | FUSE - 41 OR CIRCUIT BREAKER | |
| 2 | CR140 (YE-GN) | 20 | CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR LEFT (#1) | |
| 3 | VR211 (WH-BN) | 20 | SENSOR - OCCUPANT CLASSIFICATION WEIGHT LEFT (#1) | |
| 4 | VR212 (YE-GN) | 20 | SENSOR - OCCUPANT CLASSIFICATION WEIGHT RIGHT (#2) | |
| 5 | RR140 (GN-OG) | 20 | CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR LEFT (#1) | |
| 6 | RR153 (GY-BU) | 20 | CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) | |
| 7 | VR226 (YE-GY) | 20 | SENSOR - OCCUPANT CLASSIFICATION WEIGHT (#3) | |
| 8 | CR153 (GN-WH) | 20 | CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) | |
| 9 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 10 | CR141 (BN-YE) | 20 | CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR RIGHT (#2) | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | RR141 (VT-BN) | 20 | CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR RIGHT (#2) | |
| 14 | GD143 (BK-VT) | 20 | GROUND - PILLAR B LEFT | |
| 15 | RR154 (VT-WH) | 20 | CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#4) | |
| 16 | VR227 (VT-GN) | 20 | SENSOR - OCCUPANT CLASSIFICATION WEIGHT (#4) | |
| 17 | CR154 (VT-OG) | 20 | CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#4) | |
| 18 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
| Available Pigtail Kits | |
|---|---|

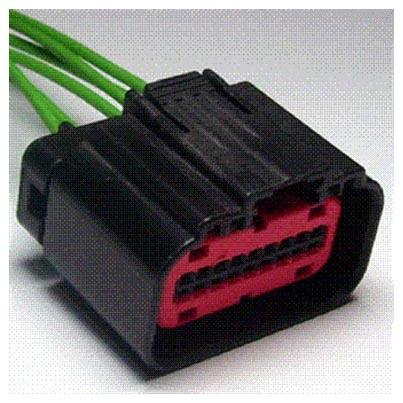

| Pigtail Kit Part Number WPT-1342 | Service Part Number: CU2Z-14S411-GA Gauge: 20 Pin material: Silver Cavities: 18 Vehicle Uses
|
