Differential Fluid Level Check: Check
WARNING: This page is about a different variant/trim than selected.
- Raise the vehicle. Refer to: JACKING & LIFTING .

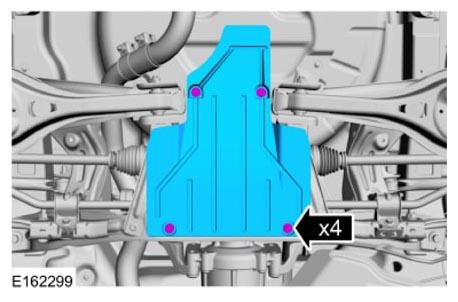

- Remove the retainers and the air deflector.

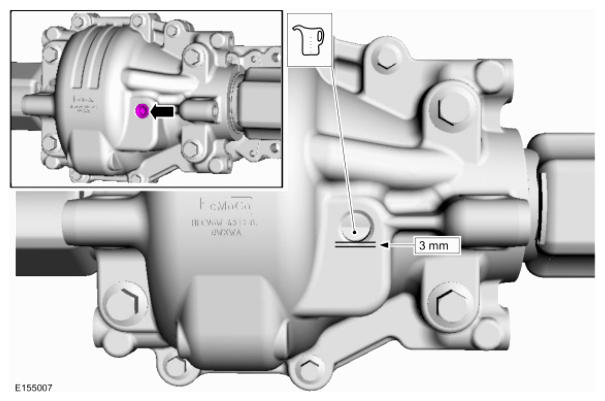

- Remove the filler plug.
- If empty, fill the rear axle with 0.54L (1.15pt) of rear axle lubricant. If fluid level is low, fill to 3-5 mm (0.118-0.196 in) below the bottom of the filler hole and install the filler plug.
Material: Motorcraft ® SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL (WSP-M2C197-A)
Torque:
- Stage 1: 177 lb.in (20 Nm)
- Stage 2: 180°
- Install the air deflector and retainers.
- Lower the vehicle. Refer to: JACKING & LIFTING .
