Steering Wheel Rotation Sensor: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

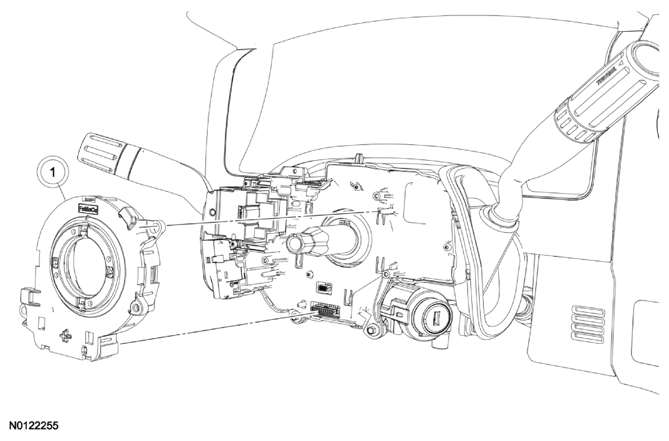

Fig 1: Identifying Steering Wheel Rotation Sensor
G07958232Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3F818 Steering wheel rotation sensor
