Wheel Speed Sensor - Front: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

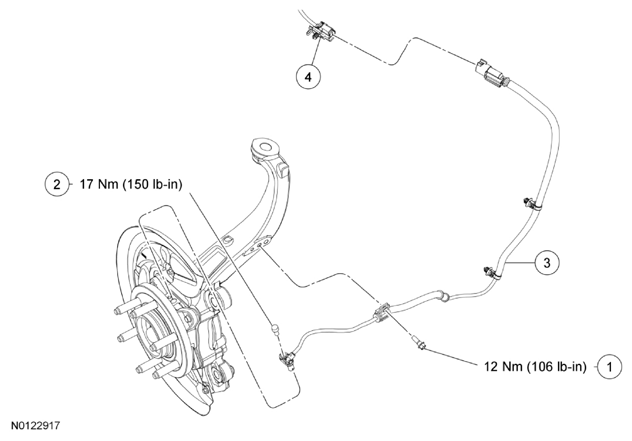

Fig 1: Front Wheel Speed Sensor With Torque Specifications -- Front
G07958234Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W710279 Wheel speed sensor harness bolt
2 - Wheel speed sensor bolt (part of 2C204)
3 2C204 Wheel speed sensor
4 - Wheel speed sensor electrical connector (part of 14250)
