Remote Function Actuator (RFA) Module: Removal

WARNING: This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If equipped with push button start the keys need to be programmed into the new RFA module during ignition off. Once the push button start keys have been programmed into the new RFA module, the ignition must be changed to the ON mode in order to carry out the PATS parameter reset procedure with the RFA module and the PCM.

1.

Remove the passenger front seat. Refer to: Front Seat .

2.

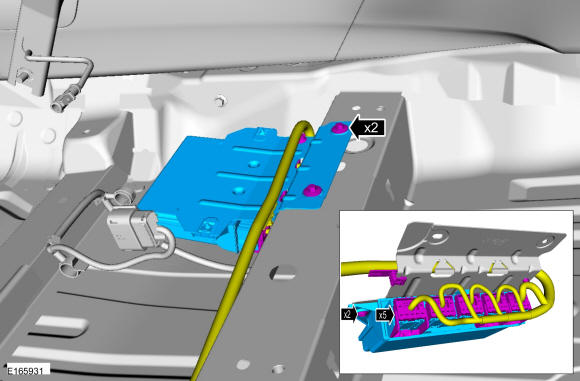

Remove the RFA module.
- Remove the bolts and the RFA module and bracket assembly.
  Torque

  : 89 lb.in (10 Nm)
- Release the wiring harness retainers and disconnect the electrical connectors.
- Remove the bolts and the RFA module from the RFA module bracket assembly.

Courtesy of FORD MOTOR COMPANY
