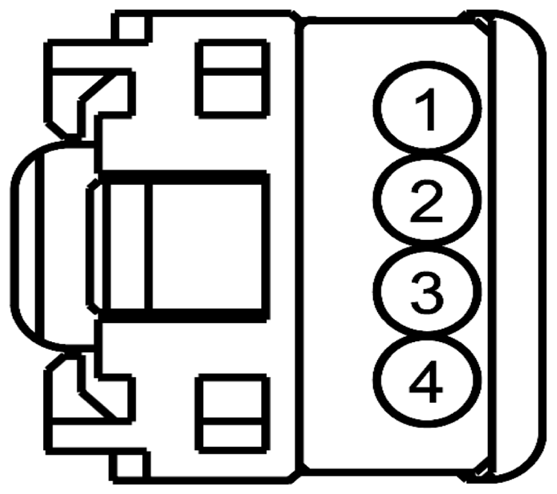

Master Window Control Switch Connector End View (C504B)

Fig 1: Identifying Master Window Control Switch Connector (C504B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RCA17 (WH-BN)	22	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT
2	RPW37 (VT-GN)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS
3	VPW38 (YE-BU)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1
4	VPW39 (BU-WH)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2

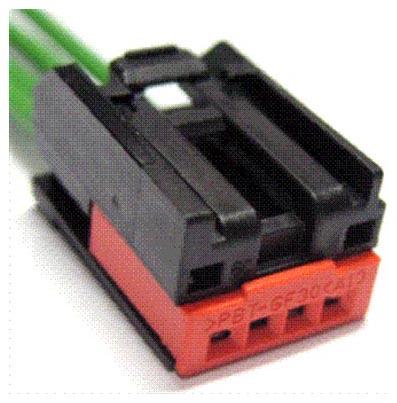

Available Pigtail Kits

Pigtail Kit Part Number WPT-1139

Service Part Number: 3U2Z-14S411-PRC  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Connector - Audio Input Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Sensor - Steering Wheel Position Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)
