Transmission Control Module (TCM): Removal

  1. Download the module information to the diagnostic tool using the Programmable Modules Installation routine.
  2. Refer to: BATTERY TRAY - 1.6L DURATEC-16V TI-VCT (88KW/120PS) - SIGMA .

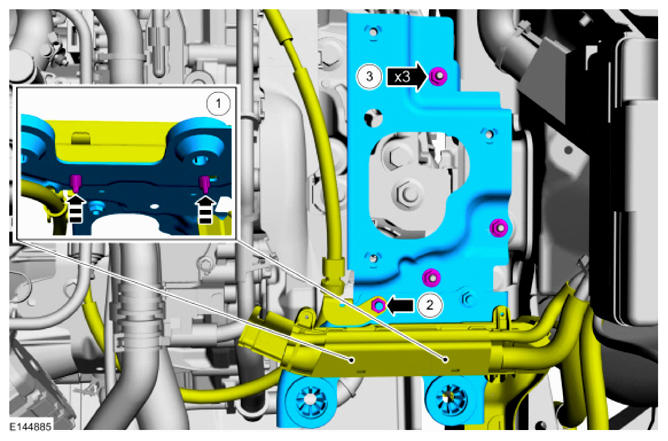

  3. G09551440

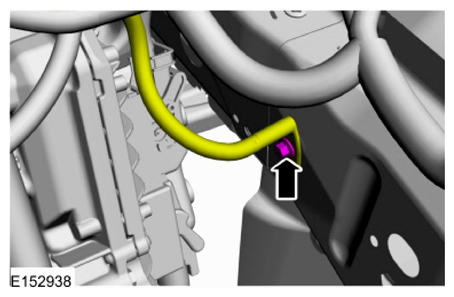

  4. G09551441

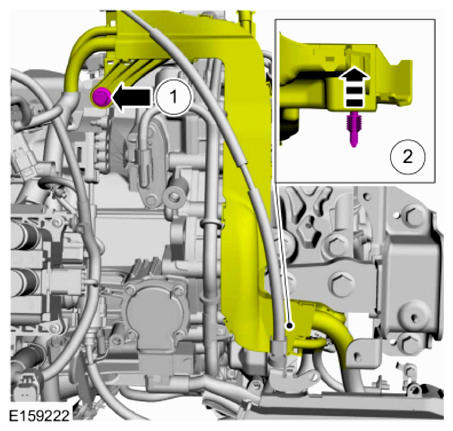

  5. G09551442

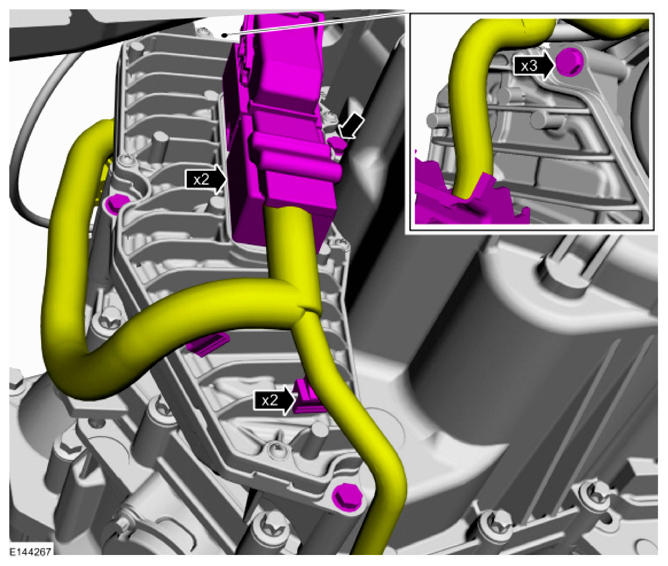

  6. NOTE: Make sure that the terminals or pins/sockets of the transmission control module (TCM) and the TCM electrical connector are not bent or damaged.
    G09551443

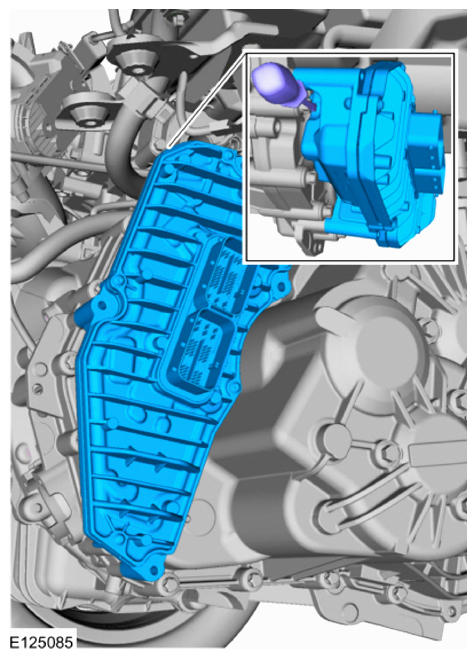

  7. G09551444

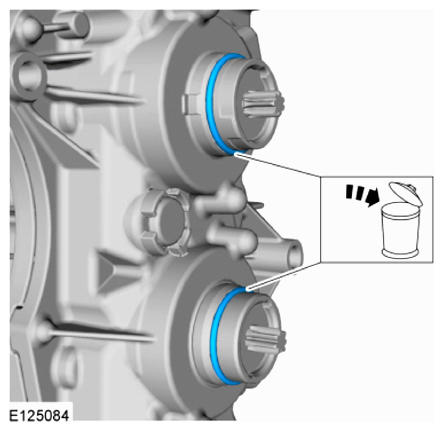

  8. G09551445

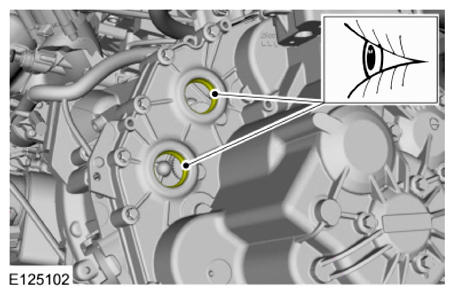

  9. NOTE: Make sure that the mating faces are clean and free of corrosion and foreign material.
    G09551446
