Windshield Washer Fluid Level Sensor: Removal

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Hood removed in this procedure for clarity.

1.

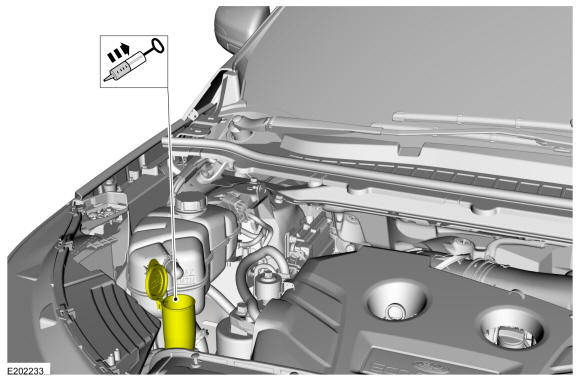

Siphon the windshield washer fluid out.
Use the General Equipment: Fluid Suction Gun

Use the General Equipment: Fluid Container

Courtesy of FORD MOTOR COMPANY

2.

Remove the RH fender splash shield. Refer to: Fender Splash Shield .

3.

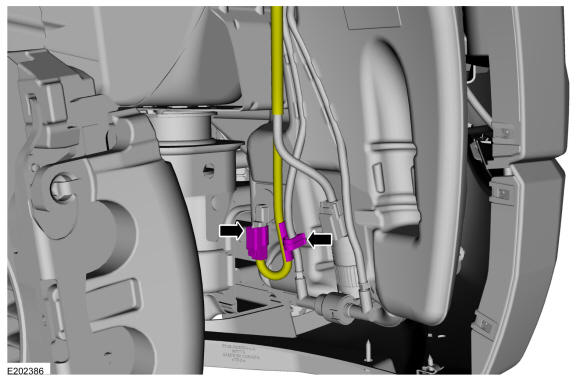

Detach the wire harness retainer and disconnect the level sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Be prepared to collect escaping fluid.

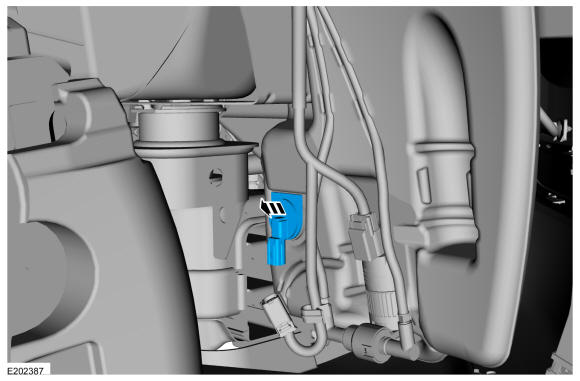

Remove the fluid level sensor.

Use the General Equipment: Fluid Container

Courtesy of FORD MOTOR COMPANY
