Fuel Level Sensor: Installation

All Vehicles

1. NOTE: Make sure to install a new fuel level sensor O-ring seal.

   To install, reverse the removal procedure.

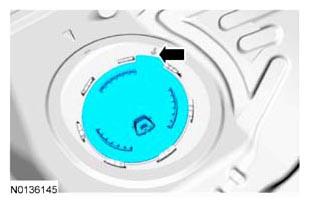

   • Make sure the alignment arrows on the fuel level sensor and the fuel tank meet before tightening the fuel level sensor lock ring.
   • Tighten the fuel level sensor lock ring until it meets the stop tabs on the fuel tank.

   Vehicles equipped with Police Package

2. Hand tighten only.
3. Tighten to 55Nm (41 lb-ft).

   All Vehicles

4. Install the rear seat lower cushion. For additional information, refer to SEATING .
5. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
