Powertrain Control Module (PCM): Installation
- To install, reverse the removal procedure.

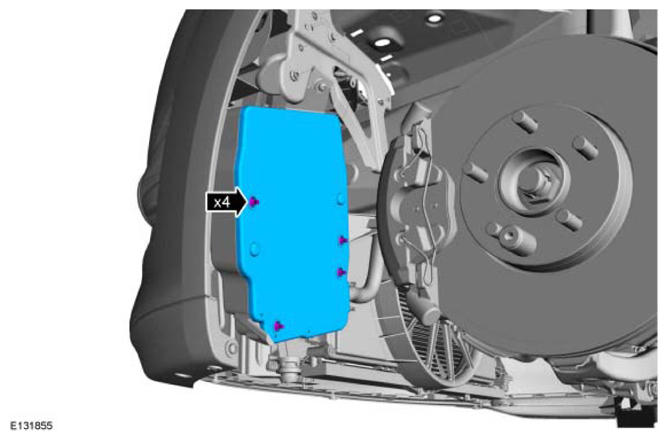

Vehicles with PCM security shield
- Tighten the shear bolt until the head is sheared off.
All vehicles
-
NOTE: This step is only necessary when installing a new component.
Upload the module information from the diagnostic tool to the module using the Programmable Modules Installation routine.
Use the General Equipment: Ford Diagnostic Equipment
