Quick Release Coupling: Connect

1.

Inspect and clean both quick coupling ends.

GFD13472

Courtesy of FORD MOTOR COMPANY

2.

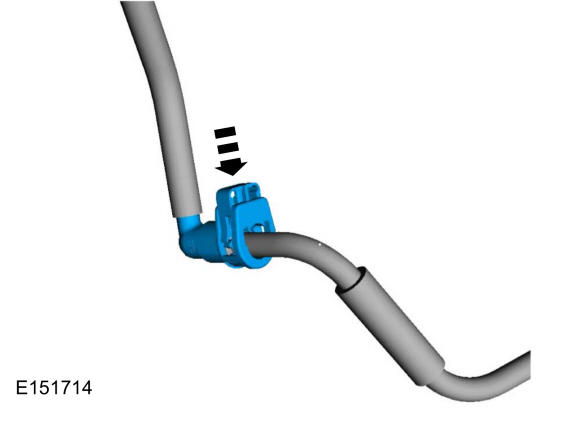

NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

Press the retainer clip into the quick connect coupling body until flush and the tabs are locked in place.

GFD13473

Courtesy of FORD MOTOR COMPANY

3.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Plug-In Hybrid Electric Vehicle (PHEV) .

GFD13476

Courtesy of FORD MOTOR COMPANY

GFD13477

Courtesy of FORD MOTOR COMPANY

3.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Plug-In Hybrid Electric Vehicle (PHEV) .

GFD13479

Courtesy of FORD MOTOR COMPANY

GFD13480

Courtesy of FORD MOTOR COMPANY

3.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Plug-In Hybrid Electric Vehicle (PHEV) .

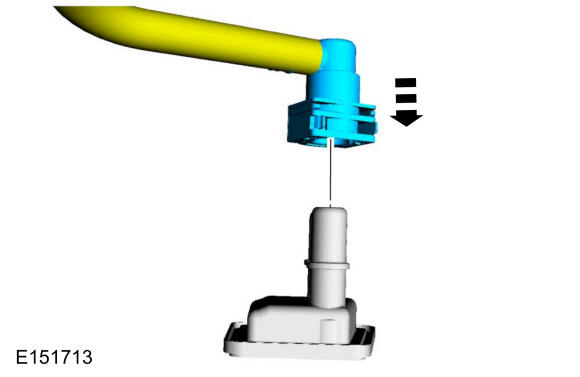

GFD13483

Courtesy of FORD MOTOR COMPANY

2.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Plug-In Hybrid Electric Vehicle (PHEV) .
