Instrument Panel - Exploded View

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

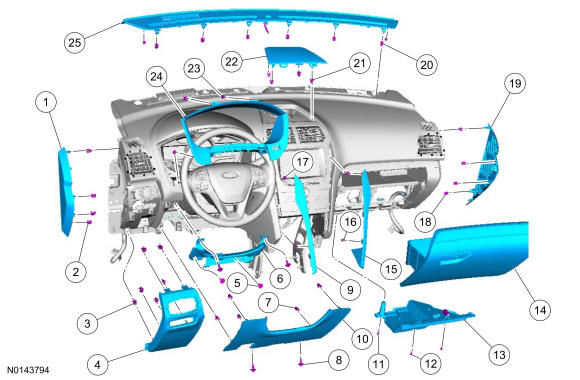

GFD37661Courtesy of FORD MOTOR COMPANY
Item Service Part Number Description Torque Material Name Notes
1 7804480 LH instrument panel side trim panel - - -
2 W790172 LH instrument panel side trim panel clip (4 required) - - -
3 W705289 Lower LH instrument panel trim panel clip (6 required) - - -
4 7804338 Lower LH instrument panel trim panel - - -
5 N807316 Steering column cover assembly screw (4 required) 5 Nm (44 lb-in) - -
6 78017A26 Steering column cover assembly - - -
7 W705289 Steering column cover trim panel clip (4 required) - - -
8 W707628 Steering column cover trim panel screw (2 required) 1.9 Nm (17 lb-in) - -
9 78061A17 LH finish panel - - -
10 7804459 Steering column cover trim panel - - -
11 W707607 Instrument panel insulator screw (1 required) 2.5 Nm (22 lb-in) - -
12 W707628 Instrument panel insulator screw (2 required) 2.5 Nm (22 lb-in) - -
13 78046A24 Instrument panel insulator - - -
14 7806024 Glove compartment - - -
15 78061A16 RH finish panel - - -
16 W705289 RH finish panel clip (4 required) - - -
17 W705289 LH finish panel clip (4 required) - - -
18 W790172 RH instrument panel side trim panel clip (4 required) - - -
19 7804481 RH Instrument panel side trim panel - - -
20 W790172 Defroster grille clip (6 required) - - -
21 W790172 Speaker grille clip (4 required) - - -
22 18978 Speaker grille - - -
23 78044D70 Instrument cluster finish panel - - -
24 W705289 Instrument cluster finish panel clips - - -
25 78044E82 Defroster grille - - -

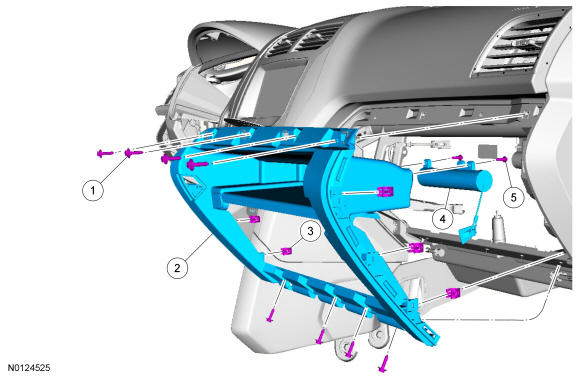

GFD37662Courtesy of FORD MOTOR COMPANY
Item Service Part Number Description Torque Material Name Notes
1 W707628 Glove compartment close out panel screw (8 required) 1.9 Nm (17 lb-in) - -
2 7804338 Glove compartment close out panel - - -
3 W790172 Glove compartment close out panel clip - - -
4 7806200 Glove compartment dampener - - -
5 W506824 Glove compartment dampener screw (2 required) 0.8 Nm (7 lb-in) - -

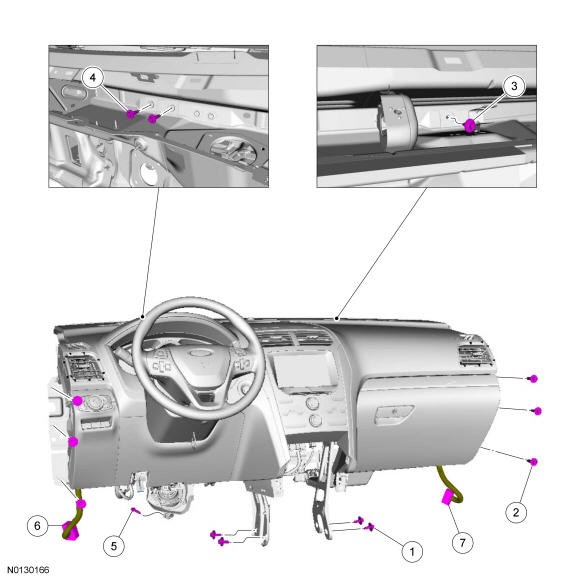

GFD37663Courtesy of FORD MOTOR COMPANY
Item Service Part Number Description Torque Material Name Notes
1 W709268 Instrument panel-to-floor bolt (4 required) 25 Nm (18 lb-ft) - -
2 W710259 Instrument panel-to-body bolt (6 required) 40 Nm (30 lb-ft) - -
3 W709178 RH instrument panel-to-front of dash bolt 25 Nm (18 lb-ft) - -
4 W709178 LH instrument panel-to-front of dash bolt (2 required) 25 Nm (18 lb-ft) - -
5 W712961 Steering column shaft-to-steering column bolt 23 Nm (17 lb-ft) - -
6 14401 RH electrical connector - - -
7 14401 LH electrical connector - - -

  1. 1.

    For additional information, refer to the appropriate procedures in this service information.
